Nobody
18 Nov 2020, 15:43
( Updated at: 21 Dec 2023, 09:22 )
RE:
PanagiotisCharalampous said:
Hi Nobody,
I guess that the problem is here

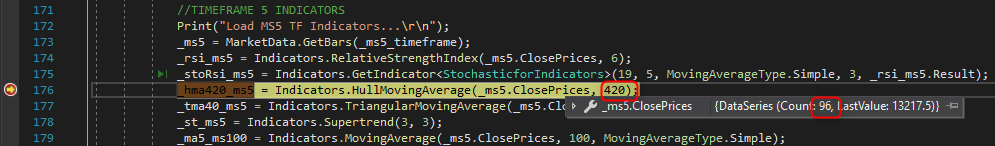

If you notice the series have only 96 bars but your are looking for a 420 moving average. You should make sure that you have at least as much bars as the moving average period else load more using LoadMoreHistory() method. Let me know if this resolves the problem.
Best Regards,
Panagiotis
...i am so...Stupid ! ;( thank you very much Panagiotis....i didn't think to check this ! solved !
@Nobody
Nobody
18 Nov 2020, 12:57
( Updated at: 21 Dec 2023, 09:22 )
RE: RE:
Panagiotis,

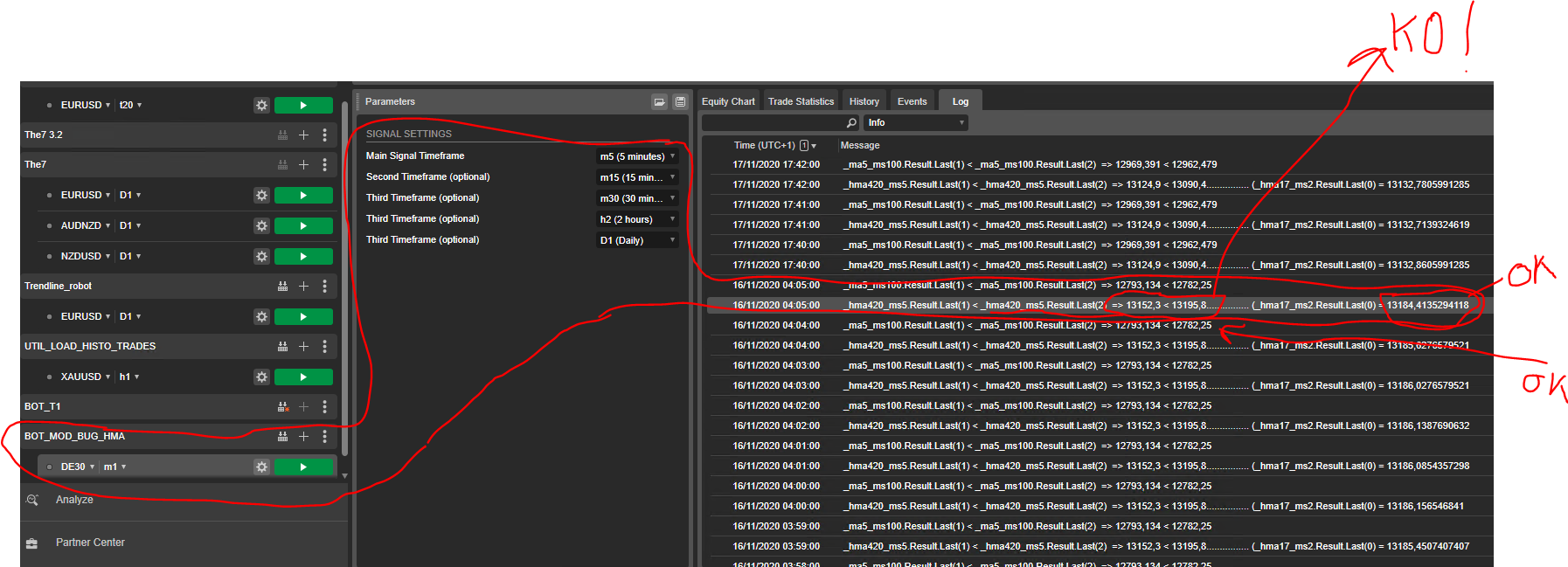

here a simpler code that reproduce this issue... as you can see on printscreens : 2h HMA typical price 420 peiod in cbot = 13152 and for same parameters on chart 12.509
2h SMA 100 close is equal on chart and cbot as HMA typical price 17 periods 5mn...unbelievable !
using System;
using System.Linq;
using cAlgo.API;
using cAlgo.API.Indicators;
using cAlgo.API.Internals;
using cAlgo.Indicators;
using System.Collections.Generic;
using System.Web.Script.Serialization;
// Add System.Web.Extension reference
using Microsoft.CSharp.RuntimeBinder;
// Add Microsoft.CSharp reference
using System.Dynamic;
using System.Globalization;
namespace cAlgo
{
[Robot(AccessRights = AccessRights.FullAccess, TimeZone = TimeZones.WEuropeStandardTime)]
//TimeZone = TimeZones.WEuropeStandardTime,
public class BOT_MOD : Robot
{
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//
// PARAMETERS INITIALIZATION
//
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
public enum TradeTypeFilter
{
No,
Buy,
Sell
}
//SIGNAL SETTINGS
[Parameter("Main Signal Timeframe", Group = "SIGNAL SETTINGS")]
public TimeFrame _ms2_timeframe { get; set; }
//TIME FRAME 3
[Parameter("Second Timeframe (optional)", Group = "SIGNAL SETTINGS")]
public TimeFrame _ms3_timeframe { get; set; }
//TIME FRAME 4
[Parameter("Third Timeframe (optional)", Group = "SIGNAL SETTINGS")]
public TimeFrame _ms4_timeframe { get; set; }
//TIME FRAME 5
[Parameter("Third Timeframe (optional)", Group = "SIGNAL SETTINGS")]
public TimeFrame _ms5_timeframe { get; set; }
//TIME FRAME 6
[Parameter("Third Timeframe (optional)", Group = "SIGNAL SETTINGS")]
public TimeFrame _ms6_timeframe { get; set; }
//MACD PARAMETERS
public int _macd_long_cycle = 26;
public int _macd_short_cycle = 12;
public int _macd_period = 9;
//STOCHASTIC PARAMETERS
public int _sto_K_Periods = 8;
public int _sto_D_Periods = 3;
public int _sto_K_Slowing = 3;
//MA PARAMETERS
public MovingAverageType _MA_Type = MovingAverageType.Simple;
//BOT TIME FRAME INDICATORS (1mn)
private int _ms_index = 0;
private Bars _ms;
private BollingerBands _boll;
private MacdCrossOver _macd;
private RelativeStrengthIndex _rsi;
//UT2 TIMEFRAME INDICATORS (5mn)
private int _ms2_index = 0;
private Bars _ms2;
private BollingerBands _boll_ms2;
private MacdCrossOver _macd_ms2;
private RelativeStrengthIndex _rsi_ms2;
private MovingAverage _ma7_ms2, _ma20_ms2, _ma50_ms2, _ma100_ms2;
private HullMovingAverage _hma17_ms2;
private StochasticforIndicators _stoRsi_ms2;
//UT3 TIMEFRAME INDICATORS (15mn)
private int _ms3_index = 0;
private Bars _ms3;
private BollingerBands _boll_ms3;
private MacdCrossOver _macd_ms3;
private RelativeStrengthIndex _rsi_ms3;
private MovingAverage _ma6_ms3, _ma8_ms3;
private HullMovingAverage _hma20_ms3;
//UT4 TIMEFRAME INDICATORS (30mn)
private int _ms4_index = 0;
private Bars _ms4;
private MovingAverage _ma3_ms4;
private MovingAverage _ma6_ms4;
//UT5 TIMEFRAME INDICATORS (2h)
private int _ms5_index = 0;
private Bars _ms5;
private RelativeStrengthIndex _rsi_ms5;
private StochasticforIndicators _stoRsi_ms5;
private HullMovingAverage _hma420_ms5;
private TriangularMovingAverage _tma40_ms5;
private Supertrend _st_ms5;
private MovingAverage _ma5_ms100;
//UT6 TIMEFRAME INDICATORS (Daily)
private int _ms6_index = 0;
private Bars _ms6;
//BOT NAME
public string _cBotLabel = "BOT_MOD";
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//
// OnStart METHOD
//
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
protected override void OnStart()
{
//Set the offset of the current bar
_ms_index = Bars.ClosePrices.Count - 1;
//ROBOT DEFAULT TIMEFRAME INDICATORS
Print("Load Main TF Indicators...\r\n");
_ms = MarketData.GetBars(TimeFrame);
_boll = Indicators.BollingerBands(_ms.ClosePrices, 20, 2, _MA_Type);
_macd = Indicators.MacdCrossOver(_macd_long_cycle, _macd_short_cycle, _macd_period);
_rsi = Indicators.RelativeStrengthIndex(_ms.ClosePrices, 14);
//SIGNAL TIMEFRAME INDICATORS
Print("Load MS2 TF Indicators...\r\n");
_ms2 = MarketData.GetBars(_ms2_timeframe);
_boll_ms2 = Indicators.BollingerBands(_ms2.ClosePrices, 20, 2, _MA_Type);
_macd_ms2 = Indicators.MacdCrossOver(_ms2.ClosePrices, _macd_long_cycle, _macd_short_cycle, _macd_period);
_rsi_ms2 = Indicators.RelativeStrengthIndex(_ms2.ClosePrices, 10);
_ma7_ms2 = Indicators.MovingAverage(_ms2.ClosePrices, 7, MovingAverageType.Simple);
_ma20_ms2 = Indicators.MovingAverage(_ms2.ClosePrices, 23, MovingAverageType.Simple);
_ma50_ms2 = Indicators.MovingAverage(_ms2.ClosePrices, 50, MovingAverageType.Simple);
_ma100_ms2 = Indicators.MovingAverage(_ms2.ClosePrices, 100, MovingAverageType.Simple);
_hma17_ms2 = Indicators.HullMovingAverage(_ms2.TypicalPrices, 17);
_stoRsi_ms2 = Indicators.GetIndicator<StochasticforIndicators>(12, 3, MovingAverageType.Simple, 7, _rsi_ms2.Result);
// TIMEFRAME 3 INDICATORS
Print("Load MS3 TF Indicators...\r\n");
_ms3 = MarketData.GetBars(_ms3_timeframe);
_boll_ms3 = Indicators.BollingerBands(_ms3.ClosePrices, 20, 2, _MA_Type);
_macd_ms3 = Indicators.MacdCrossOver(_ms3.ClosePrices, _macd_long_cycle, _macd_short_cycle, _macd_period);
_rsi_ms3 = Indicators.RelativeStrengthIndex(_ms3.ClosePrices, 14);
_ma6_ms3 = Indicators.MovingAverage(_ms3.TypicalPrices, 6, MovingAverageType.Simple);
_ma8_ms3 = Indicators.MovingAverage(_ms3.TypicalPrices, 8, MovingAverageType.Simple);
_hma20_ms3 = Indicators.HullMovingAverage(_ms3.TypicalPrices, 20);
// TIMEFRAME 4 INDICATORS
Print("Load MS4 TF Indicators...\r\n");
_ms4 = MarketData.GetBars(_ms4_timeframe);
_ma3_ms4 = Indicators.MovingAverage(_ms4.TypicalPrices, 3, MovingAverageType.Simple);
_ma6_ms4 = Indicators.MovingAverage(_ms4.TypicalPrices, 6, MovingAverageType.Simple);
//TIMEFRAME 5 INDICATORS
Print("Load MS5 TF Indicators...\r\n");
_ms5 = MarketData.GetBars(_ms5_timeframe);
_rsi_ms5 = Indicators.RelativeStrengthIndex(_ms5.ClosePrices, 6);
_stoRsi_ms5 = Indicators.GetIndicator<StochasticforIndicators>(19, 5, MovingAverageType.Simple, 3, _rsi_ms5.Result);
_hma420_ms5 = Indicators.HullMovingAverage(_ms5.ClosePrices, 420);
_tma40_ms5 = Indicators.TriangularMovingAverage(_ms5.ClosePrices, 40);
_st_ms5 = Indicators.Supertrend(3, 3);
_ma5_ms100 = Indicators.MovingAverage(_ms5.ClosePrices, 100, MovingAverageType.Simple);
//TIMEFRAME 6 INDICATORS
Print("Load MS6 TF Indicators...\r\n");
_ms6 = MarketData.GetBars(_ms6_timeframe);
}
protected override void OnTick()
{
}
protected override void OnBar()
{
//Refresh the offsets of the current bar
_ms_index = Bars.ClosePrices.Count - 1;
_ms2_index = _ms2.ClosePrices.Count - 1;
_ms3_index = _ms3.ClosePrices.Count - 1;
_ms4_index = _ms4.ClosePrices.Count - 1;
_ms5_index = _ms5.ClosePrices.Count - 1;
_ms6_index = _ms6.ClosePrices.Count - 1;
//Check the famous signal
CheckSignal();
}
protected override void OnStop()
{
}
public void OnPositionOpened(PositionOpenedEventArgs obj)
{
if (Object.ReferenceEquals(null, obj.Position))
Print("WOW ! FATAL ERROR !");
}
private void CheckSignal()
{
//Check if opened conditions needs to be closed (and close them)
CheckConditionsToClosePositions();
//Check Buy signal
if (IsSignalBuy())
{
double sl_dist_pips = (Symbol.Ask * 0.015) / Symbol.PipSize;
double tp_dist_pips = (Symbol.Ask * 0.016) / Symbol.PipSize;
ExecuteMarketOrder(TradeType.Buy, SymbolName, 1, _cBotLabel, Math.Round(sl_dist_pips, 1), Math.Round(tp_dist_pips, 1), "my_comment");
}
}
private bool IsSignalBuy()
{
int opened_pos_buy = 0;
foreach (Position position in Positions.FindAll(_cBotLabel, SymbolName))
{
if (position.TradeType == TradeType.Buy)
opened_pos_buy += 1;
}
if (opened_pos_buy > 0)
return false;
//UT2H : C1 = MMHull 2h doit être ascendante
//if (_hma420_ms5.Result.Last(1) < _hma420_ms5.Result.Last(2))
if (_ma5_ms100.Result.Last(1) < _ma5_ms100.Result.Last(2))
return false;
//UT2H : C11 = MM40 triangulaire UT2h doit être ascendnate
if (_tma40_ms5.Result.Last(1) < _tma40_ms5.Result.Last(2))
return false;
//UT2H : C13 = K Sto RSI UT2h doit être > D
if (_stoRsi_ms5.KLine.Last(1) < _stoRsi_ms5.DLine.Last(1))
return false;
//UT2H :C3 = la clôture de la bougie précédente doit être supérieur à la valeur du SuperTrend[3,3] UT2h en cours
if (_ms5.ClosePrices.Last(1) < Math.Max(_st_ms5.DownTrend.Last(1), _st_ms5.UpTrend.Last(1)))
return false;
//UT30 : C15 = la MM 3 périodes (typicalprice) UT30 doit être > MA 6 périodes(typicalprice)
if (_ma3_ms4.Result.Last(1) < _ma6_ms4.Result.Last(1))
return false;
//UT15 : C7 = la MM 6 périodes UT15 (sur typical price) doit être au dessus de la MM 8 périodes UT15 (sur typical price)
if (_ma6_ms3.Result.Last(1) < _ma8_ms3.Result.Last(1))
return false;
//UT15 : C9 = la MM 20 périodes de Hull UT15 est ascendante
if (_hma20_ms3.Result.Last(1) < _hma20_ms3.Result.Last(2))
return false;
//UT5 : La distance entre le plus haut du jour et le plus haut de la bougie Ut5mn actuelle soit inférieur à 140 points
if (_ms6.HighPrices.Last(0) - _ms2.HighPrices.Last(0) > 140)
return false;
//UT5 : C5 = en 5mn la MM de Hull 17 périodes est entrain de se retourner à la hausse (avec la bougie en cours)
if (!(_hma17_ms2.Result.Last(0) > _hma17_ms2.Result.Last(1) && _hma17_ms2.Result.Last(1) < _hma17_ms2.Result.Last(2)))
return false;
//UT5 : C23 = Stochastic RSI 10 périodes lissé UT5mn à l’achat (K>D)
if (!(_stoRsi_ms2.KLine.Last(0) < _stoRsi_ms2.DLine.Last(0)))
return false;
return true;
}
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//
// CheckConditionsToClosePositions METHOD
//
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
private void CheckConditionsToClosePositions()
{
int opened_pos_buy = 0;
Position last_pos_buy = null;
foreach (Position position in Positions.FindAll(_cBotLabel, SymbolName))
{
if (position.TradeType == TradeType.Buy)
{
opened_pos_buy += 1;
last_pos_buy = position;
}
}
if (opened_pos_buy < 1)
return;
//Exit in profit (C6 & C8)
if (_hma17_ms2.Result.Last(0) < _hma17_ms2.Result.Last(1) && _hma17_ms2.Result.Last(1) > _hma17_ms2.Result.Last(2) && _ma6_ms3.Result.Last(1) < _ma8_ms3.Result.Last(1) && Symbol.Bid > last_pos_buy.EntryPrice)
{
foreach (Position position in Positions.FindAll(_cBotLabel, SymbolName, TradeType.Buy))
ClosePosition(position);
}
//Exit at loss (C6 & C2)
Print("_hma420_ms5.Result.Last(1) < _hma420_ms5.Result.Last(2) => " + _hma420_ms5.Result.Last(1) + " < " + _hma420_ms5.Result.Last(2) + "................ (_hma17_ms2.Result.Last(0) = " + _hma17_ms2.Result.Last(0));
Print("_ma5_ms100.Result.Last(1) < _ma5_ms100.Result.Last(2) => " + _ma5_ms100.Result.Last(1) + " < " + _ma5_ms100.Result.Last(2));
//if (_hma17_ms2.Result.Last(0) < _hma17_ms2.Result.Last(1) && _hma17_ms2.Result.Last(1) > _hma17_ms2.Result.Last(2) && _hma420_ms5.Result.Last(1) < _hma420_ms5.Result.Last(2) && Symbol.Bid < _pm._last_pos_buy.EntryPrice)
if (_hma17_ms2.Result.Last(0) < _hma17_ms2.Result.Last(1) && _hma17_ms2.Result.Last(1) > _hma17_ms2.Result.Last(2) && _ma5_ms100.Result.Last(1) < _ma5_ms100.Result.Last(2) && Symbol.Bid < last_pos_buy.EntryPrice)
{
foreach (Position position in Positions.FindAll(_cBotLabel, SymbolName, TradeType.Buy))
ClosePosition(position);
}
}
}
}
@Nobody
Nobody
18 Nov 2020, 12:25
RE:
PanagiotisCharalampous said:
Hi Nobody,
Can you provide a simpler cBot code without dependencies that we can use to reproduce this behavior?
Best Regards,
Panagiotis
Hi Pangiotis, thanks, ok let me time to do that...
I just replaced HMA typical by a SMA100 for a test and no problem with it...and the same HMA (on typical price) seems to be OK too on the M5 timeframe....very very strange...
I come back with simpler code soon
@Nobody
Nobody
16 Nov 2020, 15:38
RE: RE:
Nobody said:
PanagiotisCharalampous said:
Hi Nobody,

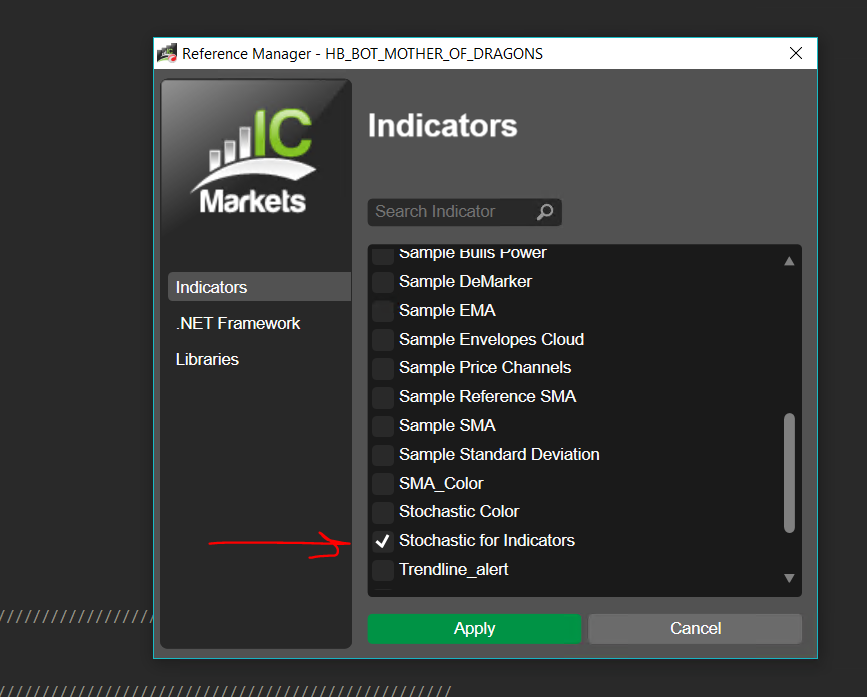

If you expect it to appear in cTrader Code Editor, it won't. Try using Visual Studio.
Best Regards,
Panagiotis
last thing :

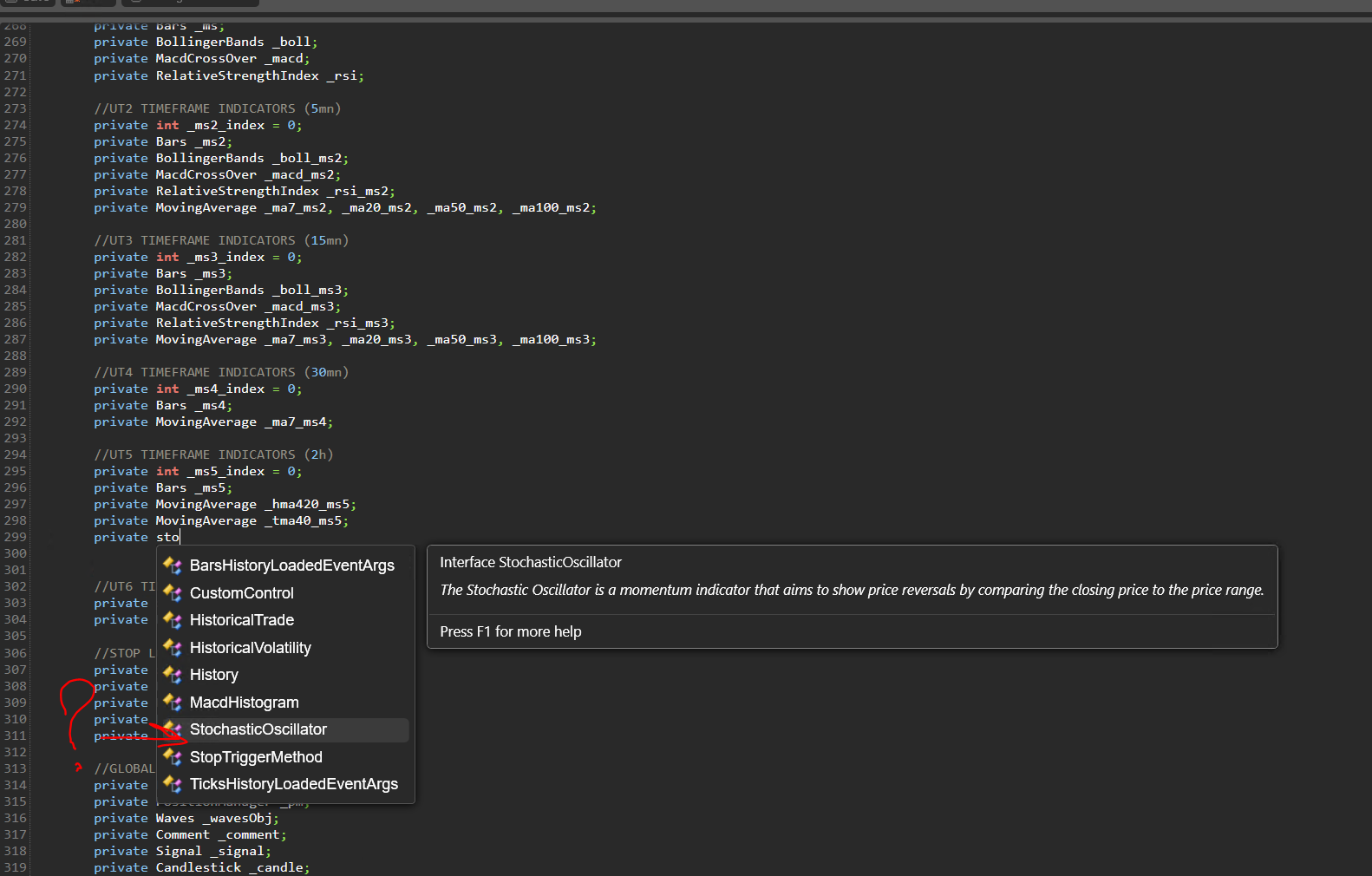

i try to use my custom indicator like this :
declaration in the class :
[Parameter("Third Timeframe (optional)", Group = "SIGNAL SETTINGS")]
public TimeFrame _ms5_timeframe { get; set; }private RelativeStrengthIndex _rsi_ms5;
private StochasticforIndicators _stoRsi_ms5;
and next in functions :
_rsi_ms5 = Indicators.RelativeStrengthIndex(_ms5.ClosePrices, 6);
_stoRsi_ms5 = Indicators.StochasticforIndicators(9, 3, MovingAverageType.Simple, 9, _rsi_ms5.Result);
but i get a build error : Erro : "cAlgo.API.internals.IIndicatorsAccessor' dos not contains definition for "StochasticforIndicators" and no extension method 'StocasticforIndicators' accepts for first argumet type 'cAlgo.API.Internals.IIndicatorsAccessor' found (a using directive or assembly reference missing ?)
replaced last line by this one : _stoRsi_ms5 = Indicators.GetIndicator<StochasticforIndicators>(9, 3, MovingAverageType.Simple, 9, _rsi_ms5.Result);
and now it builds successfully, could you just confirm it is the good way to work please ?
thank you !
@Nobody
Nobody
16 Nov 2020, 15:28
RE:
PanagiotisCharalampous said:
Hi Nobody,
If you expect it to appear in cTrader Code Editor, it won't. Try using Visual Studio.
Best Regards,
Panagiotis
last thing :
i try to use my custom indicator like this :
declaration in the class :
[Parameter("Third Timeframe (optional)", Group = "SIGNAL SETTINGS")]
public TimeFrame _ms5_timeframe { get; set; }
private RelativeStrengthIndex _rsi_ms5;
private StochasticforIndicators _stoRsi_ms5;
and next in functions :
_rsi_ms5 = Indicators.RelativeStrengthIndex(_ms5.ClosePrices, 6);
_stoRsi_ms5 = Indicators.StochasticforIndicators(9, 3, MovingAverageType.Simple, 9, _rsi_ms5.Result);
but i get a build error : Erro : "cAlgo.API.internals.IIndicatorsAccessor' dos not contains definition for "StochasticforIndicators" and no extension method 'StocasticforIndicators' accepts for first argumet type 'cAlgo.API.Internals.IIndicatorsAccessor' found (a using directive or assembly reference missing ?)
@Nobody
Nobody
16 Nov 2020, 14:45
( Updated at: 21 Dec 2023, 09:22 )
RE:
PanagiotisCharalampous said:
Hi Nobody,
I just tried this and seems to work fine for me
Can you confirm that the indicator builds successfully?
Best Regards,
Panagiotis
Hi Pangiotis,
yes it builds successfully, but in the bot it does not appears even if i add a reference to it via "Manage references" of the cbot options ...
@Nobody
Nobody
20 Oct 2020, 10:57
RE: RE:
genappsforex said:
maybe use the ms2 index? youre using the Bars index.
find the index corresponding with the Bars.OpenTimes[index] and you're OK
Thannk you Genappsforex, but it is exactly what i have done, it is the "GetIndexByExactTime" that was not the proper way, it is ok with GetIndexByTime() !
@Nobody
Nobody
20 Oct 2020, 10:54
RE:
PanagiotisCharalampous said:
Hi Nobody,
Try using GetIndexByTime() instead.
Best Regards,
Panagiotis
Thanks Panagiotis, it works fine !
@Nobody
Nobody
11 Feb 2020, 16:54
RE: RE:
TzvetomirTerziysky said:
Nobody said:
Hello,
when i run my cbot on backtest or live there is no problem, all run fine.
But when i run it on optimization, tests passes but there is no result found as shown on picture below...how is it possible ?
I have raised that yesterday:
The issue will appear at least when one uses multi timeframe. I am waiting for an update
OK thanks, but somebody of Spotware can confirm that issue will be solved soon please ? is this due to last update (cause multiple timeframe in optimization run well before) ?
@Nobody
Nobody
02 Sep 2016, 15:28
( Updated at: 21 Dec 2023, 09:20 )
RE:
Hello,
i tried to add the Tweetinvi package to calgo using nuget (by command line) but once package installed i do not see it in .net reference or library...
How do you use it ?
thanks in advance,
Alex
Paul_Hayes said:
Also you will what these references or get them from NuGet.
@Nobody
Nobody
14 Jan 2016, 18:53
RE: RE: Formatting proper CSV File for Backtesting and optimisation
This post was removed by moderator because it duplicates another post. /forum/calgo-support/7782
@Nobody
Nobody
11 Dec 2020, 10:15 ( Updated at: 11 Dec 2020, 10:22 )
RE:
PanagiotisCharalampous said:
Hi Pangiotis,
i just found error using logger, it occurs when SL (pips) too much near prices, crash disappears when i add this condition before sending order :
//Control SL value from actual price
if(tradetype ==TradeType.Buy && sl_pips > 0 && ((_ms.ClosePrices.Last(0)-sl_pips) > _robot.Symbol.Bid))
{
_log.Write("Buy Order rejected : SL over Bid price !");
return;
}
else if (tradetype ==TradeType.Sell && sl_pips > 0 && ((_ms.ClosePrices.Last(0)+sl_pips) > _robot.Symbol.Ask))
{
_log.Write("Sell Order rejected : SL under Ask price !");
return;
}
//Send order
TradeResult result;
result = _robot.ExecuteMarketOrder(tradetype, _robot.SymbolName, vol, _cBotLabel, sl_pips, tp_pips, my_comment);
Core should reject order in this context or recording SL with some value (0 ?) that won't make program crashed ...
Regards,
Alex
@Nobody
