Sunday dailyOpen is missing...

galafrin
31 Jan 2016, 21:58

​You may adjust  cTrader time shift  right bottom to have time separators coincide with date.

MaVe
31 Jan 2016, 22:19

• Time set at UTC +0
• Indicator  TimeZone = TimeZones.UTC

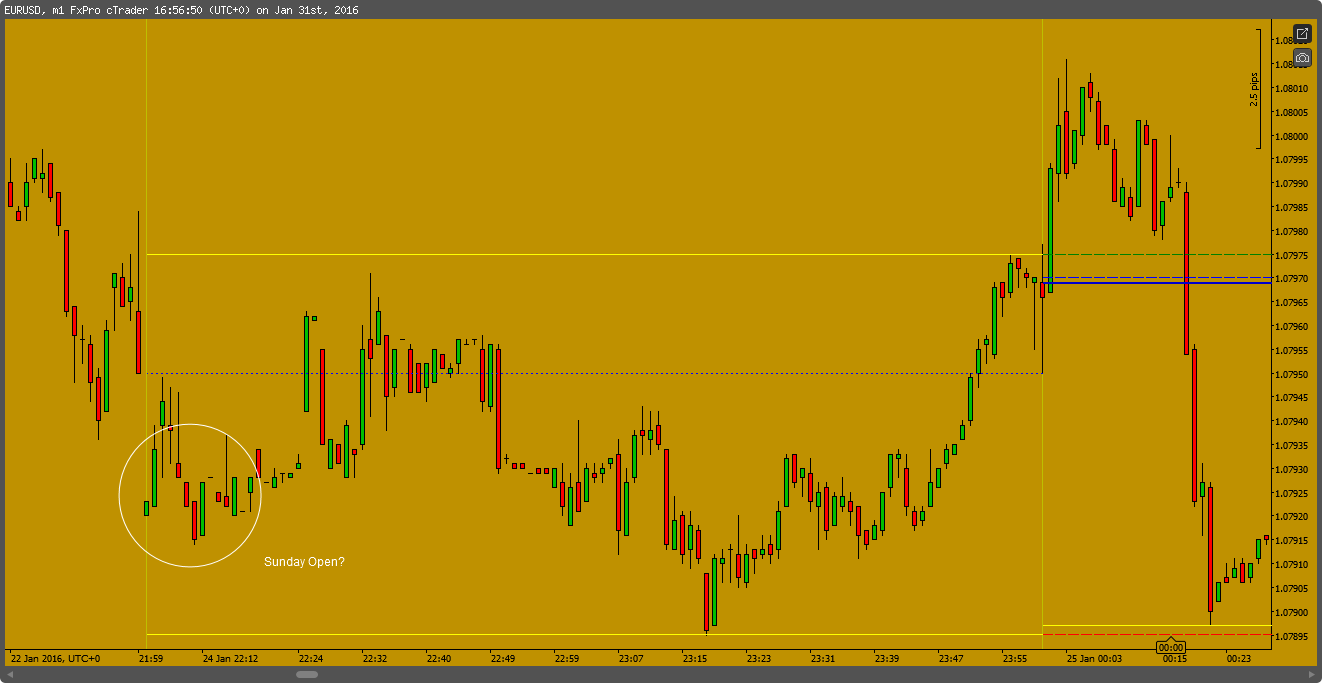

• First bar on sunday 22:05, second bar, 22:06, ... 22:07, ,...
• First bar on monday 00:00, second bar, 00:01, ... 00:02, ...

Time settings are correct.

My question is: what do I have to change at the code, to get it right?

MaVe
01 Feb 2016, 08:54

The problem is:

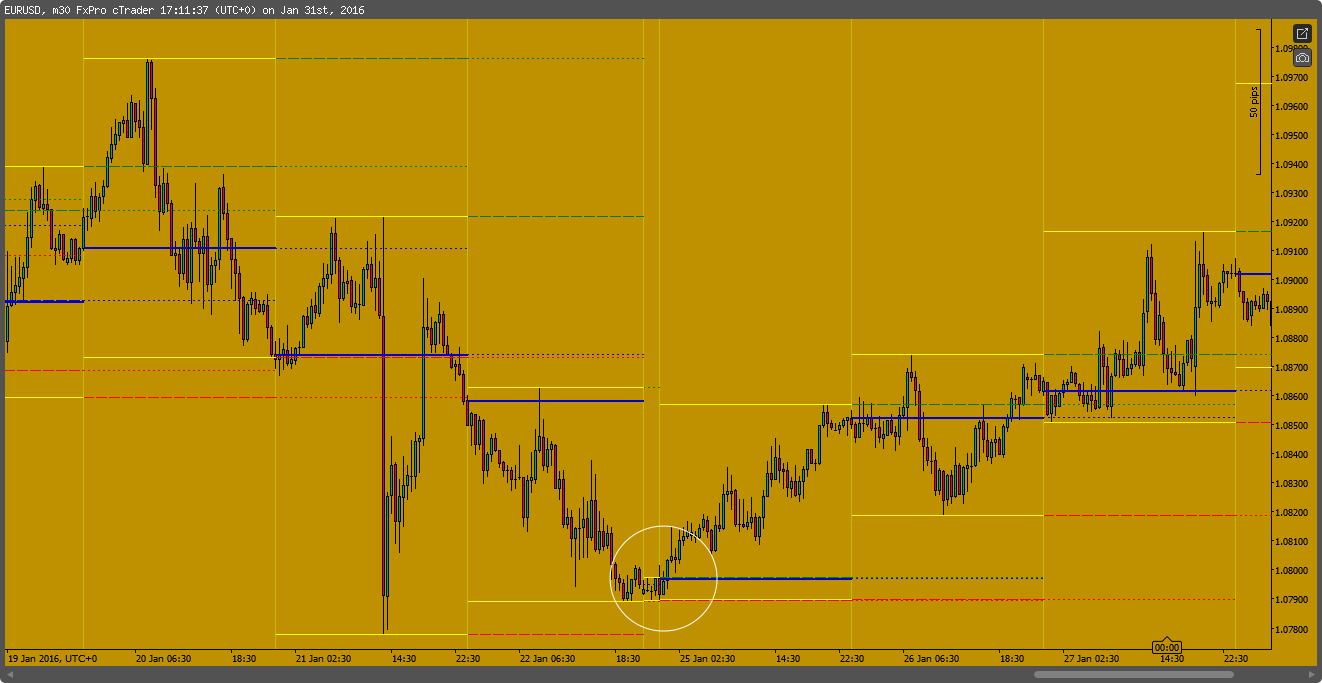

• at the Metals and Currencies, the dailyOpen is missing on Sunday
• at the Energies, the dailyOpen is missing on Monday

So it seems to me that the dailyOpen is skipping the first day of the week.

How do I correct that?

// This indicator displays the daily OHLC.
// The daily High/Low horizontal lines are extended two days into the future. (Colors: red and green.)
// The dailyClose is only on the next day visible (as the previousClose) and extended one extra day into the future. (Color: blue.)
// The dailyOpen for each day is a solid, fat line. (Color: mediumblue.)
//
// The logic of the LineStyle:
//
//               Daily:            solid  line
//               Previous(p):      ---- dashed line
//               prePrevious(pp):  .... dotted line
//
//
// Daily Result:                Occurred at:           Color:
//               Open --------- Today ---------------- MediumBlue(Fat)
//               High/Low ----- Today ---------------- Yellow
//               pHigh/pLow --- Yesterday ------------ Red/Green
//               ppHigh/ppLow - Day before Yesterday - Red/Green
//               pClose ------- Yesterday ------------ Blue
//               ppClose ------ Day before Yesterday - Blue
//
//
// It is possible to change: - Daily Open on/off
//                           - Daily Open color
//                           - Daily High/Low color
//
//               -- Free to use --
//                     MaVe
// ---- Version:  Sunday31Jan201
//
using System;
using cAlgo.API;
using cAlgo.API.Internals;
using cAlgo.API.Indicators;
using cAlgo.Indicators;

namespace cAlgo.Indicators
{
    [Indicator(IsOverlay = true, AutoRescale = false, TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
    public class MaVeTripleDailyOHLC : Indicator
    {
        [Parameter("Daily High/Low Color", DefaultValue = "Yellow")]
        public string DailyHighLowColor { get; set; }
        [Parameter("Show Daily Open", DefaultValue = false)]
        public bool ShowDailyOpen { get; set; }
        private Colors dailyHLcolor;
// ------------------------------------------------------
        protected override void Initialize()
        {
            Enum.TryParse(DailyHighLowColor, out dailyHLcolor);
        }
// ------------------------------------------------------
        public override void Calculate(int index)
        {
            DateTime today = MarketSeries.OpenTime[index].Date;
            DateTime today1 = today.AddDays(1);
            DateTime today2 = today.AddDays(2);
            DateTime today3 = today.AddDays(3);
            double high = MarketSeries.High.Last(0);
            double low = MarketSeries.Low.Last(0);
            double open = MarketSeries.Open[index + 1];
            double close = MarketSeries.Close[index];
            for (int i = MarketSeries.Close.Count - 1; i > 0; i--)
            {
                if (MarketSeries.OpenTime[i].Date < today)
                    break;
                high = Math.Max(high, MarketSeries.High[i]);
                low = Math.Min(low, MarketSeries.Low[i]);
            }
// ----- Triple DailyHighLow
            ChartObjects.DrawLine("High" + today, today, high, today1, high, dailyHLcolor, 1);
            ChartObjects.DrawLine("Low" + today, today, low, today1, low, dailyHLcolor, 1);
            ChartObjects.DrawText("High-text", "High", index, high, VerticalAlignment.Bottom, HorizontalAlignment.Right, dailyHLcolor);
            ChartObjects.DrawText("Low-Text", "Low", index, low, VerticalAlignment.Top, HorizontalAlignment.Right, dailyHLcolor);
            ChartObjects.DrawLine("pHigh" + today, today1, high, today2, high, Colors.Green, 1, LineStyle.Lines);
            ChartObjects.DrawLine("pLow" + today, today1, low, today2, low, Colors.Red, 1, LineStyle.Lines);
            ChartObjects.DrawLine("ppHigh" + today, today2, high, today3, high, Colors.Green, 1, LineStyle.DotsRare);
            ChartObjects.DrawLine("ppLow" + today, today2, low, today3, low, Colors.Red, 1, LineStyle.DotsRare);
// ----- PreviousClose
            ChartObjects.DrawLine("pClose" + today, today1, close, today2, close, Colors.Blue, 1, LineStyle.Lines);
            ChartObjects.DrawLine("ppClose" + today, today2, close, today3, close, Colors.Blue, 1, LineStyle.DotsRare);
// ----- DailyOpen
            if (!ShowDailyOpen)
                return;
            ChartObjects.DrawLine("Open" + today, today1, open, today2, open, Colors.MediumBlue, 2);
        }
    }
}

MaVe
02 Feb 2016, 16:50

Problem solved.

MarketSeries was the problem...

ctid253839
07 Feb 2017, 15:27

hi there mave, congratulation for your C# code. till now it is the best indicator i have found here;)

i m tring to add inside this code the daily pivot too, couse that one is a very important point.

hope this will not offend you. i m telling just to let you know and just to say i m using your code to learn;) my first steps, couse it is quet clear

are you learning coding in calgo?

i think you already are a coder, couse it is not easy, at least for me....but i m tring the same.

in the future i d like develping a cbot....working on my trading system....

so for now thanks!

mat

MaVe
07 Feb 2017, 17:18 ( Updated at: 15 Jan 2024, 14:51 )

Hi Matt,

You can find the latest update for this indicator there:

[/algos/indicators/show/1158]

It's free to use and you may adapt it to suit your own needs.
