spread indicator

Scott
07 Feb 2013, 20:20

RE: spread indicator

I use this one at the momment it almost in sink with the actual spread Tick Chart /algos/show/207

or you could use Lables for Charts /algos/show/195  just remove the infomation you dont want and set the indicator to false so that its not on your chart and in your way, I triying to work out how to calculate the pip differance between moving averages that will be printed using Lables.  But I can think of a few good thing that could also be added such as RSI.

rkokerti
08 Feb 2013, 12:09

RE: RE: spread indicator

Hi Scott,

Try this...

using System;
using cAlgo.API;
using cAlgo.API.Indicators;
using cAlgo.Indicators;

namespace cAlgo.Indicators
{
        [Indicator(IsOverlay = true)]
        public class _RI_WriteToChart_v2 : Indicator
        {
//-----------------------------------------------------------------
    [Parameter]
      public DataSeries Source { get; set; }

    [Parameter(DefaultValue = 14)]
      public int PeriodMA1 { get; set; }

    [Parameter(DefaultValue = 7)]
      public int PeriodMA2 { get; set; }
//-----------------------------------------------------------------
        private Position position;
    private SimpleMovingAverage sma1;
    private SimpleMovingAverage sma2;
    private double Dist;
//-----------------------------------------------------------------
        protected override void Initialize()
        {
        sma1 = Indicators.SimpleMovingAverage(Source,PeriodMA1);
        sma2 = Indicators.SimpleMovingAverage(Source,PeriodMA2);
        }
//-----------------------------------------------------------------

        public override void Calculate(int index)
        {

    string Dist = "    " + Math.Round((sma1.Result[index] - sma2.Result[index]) / Symbol.PipSize,0);

    ChartObjects.DrawText("Labels",
    "Dist:" + "\n"
    , StaticPosition.TopLeft, Colors.Yellow);

    ChartObjects.DrawText("Dist", Dist, StaticPosition.TopLeft, Colors.LightBlue);
    }
   }
}

Scott
08 Feb 2013, 23:40 ( Updated at: 21 Dec 2023, 09:20 )

RE: RE: RE: spread indicator

Thanks rkokerti

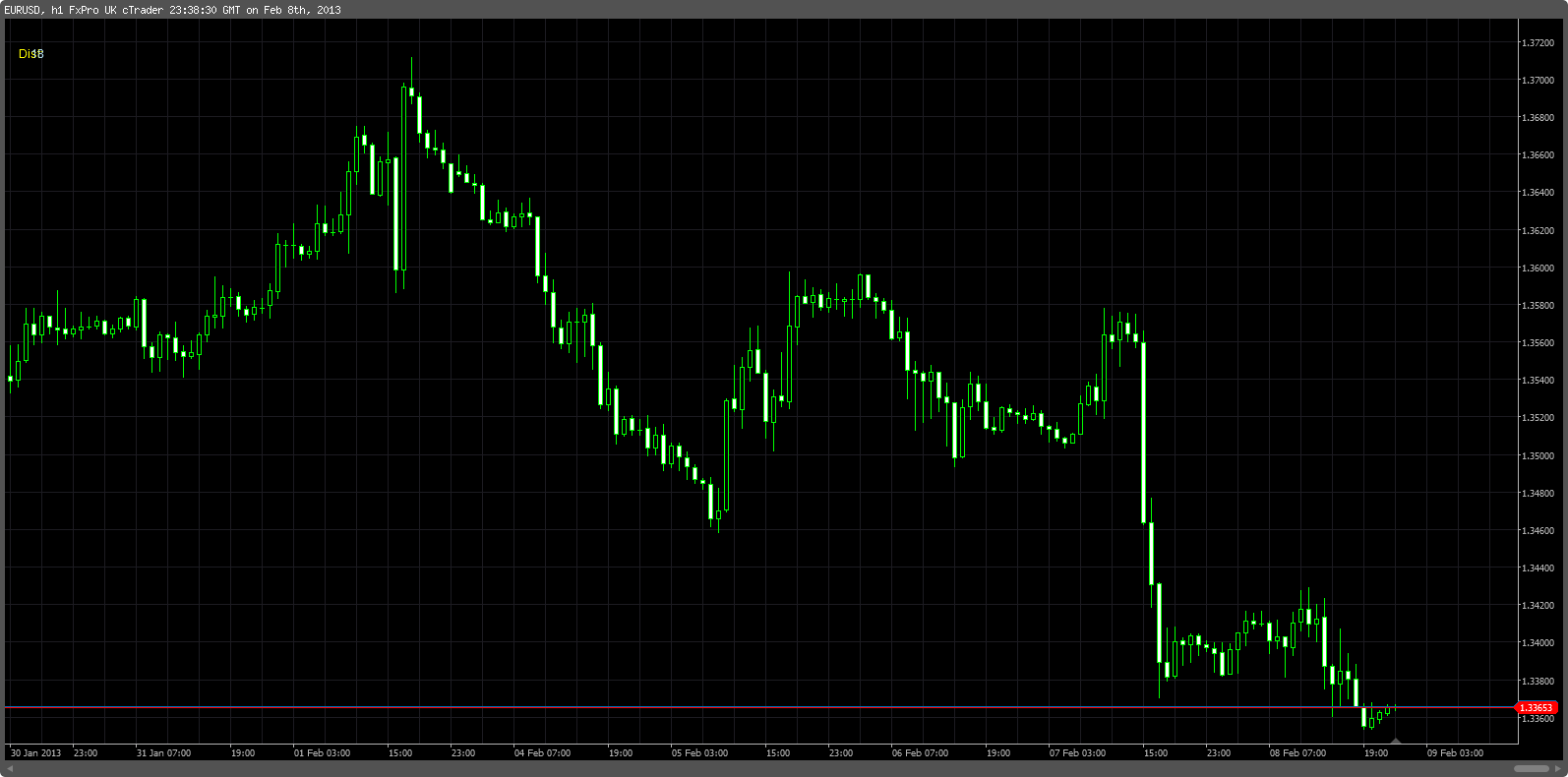

That exactly what I was after, there's one little problem the value is printing on top off the word Dist:

Thank again

rkokerti
09 Feb 2013, 13:28

Hi,

You need to press space button several times between "    ", or press tab button once in this row : string Dist = "    " + Math.Round((sma1.Result[index] - sma2.Result[index]) / Symbol.PipSize,0);

I hope it helps.

Scott
10 Feb 2013, 21:23

RE:

Thanks rkokerti, got it working now, I put in 10 spaces in : string Dist = "    " , the tab would move the pipsize to far away.
