lock buy sell button
15 Sep 2024, 06:23

Hello

I need to write indicator which is about if daily drawdown exceeds at certain level it automatically

lock buy and sell button of trading panel.

This is indicator which calculate daily drawdown:

using System;
using System.Linq;
using cAlgo.API;

namespace cAlgo.Indicators
{
    [Indicator(IsOverlay = true, TimeZone = TimeZones.IranStandardTime, AccessRights = AccessRights.None)]
    public class TodayProfitV2 : Indicator
    {
        [Parameter("SubWindows", DefaultValue = 0, MinValue = 0, Group = "Text")]
        public int SubWindows { get; set; }

        [Parameter("Font Size", DefaultValue = 12, Group = "Text")]
        public int FontSize { get; set; }

        [Parameter("Font Weight", DefaultValue = 11, Group = "Text")]
        public FontWeight FontWeight1 { get; set; }

        [Parameter("Shift", DefaultValue = "4 3 0 0", Group = "Text")]
        public string ShiftText { get; set; }

        [Parameter("Text Alignment", DefaultValue = TextAlignment.Left, Group = "Text")]
        public TextAlignment Alignment { get; set; }

        [Parameter("Today", DefaultValue = "White", Group = "Text Color")]
        public string TodayColor { get; set; }

        [Parameter("Positive Live", DefaultValue = "Green", Group = "Text Color")]
        public string PositiveColor { get; set; }

        [Parameter("Negative Live", DefaultValue = "Red", Group = "Text Color")]
        public string NegativeColor { get; set; }


        private TextBlock[] textblock = new TextBlock[3];
        private static bool Hide;
        private StackPanel ProfitPanel;
        private ToggleButton togglebutton;
        private bool One = false;
        private double StartingBalance = 0, DailyNetHistory = 0;


        protected override void Initialize()
        {
            var AllPanel = new DockPanel
            {
                VerticalAlignment = VerticalAlignment.Bottom,
                HorizontalAlignment = HorizontalAlignment.Right,
                BackgroundColor = Chart.ColorSettings.BackgroundColor
            };

            togglebutton = new ToggleButton
            {
                Text = "☰",
                Dock = Dock.Right,
                FontSize = 12,
                FontWeight = FontWeight.Normal,
                VerticalAlignment = VerticalAlignment.Bottom,
                Width = 15,
                Height = 15,
                Margin = 4,
                Padding = 1
            };
            togglebutton.Click += ToggleButton_Click;
            AllPanel.AddChild(togglebutton);

            ProfitPanel = new StackPanel
            {
                Margin = "0 0 2 5",
                Dock = Dock.Right
            };

            for (int i = 0; i < 3; i++)
            {
                textblock[i] = new TextBlock
                {
                    FontSize = FontSize,
                    FontWeight = FontWeight1,
                    TextAlignment = Alignment,
                    Margin = ShiftText
                };
                ProfitPanel.AddChild(textblock[i]);
            }
            textblock[2].ForegroundColor = TodayColor;
            AllPanel.AddChild(ProfitPanel);

            if (SubWindows > Chart.IndicatorAreas.Count)
                SubWindows = Chart.IndicatorAreas.Count;
            if (SubWindows > 0)
                Chart.IndicatorAreas[SubWindows - 1].AddControl(AllPanel);
            else
                Chart.AddControl(AllPanel);
            //DailyProfit
            if (History.Count > 0)
                DailyNetHistory = History.Where(x => x.ClosingTime.Date == Time.Date).Sum(x => x.NetProfit);
            var oldTrades = History.Where(x => x.ClosingTime.Date != Time.Date).OrderBy(x => x.ClosingTime).ToArray();
            if (oldTrades.Length > 0)
                StartingBalance = History.Where(x => x.ClosingTime.Date != Time.Date).OrderBy(x => x.ClosingTime).Last().Balance;

            if (Positions.Count > 0 && Hide == false)
                Timer.Start(TimeSpan.FromMilliseconds(500));
            else
                DailyProfit();

            if (Hide == true)
            {
                togglebutton.IsChecked = true;
                ProfitPanel.IsVisible = false;
            }

            Positions.Opened += Positions_Opened;
            Positions.Closed += Positions_Closed;
        }


        private void Positions_Opened(PositionOpenedEventArgs obj)
        {
            if (Positions.Count == 1 && Hide == false)
                Timer.Start(TimeSpan.FromMilliseconds(500));
        }


        private void Positions_Closed(PositionClosedEventArgs obj)
        {
            DailyNetHistory = History.Where(x => x.ClosingTime.Date == Time.Date).Sum(x => x.NetProfit);
            if (Positions.Count == 0 && Hide == false)
            {
                Timer.Stop();
                DailyProfit();
            }
        }


        protected override void OnTimer()
        {
            LiveProfit();
            DailyProfit();
        }


        private void ToggleButton_Click(ToggleButtonEventArgs obj)
        {
            if (ProfitPanel.IsVisible == false)
            {
                togglebutton.IsChecked = false;
                Hide = false;
                ProfitPanel.IsVisible = true;
                if (Positions.Count > 0)
                    Timer.Start(TimeSpan.FromMilliseconds(500));
            }

            else
            {
                togglebutton.IsChecked = true;
                Hide = true;
                ProfitPanel.IsVisible = false;
                if (Positions.Count > 0)
                    Timer.Stop();
            }
        }


        public override void Calculate(int index)
        {
        }


        private void DailyProfit()
        {
            //Calc daily Net Profit
            double DailyNetLive = Positions.Sum(p => p.NetProfit);
            var DailyNet = Math.Round(DailyNetLive + DailyNetHistory, 2);
            // get Starting Balance
            if (StartingBalance == 0)
                StartingBalance = Account.Balance - DailyNetHistory;
            //calc Daily Percent Profit
            var DailyPercent = Math.Round(DailyNet / StartingBalance * 100, 2);

            var Space = "";
            if (DailyNet >= 0)
                Space = " ";
            textblock[2].Text = string.Format("Today: $ {0}{1:#,##0.00}/ {0}{2:#,##0.00}%", Space, DailyNet, DailyPercent);


            if (One == false)
            {
                if (DailyNet == 0 && Positions.Count == 0 && ProfitPanel.IsVisible == true)
                {
                    togglebutton.IsChecked = true;
                    ProfitPanel.IsVisible = false;
                }

                else if ((DailyNet > 0 || Positions.Count > 0) && ProfitPanel.IsVisible == false && Hide == false)
                {
                    togglebutton.IsChecked = false;
                    ProfitPanel.IsVisible = true;
                }

                One = true;
            }
        }


        private void LiveProfit()
        {
            var netProfit = Account.UnrealizedNetProfit;
            var PercentProfit = Math.Round(netProfit / Account.Balance * 100, 2);

            var Space = "";
            var netclr = TodayColor;
            //negative
            if (netProfit < 0)
                netclr = NegativeColor;
            //positive && Zero
            else
            {
                netclr = PositiveColor;
                Space = " ";
            }

            textblock[0].Text = string.Format("Live: $ {0}{1:#,##0.00}/ {0}{2:#,##0.00}%", Space, netProfit, PercentProfit);
            textblock[0].ForegroundColor = netclr;

            textblock[1].Text = string.Format("Equity: $ {0:#,##0.00}", Account.Equity);
            textblock[1].ForegroundColor = netclr;
        }
    }
}

This is default trading panel code:

using System;
using System.Collections.Generic;
using cAlgo.API;
using cAlgo.API.Internals;

namespace cAlgo
{
    [Robot(TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
    public class SampleTradingPanel : Robot
    {
        [Parameter("Vertical Position", Group = "Panel alignment", DefaultValue = VerticalAlignment.Top)]
        public VerticalAlignment PanelVerticalAlignment { get; set; }

        [Parameter("Horizontal Position", Group = "Panel alignment", DefaultValue = HorizontalAlignment.Left)]
        public HorizontalAlignment PanelHorizontalAlignment { get; set; }

        [Parameter("Default Lots", Group = "Default trade parameters", DefaultValue = 0.01)]
        public double DefaultLots { get; set; }

        [Parameter("Default Take Profit (pips)", Group = "Default trade parameters", DefaultValue = 20)]
        public double DefaultTakeProfitPips { get; set; }

        [Parameter("Default Stop Loss (pips)", Group = "Default trade parameters", DefaultValue = 20)]
        public double DefaultStopLossPips { get; set; }

        protected override void OnStart()
        {
            var tradingPanel = new TradingPanel(this, Symbol, DefaultLots, DefaultStopLossPips, DefaultTakeProfitPips);

            var border = new Border
            {
                VerticalAlignment = PanelVerticalAlignment,
                HorizontalAlignment = PanelHorizontalAlignment,
                Style = Styles.CreatePanelBackgroundStyle(),
                Margin = "20 40 20 20",
                Width = 225,
                Child = tradingPanel
            };

            Chart.AddControl(border);
        }
    }

    public class TradingPanel : CustomControl
    {
        private const string LotsInputKey = "LotsKey";
        private const string TakeProfitInputKey = "TPKey";
        private const string StopLossInputKey = "SLKey";
        private readonly IDictionary<string, TextBox> _inputMap = new Dictionary<string, TextBox>();
        private readonly Robot _robot;
        private readonly Symbol _symbol;

        public TradingPanel(Robot robot, Symbol symbol, double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            _robot = robot;
            _symbol = symbol;
            AddChild(CreateTradingPanel(defaultLots, defaultStopLossPips, defaultTakeProfitPips));
        }

        private ControlBase CreateTradingPanel(double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            var mainPanel = new StackPanel();

            var header = CreateHeader();
            mainPanel.AddChild(header);

            var contentPanel = CreateContentPanel(defaultLots, defaultStopLossPips, defaultTakeProfitPips);
            mainPanel.AddChild(contentPanel);

            return mainPanel;
        }

        private ControlBase CreateHeader()
        {
            var headerBorder = new Border
            {
                BorderThickness = "0 0 0 1",
                Style = Styles.CreateCommonBorderStyle()
            };

            var header = new TextBlock
            {
                Text = "Quick Trading Panel",
                Margin = "10 7",
                Style = Styles.CreateHeaderStyle()
            };

            headerBorder.Child = header;
            return headerBorder;
        }

        private StackPanel CreateContentPanel(double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            var contentPanel = new StackPanel
            {
                Margin = 10
            };
            var grid = new Grid(4, 3);
            grid.Columns[1].SetWidthInPixels(5);

            var sellButton = CreateTradeButton("SELL", Styles.CreateSellButtonStyle(), TradeType.Sell);
            grid.AddChild(sellButton, 0, 0);

            var buyButton = CreateTradeButton("BUY", Styles.CreateBuyButtonStyle(), TradeType.Buy);
            grid.AddChild(buyButton, 0, 2);

            var lotsInput = CreateInputWithLabel("Quantity (Lots)", defaultLots.ToString("F2"), LotsInputKey);
            grid.AddChild(lotsInput, 1, 0, 1, 3);

            var stopLossInput = CreateInputWithLabel("Stop Loss (Pips)", defaultStopLossPips.ToString("F1"), StopLossInputKey);
            grid.AddChild(stopLossInput, 2, 0);

            var takeProfitInput = CreateInputWithLabel("Take Profit (Pips)", defaultTakeProfitPips.ToString("F1"), TakeProfitInputKey);
            grid.AddChild(takeProfitInput, 2, 2);

            var closeAllButton = CreateCloseAllButton();
            grid.AddChild(closeAllButton, 3, 0, 1, 3);

            contentPanel.AddChild(grid);

            return contentPanel;
        }

        private Button CreateTradeButton(string text, Style style, TradeType tradeType)
        {
            var tradeButton = new Button
            {
                Text = text,
                Style = style,
                Height = 25
            };

            tradeButton.Click += args => ExecuteMarketOrderAsync(tradeType);

            return tradeButton;
        }

        private ControlBase CreateCloseAllButton()
        {
            var closeAllBorder = new Border
            {
                Margin = "0 10 0 0",
                BorderThickness = "0 1 0 0",
                Style = Styles.CreateCommonBorderStyle()
            };

            var closeButton = new Button
            {
                Style = Styles.CreateCloseButtonStyle(),
                Text = "Close All",
                Margin = "0 10 0 0"
            };

            closeButton.Click += args => CloseAll();
            closeAllBorder.Child = closeButton;

            return closeAllBorder;
        }

        private Panel CreateInputWithLabel(string label, string defaultValue, string inputKey)
        {
            var stackPanel = new StackPanel
            {
                Orientation = Orientation.Vertical,
                Margin = "0 10 0 0"
            };

            var textBlock = new TextBlock
            {
                Text = label
            };

            var input = new TextBox
            {
                Margin = "0 5 0 0",
                Text = defaultValue,
                Style = Styles.CreateInputStyle()
            };

            _inputMap.Add(inputKey, input);

            stackPanel.AddChild(textBlock);
            stackPanel.AddChild(input);

            return stackPanel;
        }

        private void ExecuteMarketOrderAsync(TradeType tradeType)
        {
            var lots = GetValueFromInput(LotsInputKey, 0);
            if (lots <= 0)
            {
                _robot.Print(string.Format("{0} failed, invalid Lots", tradeType));
                return;
            }

            var stopLossPips = GetValueFromInput(StopLossInputKey, 0);
            var takeProfitPips = GetValueFromInput(TakeProfitInputKey, 0);

            _robot.Print(string.Format("Open position with: LotsParameter: {0}, StopLossPipsParameter: {1}, TakeProfitPipsParameter: {2}", lots, stopLossPips, takeProfitPips));

            var volume = _symbol.QuantityToVolumeInUnits(lots);
            _robot.ExecuteMarketOrderAsync(tradeType, _symbol.Name, volume, "Trade Panel Sample", stopLossPips, takeProfitPips);
        }

        private double GetValueFromInput(string inputKey, double defaultValue)
        {
            double value;

            return double.TryParse(_inputMap[inputKey].Text, out value) ? value : defaultValue;
        }

        private void CloseAll()
        {
            foreach (var position in _robot.Positions)
                _robot.ClosePositionAsync(position);
        }
    }

    public static class Styles
    {
        public static Style CreatePanelBackgroundStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.CornerRadius, 3);
            style.Set(ControlProperty.BackgroundColor, GetColorWithOpacity(Color.FromHex("#292929"), 0.85m), ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, GetColorWithOpacity(Color.FromHex("#FFFFFF"), 0.85m), ControlState.LightTheme);
            style.Set(ControlProperty.BorderColor, Color.FromHex("#3C3C3C"), ControlState.DarkTheme);
            style.Set(ControlProperty.BorderColor, Color.FromHex("#C3C3C3"), ControlState.LightTheme);
            style.Set(ControlProperty.BorderThickness, new Thickness(1));

            return style;
        }

        public static Style CreateCommonBorderStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.BorderColor, GetColorWithOpacity(Color.FromHex("#FFFFFF"), 0.12m), ControlState.DarkTheme);
            style.Set(ControlProperty.BorderColor, GetColorWithOpacity(Color.FromHex("#000000"), 0.12m), ControlState.LightTheme);
            return style;
        }

        public static Style CreateHeaderStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.ForegroundColor, GetColorWithOpacity("#FFFFFF", 0.70m), ControlState.DarkTheme);
            style.Set(ControlProperty.ForegroundColor, GetColorWithOpacity("#000000", 0.65m), ControlState.LightTheme);
            return style;
        }

        public static Style CreateInputStyle()
        {
            var style = new Style(DefaultStyles.TextBoxStyle);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#1A1A1A"), ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#111111"), ControlState.DarkTheme | ControlState.Hover);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#E7EBED"), ControlState.LightTheme);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#D6DADC"), ControlState.LightTheme | ControlState.Hover);
            style.Set(ControlProperty.CornerRadius, 3);
            return style;
        }

        public static Style CreateBuyButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#009345"), Color.FromHex("#10A651"));
        }

        public static Style CreateSellButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#F05824"), Color.FromHex("#FF6C36"));
        }

        public static Style CreateCloseButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#F05824"), Color.FromHex("#FF6C36"));
        }

        private static Style CreateButtonStyle(Color color, Color hoverColor)
        {
            var style = new Style(DefaultStyles.ButtonStyle);
            style.Set(ControlProperty.BackgroundColor, color, ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, color, ControlState.LightTheme);
            style.Set(ControlProperty.BackgroundColor, hoverColor, ControlState.DarkTheme | ControlState.Hover);
            style.Set(ControlProperty.BackgroundColor, hoverColor, ControlState.LightTheme | ControlState.Hover);
            style.Set(ControlProperty.ForegroundColor, Color.FromHex("#FFFFFF"), ControlState.DarkTheme);
            style.Set(ControlProperty.ForegroundColor, Color.FromHex("#FFFFFF"), ControlState.LightTheme);
            return style;
        }

        private static Color GetColorWithOpacity(Color baseColor, decimal opacity)
        {
            var alpha = (int)Math.Round(byte.MaxValue * opacity, MidpointRounding.AwayFromZero);
            return Color.FromArgb(alpha, baseColor);
        }
    }
}

I put this code

            //DailyProfit
            if (History.Count > 0)
                DailyNetHistory = History.Where(x => x.ClosingTime.Date == Time.Date).Sum(x => x.NetProfit);
            var oldTrades = History.Where(x => x.ClosingTime.Date != Time.Date).OrderBy(x => x.ClosingTime).ToArray();
            if (oldTrades.Length > 0)
                StartingBalance = History.Where(x => x.ClosingTime.Date != Time.Date).OrderBy(x => x.ClosingTime).Last().Balance;

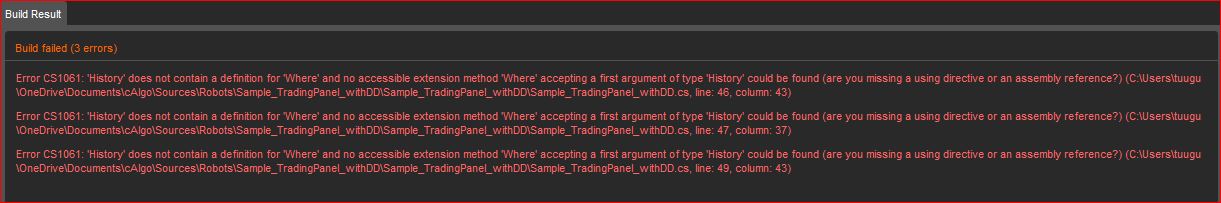

 at onstrart() function of second code but this error appeared

How to solve it?

Thank you

@tuuguu177
Replies

PanagiotisCharalampous
16 Sep 2024, 05:24

Hi there,

Add

using System.Linq;

in the namespaces you use

Best regards,

Panagiotis

@PanagiotisCharalampous

tuuguu177
10 Nov 2024, 14:22

RE: lock buy sell button

PanagiotisCharalampous said:

Hi there,

Add

using System.Linq;

in the namespaces you use

Best regards,

Panagiotis

I put it but it did not work

@tuuguu177

tuuguu177
10 Nov 2024, 14:30

RE: lock buy sell button

PanagiotisCharalampous said:

Hi there,

Add

using System.Linq;

in the namespaces you use

Best regards,

Panagiotis

Could you please provide code of if live profit is greater than -10% then it disables trade button?

@tuuguu177

PanagiotisCharalampous
11 Nov 2024, 06:52

RE: RE: lock buy sell button

tuuguu177 said:

PanagiotisCharalampous said:

Hi there,

Add

using System.Linq;

in the namespaces you use

Best regards,

Panagiotis

I put it but it did not work

Please share the updated cBot code

@PanagiotisCharalampous

tuuguu177
11 Nov 2024, 11:32

RE: RE: RE: lock buy sell button

PanagiotisCharalampous said:

tuuguu177 said:

PanagiotisCharalampous said:

Hi there,

Add

using System.Linq;

in the namespaces you use

Best regards,

Panagiotis

I put it but it did not work

Please share the updated cBot code

using System;
using System.Collections.Generic;
using cAlgo.API;
using cAlgo.API.Internals;

using System.Linq;
using cAlgo.Indicators;
using cAlgo.API.Indicators;

namespace cAlgo
{
    [Robot(TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
    public class SampleTradingPanel : Robot
    {
        [Parameter("Vertical Position", Group = "Panel alignment", DefaultValue = VerticalAlignment.Top)]
        public VerticalAlignment PanelVerticalAlignment { get; set; }

        [Parameter("Horizontal Position", Group = "Panel alignment", DefaultValue = HorizontalAlignment.Left)]
        public HorizontalAlignment PanelHorizontalAlignment { get; set; }

        [Parameter("Default Lots", Group = "Default trade parameters", DefaultValue = 0.01)]
        public double DefaultLots { get; set; }

        [Parameter("Default Take Profit (pips)", Group = "Default trade parameters", DefaultValue = 100)]
        public double DefaultTakeProfitPips { get; set; }

        [Parameter("Default Stop Loss (pips)", Group = "Default trade parameters", DefaultValue = 20)]
        public double DefaultStopLossPips { get; set; }

        protected override void OnStart()
        {
            var tradingPanel = new TradingPanel(this, Symbol, DefaultLots, DefaultStopLossPips, DefaultTakeProfitPips);

            var border = new Border
            {
                VerticalAlignment = PanelVerticalAlignment,
                HorizontalAlignment = PanelHorizontalAlignment,
                Style = Styles.CreatePanelBackgroundStyle(),
                Margin = "20 350 2 20",
                Width = 145,
                Child = tradingPanel
            };

            Chart.AddControl(border);
        }
    }

    public class TradingPanel : CustomControl
    {
        private const string LotsInputKey = "LotsKey";
        private const string TakeProfitInputKey = "TPKey";
        private const string StopLossInputKey = "SLKey";
        private readonly IDictionary<string, TextBox> _inputMap = new Dictionary<string, TextBox>();
        private readonly Robot _robot;
        private readonly Symbol _symbol;

        public TradingPanel(Robot robot, Symbol symbol, double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            _robot = robot;
            _symbol = symbol;
            AddChild(CreateTradingPanel(defaultLots, defaultStopLossPips, defaultTakeProfitPips));
        }

        private ControlBase CreateTradingPanel(double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            var mainPanel = new StackPanel();

            var header = CreateHeader();
            mainPanel.AddChild(header);

            var contentPanel = CreateContentPanel(defaultLots, defaultStopLossPips, defaultTakeProfitPips);
            mainPanel.AddChild(contentPanel);

            return mainPanel;
        }

        private ControlBase CreateHeader()
        {
            var headerBorder = new Border
            {
                BorderThickness = "0 0 0 1",
                Style = Styles.CreateCommonBorderStyle()
            };

            var header = new TextBlock
            {
                Text = "Quick Trading Panel",
                Margin = "10 7",
                Style = Styles.CreateHeaderStyle()
            };

            headerBorder.Child = header;
            return headerBorder;
        }

        private StackPanel CreateContentPanel(double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            var contentPanel = new StackPanel
            {
                Margin = 10
            };
            var grid = new Grid(4, 3);
            //var grid2 = new Grid(5, 3);
            grid.Columns[1].SetWidthInPixels(5);

            var sellButton = CreateTradeButton("SELL", Styles.CreateSellButtonStyle(), TradeType.Sell);
            grid.AddChild(sellButton, 0, 0);

            var buyButton = CreateTradeButton("BUY", Styles.CreateBuyButtonStyle(), TradeType.Buy);
            grid.AddChild(buyButton, 0, 2);

            var lotsInput = CreateInputWithLabel("Quantity (Lots)", defaultLots.ToString("F2"), LotsInputKey);
            grid.AddChild(lotsInput, 1, 0, 1, 3);

            var stopLossInput = CreateInputWithLabel("SL/Pips/", defaultStopLossPips.ToString("F1"), StopLossInputKey);
            grid.AddChild(stopLossInput, 2, 0);

            var takeProfitInput = CreateInputWithLabel("TP/Pips/", defaultTakeProfitPips.ToString("F1"), TakeProfitInputKey);
            grid.AddChild(takeProfitInput, 2, 2);

            var closeAllButton = CreateCloseAllButton();
            var closeAllButton2 = CreateCloseAllButton2();
            //grid.AddChild(closeAllButton, 3, 0, 1, 3);
            //grid.AddChild(closeAllButton2, 3, 0, 1, 3);

            grid.AddChild(closeAllButton, 3, 0);
            grid.AddChild(closeAllButton2, 3, 2);

            contentPanel.AddChild(grid);

            return contentPanel;
        }

        private Button CreateTradeButton(string text, Style style, TradeType tradeType)
        {
            var tradeButton = new Button
            {
                Text = text,
                Style = style,
                Height = 25
            };

            tradeButton.Click += args => ExecuteMarketOrderAsync(tradeType);

            return tradeButton;
        }

        private ControlBase CreateCloseAllButton()
        {
            var closeAllBorder = new Border
            {
                Margin = "0 20 0 0",
                BorderThickness = "0 1 0 0",
                Style = Styles.CreateCommonBorderStyle()
            };

            var closeButton = new Button
            {
                Style = Styles.CreateCloseButtonStyle(),
                Text = "Close.A",
                Margin = "0 20 0 0"
            };

            closeButton.Click += args => CloseAll();
            closeAllBorder.Child = closeButton;

            return closeAllBorder;
        }

        private ControlBase CreateCloseAllButton2()
        {

            var closeAllBorder2 = new Border
            {
                Margin = "0 20 0 0",
                BorderThickness = "0 1 0 0",
                Style = Styles.CreateCommonBorderStyle()
            };

            var closeButton2 = new Button
            {
                Style = Styles.CreateCloseButtonStyle(),
                Text = "Close.P",
                Margin = "0 20 0 0"
            };

            closeButton2.Click += args => ClosePart();
            closeAllBorder2.Child = closeButton2;

            return closeAllBorder2;
        }

        private Panel CreateInputWithLabel(string label, string defaultValue, string inputKey)
        {
            var stackPanel = new StackPanel
            {
                Orientation = Orientation.Vertical,
                Margin = "0 10 0 0"
            };

            var textBlock = new TextBlock
            {
                Text = label
            };

            var input = new TextBox
            {
                Margin = "0 5 0 0",
                Text = defaultValue,
                Style = Styles.CreateInputStyle()
            };

            _inputMap.Add(inputKey, input);

            stackPanel.AddChild(textBlock);
            stackPanel.AddChild(input);

            return stackPanel;
        }

        private void ExecuteMarketOrderAsync(TradeType tradeType)
        {
            var lots = GetValueFromInput(LotsInputKey, 0);
            if (lots <= 0)
            {
                _robot.Print(string.Format("{0} failed, invalid Lots", tradeType));
                return;
            }

            var stopLossPips = GetValueFromInput(StopLossInputKey, 0);
            var takeProfitPips = GetValueFromInput(TakeProfitInputKey, 0);

            _robot.Print(string.Format("Open position with: LotsParameter: {0}, StopLossPipsParameter: {1}, TakeProfitPipsParameter: {2}", lots, stopLossPips, takeProfitPips));

            //var netProfit = Account.UnrealizedNetProfit;
            //var PercentProfit = Math.Round(netProfit / Account.Balance * 100, 2);

            var volume = _symbol.QuantityToVolumeInUnits(lots);

            if (Account.Equity < Account.Balance * ((100 - maxDrawDown) / 100))
            {
                //foreach (var position in Positions)
                    //ClosePositionAsync(position);
            }

            _robot.ExecuteMarketOrderAsync(tradeType, _symbol.Name, volume, "Trade Panel Sample", stopLossPips, takeProfitPips);
        }

        private double GetValueFromInput(string inputKey, double defaultValue)
        {
            double value;

            return double.TryParse(_inputMap[inputKey].Text, out value) ? value : defaultValue;
        }

        private void CloseAll()
        {
            foreach (var position in _robot.Positions)
                _robot.ClosePositionAsync(position);
        }


        private void ClosePart()
        {
            foreach (var position in _robot.Positions)
        {

            _robot.ClosePosition(position, 5);

        }
        }

    }

    public static class Styles
    {
        public static Style CreatePanelBackgroundStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.CornerRadius, 3);
            style.Set(ControlProperty.BackgroundColor, GetColorWithOpacity(Color.FromHex("#292929"), 0.10m), ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, GetColorWithOpacity(Color.FromHex("#FFFFFF"), 0.10m), ControlState.LightTheme);
            style.Set(ControlProperty.BorderColor, Color.FromHex("#3C3C3C"), ControlState.DarkTheme);
            style.Set(ControlProperty.BorderColor, Color.FromHex("#C3C3C3"), ControlState.LightTheme);
            style.Set(ControlProperty.BorderThickness, new Thickness(1));

            return style;
        }

        public static Style CreateCommonBorderStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.BorderColor, GetColorWithOpacity(Color.FromHex("#FFFFFF"), 0.12m), ControlState.DarkTheme);
            style.Set(ControlProperty.BorderColor, GetColorWithOpacity(Color.FromHex("#000000"), 0.12m), ControlState.LightTheme);
            return style;
        }

        public static Style CreateHeaderStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.ForegroundColor, GetColorWithOpacity("#FFFFFF", 0.70m), ControlState.DarkTheme);
            style.Set(ControlProperty.ForegroundColor, GetColorWithOpacity("#000000", 0.65m), ControlState.LightTheme);
            return style;
        }

        public static Style CreateInputStyle()
        {
            var style = new Style(DefaultStyles.TextBoxStyle);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#1A1A1A"), ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#111111"), ControlState.DarkTheme | ControlState.Hover);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#E7EBED"), ControlState.LightTheme);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#D6DADC"), ControlState.LightTheme | ControlState.Hover);
            style.Set(ControlProperty.CornerRadius, 3);
            return style;
        }

        public static Style CreateBuyButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#009345"), Color.FromHex("#10A651"));
        }

        public static Style CreateSellButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#F05824"), Color.FromHex("#FF6C36"));
        }

        public static Style CreateCloseButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#F05824"), Color.FromHex("#FF6C36"));
        }

        private static Style CreateButtonStyle(Color color, Color hoverColor)
        {
            var style = new Style(DefaultStyles.ButtonStyle);
            style.Set(ControlProperty.BackgroundColor, color, ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, color, ControlState.LightTheme);
            style.Set(ControlProperty.BackgroundColor, hoverColor, ControlState.DarkTheme | ControlState.Hover);
            style.Set(ControlProperty.BackgroundColor, hoverColor, ControlState.LightTheme | ControlState.Hover);
            style.Set(ControlProperty.ForegroundColor, Color.FromHex("#FFFFFF"), ControlState.DarkTheme);
            style.Set(ControlProperty.ForegroundColor, Color.FromHex("#FFFFFF"), ControlState.LightTheme);
            return style;
        }

        private static Color GetColorWithOpacity(Color baseColor, decimal opacity)
        {
            var alpha = (int)Math.Round(byte.MaxValue * opacity, MidpointRounding.AwayFromZero);
            return Color.FromArgb(alpha, baseColor);
        }
    }
}



@tuuguu177

PanagiotisCharalampous
11 Nov 2024, 14:11

RE: RE: RE: RE: lock buy sell button

tuuguu177 said:

PanagiotisCharalampous said:

tuuguu177 said:

PanagiotisCharalampous said:

Hi there,

Add

using System.Linq;

in the namespaces you use

Best regards,

Panagiotis

I put it but it did not work

Please share the updated cBot code

using System;
using System.Collections.Generic;
using cAlgo.API;
using cAlgo.API.Internals;

using System.Linq;
using cAlgo.Indicators;
using cAlgo.API.Indicators;

namespace cAlgo
{
    [Robot(TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
    public class SampleTradingPanel : Robot
    {
        [Parameter("Vertical Position", Group = "Panel alignment", DefaultValue = VerticalAlignment.Top)]
        public VerticalAlignment PanelVerticalAlignment { get; set; }

        [Parameter("Horizontal Position", Group = "Panel alignment", DefaultValue = HorizontalAlignment.Left)]
        public HorizontalAlignment PanelHorizontalAlignment { get; set; }

        [Parameter("Default Lots", Group = "Default trade parameters", DefaultValue = 0.01)]
        public double DefaultLots { get; set; }

        [Parameter("Default Take Profit (pips)", Group = "Default trade parameters", DefaultValue = 100)]
        public double DefaultTakeProfitPips { get; set; }

        [Parameter("Default Stop Loss (pips)", Group = "Default trade parameters", DefaultValue = 20)]
        public double DefaultStopLossPips { get; set; }

        protected override void OnStart()
        {
            var tradingPanel = new TradingPanel(this, Symbol, DefaultLots, DefaultStopLossPips, DefaultTakeProfitPips);

            var border = new Border
            {
                VerticalAlignment = PanelVerticalAlignment,
                HorizontalAlignment = PanelHorizontalAlignment,
                Style = Styles.CreatePanelBackgroundStyle(),
                Margin = "20 350 2 20",
                Width = 145,
                Child = tradingPanel
            };

            Chart.AddControl(border);
        }
    }

    public class TradingPanel : CustomControl
    {
        private const string LotsInputKey = "LotsKey";
        private const string TakeProfitInputKey = "TPKey";
        private const string StopLossInputKey = "SLKey";
        private readonly IDictionary<string, TextBox> _inputMap = new Dictionary<string, TextBox>();
        private readonly Robot _robot;
        private readonly Symbol _symbol;

        public TradingPanel(Robot robot, Symbol symbol, double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            _robot = robot;
            _symbol = symbol;
            AddChild(CreateTradingPanel(defaultLots, defaultStopLossPips, defaultTakeProfitPips));
        }

        private ControlBase CreateTradingPanel(double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            var mainPanel = new StackPanel();

            var header = CreateHeader();
            mainPanel.AddChild(header);

            var contentPanel = CreateContentPanel(defaultLots, defaultStopLossPips, defaultTakeProfitPips);
            mainPanel.AddChild(contentPanel);

            return mainPanel;
        }

        private ControlBase CreateHeader()
        {
            var headerBorder = new Border
            {
                BorderThickness = "0 0 0 1",
                Style = Styles.CreateCommonBorderStyle()
            };

            var header = new TextBlock
            {
                Text = "Quick Trading Panel",
                Margin = "10 7",
                Style = Styles.CreateHeaderStyle()
            };

            headerBorder.Child = header;
            return headerBorder;
        }

        private StackPanel CreateContentPanel(double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            var contentPanel = new StackPanel
            {
                Margin = 10
            };
            var grid = new Grid(4, 3);
            //var grid2 = new Grid(5, 3);
            grid.Columns[1].SetWidthInPixels(5);

            var sellButton = CreateTradeButton("SELL", Styles.CreateSellButtonStyle(), TradeType.Sell);
            grid.AddChild(sellButton, 0, 0);

            var buyButton = CreateTradeButton("BUY", Styles.CreateBuyButtonStyle(), TradeType.Buy);
            grid.AddChild(buyButton, 0, 2);

            var lotsInput = CreateInputWithLabel("Quantity (Lots)", defaultLots.ToString("F2"), LotsInputKey);
            grid.AddChild(lotsInput, 1, 0, 1, 3);

            var stopLossInput = CreateInputWithLabel("SL/Pips/", defaultStopLossPips.ToString("F1"), StopLossInputKey);
            grid.AddChild(stopLossInput, 2, 0);

            var takeProfitInput = CreateInputWithLabel("TP/Pips/", defaultTakeProfitPips.ToString("F1"), TakeProfitInputKey);
            grid.AddChild(takeProfitInput, 2, 2);

            var closeAllButton = CreateCloseAllButton();
            var closeAllButton2 = CreateCloseAllButton2();
            //grid.AddChild(closeAllButton, 3, 0, 1, 3);
            //grid.AddChild(closeAllButton2, 3, 0, 1, 3);

            grid.AddChild(closeAllButton, 3, 0);
            grid.AddChild(closeAllButton2, 3, 2);

            contentPanel.AddChild(grid);

            return contentPanel;
        }

        private Button CreateTradeButton(string text, Style style, TradeType tradeType)
        {
            var tradeButton = new Button
            {
                Text = text,
                Style = style,
                Height = 25
            };

            tradeButton.Click += args => ExecuteMarketOrderAsync(tradeType);

            return tradeButton;
        }

        private ControlBase CreateCloseAllButton()
        {
            var closeAllBorder = new Border
            {
                Margin = "0 20 0 0",
                BorderThickness = "0 1 0 0",
                Style = Styles.CreateCommonBorderStyle()
            };

            var closeButton = new Button
            {
                Style = Styles.CreateCloseButtonStyle(),
                Text = "Close.A",
                Margin = "0 20 0 0"
            };

            closeButton.Click += args => CloseAll();
            closeAllBorder.Child = closeButton;

            return closeAllBorder;
        }

        private ControlBase CreateCloseAllButton2()
        {

            var closeAllBorder2 = new Border
            {
                Margin = "0 20 0 0",
                BorderThickness = "0 1 0 0",
                Style = Styles.CreateCommonBorderStyle()
            };

            var closeButton2 = new Button
            {
                Style = Styles.CreateCloseButtonStyle(),
                Text = "Close.P",
                Margin = "0 20 0 0"
            };

            closeButton2.Click += args => ClosePart();
            closeAllBorder2.Child = closeButton2;

            return closeAllBorder2;
        }

        private Panel CreateInputWithLabel(string label, string defaultValue, string inputKey)
        {
            var stackPanel = new StackPanel
            {
                Orientation = Orientation.Vertical,
                Margin = "0 10 0 0"
            };

            var textBlock = new TextBlock
            {
                Text = label
            };

            var input = new TextBox
            {
                Margin = "0 5 0 0",
                Text = defaultValue,
                Style = Styles.CreateInputStyle()
            };

            _inputMap.Add(inputKey, input);

            stackPanel.AddChild(textBlock);
            stackPanel.AddChild(input);

            return stackPanel;
        }

        private void ExecuteMarketOrderAsync(TradeType tradeType)
        {
            var lots = GetValueFromInput(LotsInputKey, 0);
            if (lots <= 0)
            {
                _robot.Print(string.Format("{0} failed, invalid Lots", tradeType));
                return;
            }

            var stopLossPips = GetValueFromInput(StopLossInputKey, 0);
            var takeProfitPips = GetValueFromInput(TakeProfitInputKey, 0);

            _robot.Print(string.Format("Open position with: LotsParameter: {0}, StopLossPipsParameter: {1}, TakeProfitPipsParameter: {2}", lots, stopLossPips, takeProfitPips));

            //var netProfit = Account.UnrealizedNetProfit;
            //var PercentProfit = Math.Round(netProfit / Account.Balance * 100, 2);

            var volume = _symbol.QuantityToVolumeInUnits(lots);

            if (Account.Equity < Account.Balance * ((100 - maxDrawDown) / 100))
            {
                //foreach (var position in Positions)
                    //ClosePositionAsync(position);
            }

            _robot.ExecuteMarketOrderAsync(tradeType, _symbol.Name, volume, "Trade Panel Sample", stopLossPips, takeProfitPips);
        }

        private double GetValueFromInput(string inputKey, double defaultValue)
        {
            double value;

            return double.TryParse(_inputMap[inputKey].Text, out value) ? value : defaultValue;
        }

        private void CloseAll()
        {
            foreach (var position in _robot.Positions)
                _robot.ClosePositionAsync(position);
        }


        private void ClosePart()
        {
            foreach (var position in _robot.Positions)
        {

            _robot.ClosePosition(position, 5);

        }
        }

    }

    public static class Styles
    {
        public static Style CreatePanelBackgroundStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.CornerRadius, 3);
            style.Set(ControlProperty.BackgroundColor, GetColorWithOpacity(Color.FromHex("#292929"), 0.10m), ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, GetColorWithOpacity(Color.FromHex("#FFFFFF"), 0.10m), ControlState.LightTheme);
            style.Set(ControlProperty.BorderColor, Color.FromHex("#3C3C3C"), ControlState.DarkTheme);
            style.Set(ControlProperty.BorderColor, Color.FromHex("#C3C3C3"), ControlState.LightTheme);
            style.Set(ControlProperty.BorderThickness, new Thickness(1));

            return style;
        }

        public static Style CreateCommonBorderStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.BorderColor, GetColorWithOpacity(Color.FromHex("#FFFFFF"), 0.12m), ControlState.DarkTheme);
            style.Set(ControlProperty.BorderColor, GetColorWithOpacity(Color.FromHex("#000000"), 0.12m), ControlState.LightTheme);
            return style;
        }

        public static Style CreateHeaderStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.ForegroundColor, GetColorWithOpacity("#FFFFFF", 0.70m), ControlState.DarkTheme);
            style.Set(ControlProperty.ForegroundColor, GetColorWithOpacity("#000000", 0.65m), ControlState.LightTheme);
            return style;
        }

        public static Style CreateInputStyle()
        {
            var style = new Style(DefaultStyles.TextBoxStyle);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#1A1A1A"), ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#111111"), ControlState.DarkTheme | ControlState.Hover);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#E7EBED"), ControlState.LightTheme);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#D6DADC"), ControlState.LightTheme | ControlState.Hover);
            style.Set(ControlProperty.CornerRadius, 3);
            return style;
        }

        public static Style CreateBuyButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#009345"), Color.FromHex("#10A651"));
        }

        public static Style CreateSellButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#F05824"), Color.FromHex("#FF6C36"));
        }

        public static Style CreateCloseButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#F05824"), Color.FromHex("#FF6C36"));
        }

        private static Style CreateButtonStyle(Color color, Color hoverColor)
        {
            var style = new Style(DefaultStyles.ButtonStyle);
            style.Set(ControlProperty.BackgroundColor, color, ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, color, ControlState.LightTheme);
            style.Set(ControlProperty.BackgroundColor, hoverColor, ControlState.DarkTheme | ControlState.Hover);
            style.Set(ControlProperty.BackgroundColor, hoverColor, ControlState.LightTheme | ControlState.Hover);
            style.Set(ControlProperty.ForegroundColor, Color.FromHex("#FFFFFF"), ControlState.DarkTheme);
            style.Set(ControlProperty.ForegroundColor, Color.FromHex("#FFFFFF"), ControlState.LightTheme);
            return style;
        }

        private static Color GetColorWithOpacity(Color baseColor, decimal opacity)
        {
            var alpha = (int)Math.Round(byte.MaxValue * opacity, MidpointRounding.AwayFromZero);
            return Color.FromArgb(alpha, baseColor);
        }
    }
}



Hi there,

The errors are different this time and they are self explanatory. You are using variables that are not defined anywhere.

Best regards,

Panagiotis

@PanagiotisCharalampous

tuuguu177
11 Nov 2024, 15:18

RE: RE: RE: RE: RE: lock buy sell button

PanagiotisCharalampous said:

tuuguu177 said:

PanagiotisCharalampous said:

tuuguu177 said:

PanagiotisCharalampous said:

Hi there,

Add

using System.Linq;

in the namespaces you use

Best regards,

Panagiotis

I put it but it did not work

Please share the updated cBot code

using System;
using System.Collections.Generic;
using cAlgo.API;
using cAlgo.API.Internals;

using System.Linq;
using cAlgo.Indicators;
using cAlgo.API.Indicators;

namespace cAlgo
{
    [Robot(TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
    public class SampleTradingPanel : Robot
    {
        [Parameter("Vertical Position", Group = "Panel alignment", DefaultValue = VerticalAlignment.Top)]
        public VerticalAlignment PanelVerticalAlignment { get; set; }

        [Parameter("Horizontal Position", Group = "Panel alignment", DefaultValue = HorizontalAlignment.Left)]
        public HorizontalAlignment PanelHorizontalAlignment { get; set; }

        [Parameter("Default Lots", Group = "Default trade parameters", DefaultValue = 0.01)]
        public double DefaultLots { get; set; }

        [Parameter("Default Take Profit (pips)", Group = "Default trade parameters", DefaultValue = 100)]
        public double DefaultTakeProfitPips { get; set; }

        [Parameter("Default Stop Loss (pips)", Group = "Default trade parameters", DefaultValue = 20)]
        public double DefaultStopLossPips { get; set; }

        protected override void OnStart()
        {
            var tradingPanel = new TradingPanel(this, Symbol, DefaultLots, DefaultStopLossPips, DefaultTakeProfitPips);

            var border = new Border
            {
                VerticalAlignment = PanelVerticalAlignment,
                HorizontalAlignment = PanelHorizontalAlignment,
                Style = Styles.CreatePanelBackgroundStyle(),
                Margin = "20 350 2 20",
                Width = 145,
                Child = tradingPanel
            };

            Chart.AddControl(border);
        }
    }

    public class TradingPanel : CustomControl
    {
        private const string LotsInputKey = "LotsKey";
        private const string TakeProfitInputKey = "TPKey";
        private const string StopLossInputKey = "SLKey";
        private readonly IDictionary<string, TextBox> _inputMap = new Dictionary<string, TextBox>();
        private readonly Robot _robot;
        private readonly Symbol _symbol;

        public TradingPanel(Robot robot, Symbol symbol, double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            _robot = robot;
            _symbol = symbol;
            AddChild(CreateTradingPanel(defaultLots, defaultStopLossPips, defaultTakeProfitPips));
        }

        private ControlBase CreateTradingPanel(double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            var mainPanel = new StackPanel();

            var header = CreateHeader();
            mainPanel.AddChild(header);

            var contentPanel = CreateContentPanel(defaultLots, defaultStopLossPips, defaultTakeProfitPips);
            mainPanel.AddChild(contentPanel);

            return mainPanel;
        }

        private ControlBase CreateHeader()
        {
            var headerBorder = new Border
            {
                BorderThickness = "0 0 0 1",
                Style = Styles.CreateCommonBorderStyle()
            };

            var header = new TextBlock
            {
                Text = "Quick Trading Panel",
                Margin = "10 7",
                Style = Styles.CreateHeaderStyle()
            };

            headerBorder.Child = header;
            return headerBorder;
        }

        private StackPanel CreateContentPanel(double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            var contentPanel = new StackPanel
            {
                Margin = 10
            };
            var grid = new Grid(4, 3);
            //var grid2 = new Grid(5, 3);
            grid.Columns[1].SetWidthInPixels(5);

            var sellButton = CreateTradeButton("SELL", Styles.CreateSellButtonStyle(), TradeType.Sell);
            grid.AddChild(sellButton, 0, 0);

            var buyButton = CreateTradeButton("BUY", Styles.CreateBuyButtonStyle(), TradeType.Buy);
            grid.AddChild(buyButton, 0, 2);

            var lotsInput = CreateInputWithLabel("Quantity (Lots)", defaultLots.ToString("F2"), LotsInputKey);
            grid.AddChild(lotsInput, 1, 0, 1, 3);

            var stopLossInput = CreateInputWithLabel("SL/Pips/", defaultStopLossPips.ToString("F1"), StopLossInputKey);
            grid.AddChild(stopLossInput, 2, 0);

            var takeProfitInput = CreateInputWithLabel("TP/Pips/", defaultTakeProfitPips.ToString("F1"), TakeProfitInputKey);
            grid.AddChild(takeProfitInput, 2, 2);

            var closeAllButton = CreateCloseAllButton();
            var closeAllButton2 = CreateCloseAllButton2();
            //grid.AddChild(closeAllButton, 3, 0, 1, 3);
            //grid.AddChild(closeAllButton2, 3, 0, 1, 3);

            grid.AddChild(closeAllButton, 3, 0);
            grid.AddChild(closeAllButton2, 3, 2);

            contentPanel.AddChild(grid);

            return contentPanel;
        }

        private Button CreateTradeButton(string text, Style style, TradeType tradeType)
        {
            var tradeButton = new Button
            {
                Text = text,
                Style = style,
                Height = 25
            };

            tradeButton.Click += args => ExecuteMarketOrderAsync(tradeType);

            return tradeButton;
        }

        private ControlBase CreateCloseAllButton()
        {
            var closeAllBorder = new Border
            {
                Margin = "0 20 0 0",
                BorderThickness = "0 1 0 0",
                Style = Styles.CreateCommonBorderStyle()
            };

            var closeButton = new Button
            {
                Style = Styles.CreateCloseButtonStyle(),
                Text = "Close.A",
                Margin = "0 20 0 0"
            };

            closeButton.Click += args => CloseAll();
            closeAllBorder.Child = closeButton;

            return closeAllBorder;
        }

        private ControlBase CreateCloseAllButton2()
        {

            var closeAllBorder2 = new Border
            {
                Margin = "0 20 0 0",
                BorderThickness = "0 1 0 0",
                Style = Styles.CreateCommonBorderStyle()
            };

            var closeButton2 = new Button
            {
                Style = Styles.CreateCloseButtonStyle(),
                Text = "Close.P",
                Margin = "0 20 0 0"
            };

            closeButton2.Click += args => ClosePart();
            closeAllBorder2.Child = closeButton2;

            return closeAllBorder2;
        }

        private Panel CreateInputWithLabel(string label, string defaultValue, string inputKey)
        {
            var stackPanel = new StackPanel
            {
                Orientation = Orientation.Vertical,
                Margin = "0 10 0 0"
            };

            var textBlock = new TextBlock
            {
                Text = label
            };

            var input = new TextBox
            {
                Margin = "0 5 0 0",
                Text = defaultValue,
                Style = Styles.CreateInputStyle()
            };

            _inputMap.Add(inputKey, input);

            stackPanel.AddChild(textBlock);
            stackPanel.AddChild(input);

            return stackPanel;
        }

        private void ExecuteMarketOrderAsync(TradeType tradeType)
        {
            var lots = GetValueFromInput(LotsInputKey, 0);
            if (lots <= 0)
            {
                _robot.Print(string.Format("{0} failed, invalid Lots", tradeType));
                return;
            }

            var stopLossPips = GetValueFromInput(StopLossInputKey, 0);
            var takeProfitPips = GetValueFromInput(TakeProfitInputKey, 0);

            _robot.Print(string.Format("Open position with: LotsParameter: {0}, StopLossPipsParameter: {1}, TakeProfitPipsParameter: {2}", lots, stopLossPips, takeProfitPips));

            //var netProfit = Account.UnrealizedNetProfit;
            //var PercentProfit = Math.Round(netProfit / Account.Balance * 100, 2);

            var volume = _symbol.QuantityToVolumeInUnits(lots);

            if (Account.Equity < Account.Balance * ((100 - maxDrawDown) / 100))
            {
                //foreach (var position in Positions)
                    //ClosePositionAsync(position);
            }

            _robot.ExecuteMarketOrderAsync(tradeType, _symbol.Name, volume, "Trade Panel Sample", stopLossPips, takeProfitPips);
        }

        private double GetValueFromInput(string inputKey, double defaultValue)
        {
            double value;

            return double.TryParse(_inputMap[inputKey].Text, out value) ? value : defaultValue;
        }

        private void CloseAll()
        {
            foreach (var position in _robot.Positions)
                _robot.ClosePositionAsync(position);
        }


        private void ClosePart()
        {
            foreach (var position in _robot.Positions)
        {

            _robot.ClosePosition(position, 5);

        }
        }

    }

    public static class Styles
    {
        public static Style CreatePanelBackgroundStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.CornerRadius, 3);
            style.Set(ControlProperty.BackgroundColor, GetColorWithOpacity(Color.FromHex("#292929"), 0.10m), ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, GetColorWithOpacity(Color.FromHex("#FFFFFF"), 0.10m), ControlState.LightTheme);
            style.Set(ControlProperty.BorderColor, Color.FromHex("#3C3C3C"), ControlState.DarkTheme);
            style.Set(ControlProperty.BorderColor, Color.FromHex("#C3C3C3"), ControlState.LightTheme);
            style.Set(ControlProperty.BorderThickness, new Thickness(1));

            return style;
        }

        public static Style CreateCommonBorderStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.BorderColor, GetColorWithOpacity(Color.FromHex("#FFFFFF"), 0.12m), ControlState.DarkTheme);
            style.Set(ControlProperty.BorderColor, GetColorWithOpacity(Color.FromHex("#000000"), 0.12m), ControlState.LightTheme);
            return style;
        }

        public static Style CreateHeaderStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.ForegroundColor, GetColorWithOpacity("#FFFFFF", 0.70m), ControlState.DarkTheme);
            style.Set(ControlProperty.ForegroundColor, GetColorWithOpacity("#000000", 0.65m), ControlState.LightTheme);
            return style;
        }

        public static Style CreateInputStyle()
        {
            var style = new Style(DefaultStyles.TextBoxStyle);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#1A1A1A"), ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#111111"), ControlState.DarkTheme | ControlState.Hover);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#E7EBED"), ControlState.LightTheme);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#D6DADC"), ControlState.LightTheme | ControlState.Hover);
            style.Set(ControlProperty.CornerRadius, 3);
            return style;
        }

        public static Style CreateBuyButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#009345"), Color.FromHex("#10A651"));
        }

        public static Style CreateSellButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#F05824"), Color.FromHex("#FF6C36"));
        }

        public static Style CreateCloseButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#F05824"), Color.FromHex("#FF6C36"));
        }

        private static Style CreateButtonStyle(Color color, Color hoverColor)
        {
            var style = new Style(DefaultStyles.ButtonStyle);
            style.Set(ControlProperty.BackgroundColor, color, ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, color, ControlState.LightTheme);
            style.Set(ControlProperty.BackgroundColor, hoverColor, ControlState.DarkTheme | ControlState.Hover);
            style.Set(ControlProperty.BackgroundColor, hoverColor, ControlState.LightTheme | ControlState.Hover);
            style.Set(ControlProperty.ForegroundColor, Color.FromHex("#FFFFFF"), ControlState.DarkTheme);
            style.Set(ControlProperty.ForegroundColor, Color.FromHex("#FFFFFF"), ControlState.LightTheme);
            return style;
        }

        private static Color GetColorWithOpacity(Color baseColor, decimal opacity)
        {
            var alpha = (int)Math.Round(byte.MaxValue * opacity, MidpointRounding.AwayFromZero);
            return Color.FromArgb(alpha, baseColor);
        }
    }
}



Hi there,

The errors are different this time and they are self explanatory. You are using variables that are not defined anywhere.

Best regards,

Panagiotis

could you please give me the code?

@tuuguu177

PanagiotisCharalampous
12 Nov 2024, 06:28

RE: RE: RE: RE: RE: RE: lock buy sell button

tuuguu177 said:

PanagiotisCharalampous said:

tuuguu177 said:

PanagiotisCharalampous said:

tuuguu177 said:

PanagiotisCharalampous said:

Hi there,

Add

using System.Linq;

in the namespaces you use

Best regards,

Panagiotis

I put it but it did not work

Please share the updated cBot code

using System;
using System.Collections.Generic;
using cAlgo.API;
using cAlgo.API.Internals;

using System.Linq;
using cAlgo.Indicators;
using cAlgo.API.Indicators;

namespace cAlgo
{
    [Robot(TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
    public class SampleTradingPanel : Robot
    {
        [Parameter("Vertical Position", Group = "Panel alignment", DefaultValue = VerticalAlignment.Top)]
        public VerticalAlignment PanelVerticalAlignment { get; set; }

        [Parameter("Horizontal Position", Group = "Panel alignment", DefaultValue = HorizontalAlignment.Left)]
        public HorizontalAlignment PanelHorizontalAlignment { get; set; }

        [Parameter("Default Lots", Group = "Default trade parameters", DefaultValue = 0.01)]
        public double DefaultLots { get; set; }

        [Parameter("Default Take Profit (pips)", Group = "Default trade parameters", DefaultValue = 100)]
        public double DefaultTakeProfitPips { get; set; }

        [Parameter("Default Stop Loss (pips)", Group = "Default trade parameters", DefaultValue = 20)]
        public double DefaultStopLossPips { get; set; }

        protected override void OnStart()
        {
            var tradingPanel = new TradingPanel(this, Symbol, DefaultLots, DefaultStopLossPips, DefaultTakeProfitPips);

            var border = new Border
            {
                VerticalAlignment = PanelVerticalAlignment,
                HorizontalAlignment = PanelHorizontalAlignment,
                Style = Styles.CreatePanelBackgroundStyle(),
                Margin = "20 350 2 20",
                Width = 145,
                Child = tradingPanel
            };

            Chart.AddControl(border);
        }
    }

    public class TradingPanel : CustomControl
    {
        private const string LotsInputKey = "LotsKey";
        private const string TakeProfitInputKey = "TPKey";
        private const string StopLossInputKey = "SLKey";
        private readonly IDictionary<string, TextBox> _inputMap = new Dictionary<string, TextBox>();
        private readonly Robot _robot;
        private readonly Symbol _symbol;

        public TradingPanel(Robot robot, Symbol symbol, double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            _robot = robot;
            _symbol = symbol;
            AddChild(CreateTradingPanel(defaultLots, defaultStopLossPips, defaultTakeProfitPips));
        }

        private ControlBase CreateTradingPanel(double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            var mainPanel = new StackPanel();

            var header = CreateHeader();
            mainPanel.AddChild(header);

            var contentPanel = CreateContentPanel(defaultLots, defaultStopLossPips, defaultTakeProfitPips);
            mainPanel.AddChild(contentPanel);

            return mainPanel;
        }

        private ControlBase CreateHeader()
        {
            var headerBorder = new Border
            {
                BorderThickness = "0 0 0 1",
                Style = Styles.CreateCommonBorderStyle()
            };

            var header = new TextBlock
            {
                Text = "Quick Trading Panel",
                Margin = "10 7",
                Style = Styles.CreateHeaderStyle()
            };

            headerBorder.Child = header;
            return headerBorder;
        }

        private StackPanel CreateContentPanel(double defaultLots, double defaultStopLossPips, double defaultTakeProfitPips)
        {
            var contentPanel = new StackPanel
            {
                Margin = 10
            };
            var grid = new Grid(4, 3);
            //var grid2 = new Grid(5, 3);
            grid.Columns[1].SetWidthInPixels(5);

            var sellButton = CreateTradeButton("SELL", Styles.CreateSellButtonStyle(), TradeType.Sell);
            grid.AddChild(sellButton, 0, 0);

            var buyButton = CreateTradeButton("BUY", Styles.CreateBuyButtonStyle(), TradeType.Buy);
            grid.AddChild(buyButton, 0, 2);

            var lotsInput = CreateInputWithLabel("Quantity (Lots)", defaultLots.ToString("F2"), LotsInputKey);
            grid.AddChild(lotsInput, 1, 0, 1, 3);

            var stopLossInput = CreateInputWithLabel("SL/Pips/", defaultStopLossPips.ToString("F1"), StopLossInputKey);
            grid.AddChild(stopLossInput, 2, 0);

            var takeProfitInput = CreateInputWithLabel("TP/Pips/", defaultTakeProfitPips.ToString("F1"), TakeProfitInputKey);
            grid.AddChild(takeProfitInput, 2, 2);

            var closeAllButton = CreateCloseAllButton();
            var closeAllButton2 = CreateCloseAllButton2();
            //grid.AddChild(closeAllButton, 3, 0, 1, 3);
            //grid.AddChild(closeAllButton2, 3, 0, 1, 3);

            grid.AddChild(closeAllButton, 3, 0);
            grid.AddChild(closeAllButton2, 3, 2);

            contentPanel.AddChild(grid);

            return contentPanel;
        }

        private Button CreateTradeButton(string text, Style style, TradeType tradeType)
        {
            var tradeButton = new Button
            {
                Text = text,
                Style = style,
                Height = 25
            };

            tradeButton.Click += args => ExecuteMarketOrderAsync(tradeType);

            return tradeButton;
        }

        private ControlBase CreateCloseAllButton()
        {
            var closeAllBorder = new Border
            {
                Margin = "0 20 0 0",
                BorderThickness = "0 1 0 0",
                Style = Styles.CreateCommonBorderStyle()
            };

            var closeButton = new Button
            {
                Style = Styles.CreateCloseButtonStyle(),
                Text = "Close.A",
                Margin = "0 20 0 0"
            };

            closeButton.Click += args => CloseAll();
            closeAllBorder.Child = closeButton;

            return closeAllBorder;
        }

        private ControlBase CreateCloseAllButton2()
        {

            var closeAllBorder2 = new Border
            {
                Margin = "0 20 0 0",
                BorderThickness = "0 1 0 0",
                Style = Styles.CreateCommonBorderStyle()
            };

            var closeButton2 = new Button
            {
                Style = Styles.CreateCloseButtonStyle(),
                Text = "Close.P",
                Margin = "0 20 0 0"
            };

            closeButton2.Click += args => ClosePart();
            closeAllBorder2.Child = closeButton2;

            return closeAllBorder2;
        }

        private Panel CreateInputWithLabel(string label, string defaultValue, string inputKey)
        {
            var stackPanel = new StackPanel
            {
                Orientation = Orientation.Vertical,
                Margin = "0 10 0 0"
            };

            var textBlock = new TextBlock
            {
                Text = label
            };

            var input = new TextBox
            {
                Margin = "0 5 0 0",
                Text = defaultValue,
                Style = Styles.CreateInputStyle()
            };

            _inputMap.Add(inputKey, input);

            stackPanel.AddChild(textBlock);
            stackPanel.AddChild(input);

            return stackPanel;
        }

        private void ExecuteMarketOrderAsync(TradeType tradeType)
        {
            var lots = GetValueFromInput(LotsInputKey, 0);
            if (lots <= 0)
            {
                _robot.Print(string.Format("{0} failed, invalid Lots", tradeType));
                return;
            }

            var stopLossPips = GetValueFromInput(StopLossInputKey, 0);
            var takeProfitPips = GetValueFromInput(TakeProfitInputKey, 0);

            _robot.Print(string.Format("Open position with: LotsParameter: {0}, StopLossPipsParameter: {1}, TakeProfitPipsParameter: {2}", lots, stopLossPips, takeProfitPips));

            //var netProfit = Account.UnrealizedNetProfit;
            //var PercentProfit = Math.Round(netProfit / Account.Balance * 100, 2);

            var volume = _symbol.QuantityToVolumeInUnits(lots);

            if (Account.Equity < Account.Balance * ((100 - maxDrawDown) / 100))
            {
                //foreach (var position in Positions)
                    //ClosePositionAsync(position);
            }

            _robot.ExecuteMarketOrderAsync(tradeType, _symbol.Name, volume, "Trade Panel Sample", stopLossPips, takeProfitPips);
        }

        private double GetValueFromInput(string inputKey, double defaultValue)
        {
            double value;

            return double.TryParse(_inputMap[inputKey].Text, out value) ? value : defaultValue;
        }

        private void CloseAll()
        {
            foreach (var position in _robot.Positions)
                _robot.ClosePositionAsync(position);
        }


        private void ClosePart()
        {
            foreach (var position in _robot.Positions)
        {

            _robot.ClosePosition(position, 5);

        }
        }

    }

    public static class Styles
    {
        public static Style CreatePanelBackgroundStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.CornerRadius, 3);
            style.Set(ControlProperty.BackgroundColor, GetColorWithOpacity(Color.FromHex("#292929"), 0.10m), ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, GetColorWithOpacity(Color.FromHex("#FFFFFF"), 0.10m), ControlState.LightTheme);
            style.Set(ControlProperty.BorderColor, Color.FromHex("#3C3C3C"), ControlState.DarkTheme);
            style.Set(ControlProperty.BorderColor, Color.FromHex("#C3C3C3"), ControlState.LightTheme);
            style.Set(ControlProperty.BorderThickness, new Thickness(1));

            return style;
        }

        public static Style CreateCommonBorderStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.BorderColor, GetColorWithOpacity(Color.FromHex("#FFFFFF"), 0.12m), ControlState.DarkTheme);
            style.Set(ControlProperty.BorderColor, GetColorWithOpacity(Color.FromHex("#000000"), 0.12m), ControlState.LightTheme);
            return style;
        }

        public static Style CreateHeaderStyle()
        {
            var style = new Style();
            style.Set(ControlProperty.ForegroundColor, GetColorWithOpacity("#FFFFFF", 0.70m), ControlState.DarkTheme);
            style.Set(ControlProperty.ForegroundColor, GetColorWithOpacity("#000000", 0.65m), ControlState.LightTheme);
            return style;
        }

        public static Style CreateInputStyle()
        {
            var style = new Style(DefaultStyles.TextBoxStyle);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#1A1A1A"), ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#111111"), ControlState.DarkTheme | ControlState.Hover);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#E7EBED"), ControlState.LightTheme);
            style.Set(ControlProperty.BackgroundColor, Color.FromHex("#D6DADC"), ControlState.LightTheme | ControlState.Hover);
            style.Set(ControlProperty.CornerRadius, 3);
            return style;
        }

        public static Style CreateBuyButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#009345"), Color.FromHex("#10A651"));
        }

        public static Style CreateSellButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#F05824"), Color.FromHex("#FF6C36"));
        }

        public static Style CreateCloseButtonStyle()
        {
            return CreateButtonStyle(Color.FromHex("#F05824"), Color.FromHex("#FF6C36"));
        }

        private static Style CreateButtonStyle(Color color, Color hoverColor)
        {
            var style = new Style(DefaultStyles.ButtonStyle);
            style.Set(ControlProperty.BackgroundColor, color, ControlState.DarkTheme);
            style.Set(ControlProperty.BackgroundColor, color, ControlState.LightTheme);
            style.Set(ControlProperty.BackgroundColor, hoverColor, ControlState.DarkTheme | ControlState.Hover);
            style.Set(ControlProperty.BackgroundColor, hoverColor, ControlState.LightTheme | ControlState.Hover);
            style.Set(ControlProperty.ForegroundColor, Color.FromHex("#FFFFFF"), ControlState.DarkTheme);
            style.Set(ControlProperty.ForegroundColor, Color.FromHex("#FFFFFF"), ControlState.LightTheme);
            return style;
        }

        private static Color GetColorWithOpacity(Color baseColor, decimal opacity)
        {
            var alpha = (int)Math.Round(byte.MaxValue * opacity, MidpointRounding.AwayFromZero);
            return Color.FromArgb(alpha, baseColor);
        }
    }
}



Hi there,

The errors are different this time and they are self explanatory. You are using variables that are not defined anywhere.

Best regards,

Panagiotis

could you please give me the code?

Unfortunately I cannot write the code for you. If you have specific programming questions, I am happy to answer them. But if you don't know how to program, it's better to hire a professional.

@PanagiotisCharalampous
Copyright © 2024 Spotware Systems Ltd. All rights reserved.
cTrader Ltd offers through its group of companies the cTrader platform. The information on this website is for general informational purposes only and does not constitute financial or investment advice. cTrader does not solicit retail investors. Reliance on this information is at your own risk.
