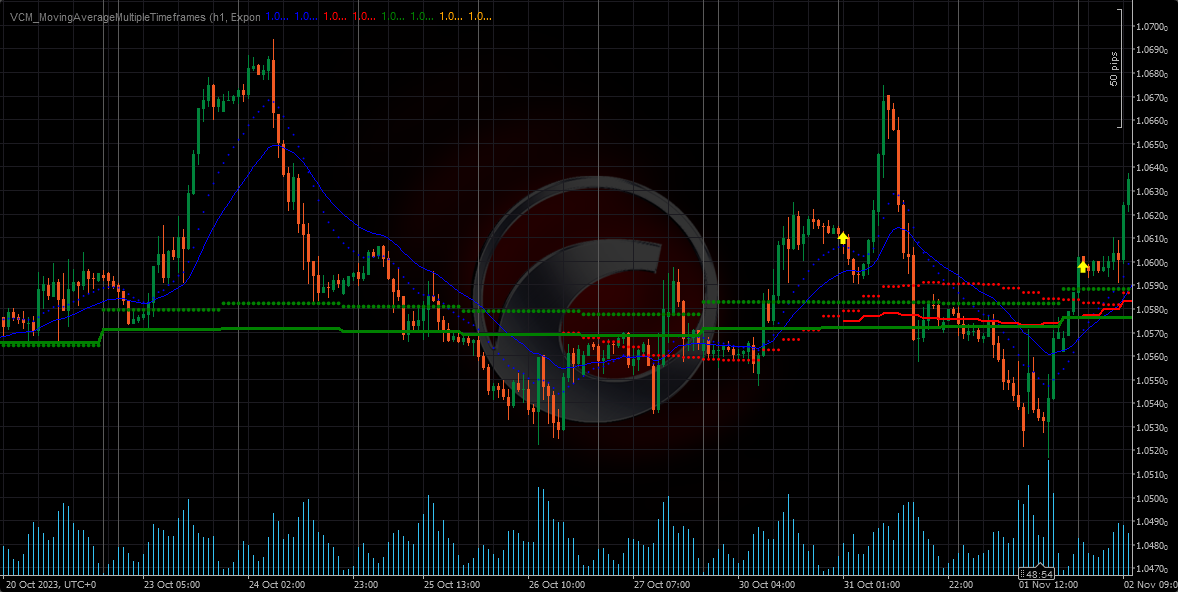

Indicator Stops Drawing After Scrolling Back in Time on cTrader

PanagiotisCharalampous
23 Jul 2024, 05:37

Hi there,

Your problem is in these conditions

            if (index3 >= 0)
            {
            	...

You stop assigning values if there is not enough data loaded for the higher timeframes.

Try something like this instead

            if (index2 < 0)
            {
                barsTimeframe2.LoadMoreHistory();
            }

Best regards,

Panagiotis

cortes.br
23 Jul 2024, 11:22 ( Updated at: 23 Jul 2024, 12:25 )

It worked very well! Thank you. 👌🙌

using System;
using System.Collections.Generic;
using cAlgo.API;
using cAlgo.API.Indicators;
using cAlgo.API.Internals;

namespace cAlgo
{
    [Indicator(AccessRights = AccessRights.None, IsOverlay = true, AutoRescale = false)]
    public class VCM_MovingAverageMultipleTimeframes : Indicator
    {
        private static readonly int NumTimeframes = 4;
        private MovingAverage[] slowMAs = new MovingAverage[NumTimeframes];
        private MovingAverage[] fastMAs = new MovingAverage[NumTimeframes];
        private IndicatorDataSeries[] slowResults = new IndicatorDataSeries[NumTimeframes];
        private IndicatorDataSeries[] fastResults = new IndicatorDataSeries[NumTimeframes];
        private Bars[] timeframes = new Bars[NumTimeframes];
        private int[] barOpenTimeIndices = new int[NumTimeframes];

        //* ----------------------------------- MA1 ---------------------------------- */
        [Parameter("Timeframe 1", DefaultValue = "H1", Group = "Timeframe 1")]
        public TimeFrame Timeframe1 { get; set; }

        [Parameter(
            "Fast MA Type 1",
            DefaultValue = MovingAverageType.Exponential,
            Group = "Timeframe 1"
        )]
        public MovingAverageType MAType1_Fast { get; set; }

        [Parameter(
            "Slow MA Type 1",
            DefaultValue = MovingAverageType.Exponential,
            Group = "Timeframe 1"
        )]
        public MovingAverageType MAType1_Slow { get; set; }

        [Parameter(
            "Fast MA Period 1",
            DefaultValue = 14,
            Group = "Timeframe 1",
            MinValue = 5,
            MaxValue = 50
        )]
        public int MAPeriod1_Fast { get; set; }

        [Parameter(
            "Slow MA Period 1",
            DefaultValue = 28,
            Group = "Timeframe 1",
            MinValue = 10,
            MaxValue = 200,
            Step = 10
        )]
        public int MAPeriod1_Slow { get; set; }

        [Output("MA1 Fast", LineColor = "Blue", Thickness = 1, PlotType = PlotType.Points)]
        public IndicatorDataSeries MA1_Fast { get; set; }

        [Output("MA1 Slow", LineColor = "Blue", Thickness = 1)]
        public IndicatorDataSeries MA1_Slow { get; set; }

        //* ----------------------------------- MA2 ---------------------------------- */
        [Parameter("Timeframe 2", DefaultValue = "H4", Group = "Timeframe 2")]
        public TimeFrame Timeframe2 { get; set; }

        [Parameter(
            "Fast MA Type 2",
            DefaultValue = MovingAverageType.Simple,
            Group = "Timeframe 2"
        )]
        public MovingAverageType MAType2_Fast { get; set; }

        [Parameter(
            "Slow MA Type 2",
            DefaultValue = MovingAverageType.Simple,
            Group = "Timeframe 2"
        )]
        public MovingAverageType MAType2_Slow { get; set; }

        [Parameter(
            "Fast MA Period 2",
            DefaultValue = 14,
            Group = "Timeframe 2",
            MinValue = 5,
            MaxValue = 50
        )]
        public int MAPeriod2_Fast { get; set; }

        [Parameter(
            "Slow MA Period 2",
            DefaultValue = 28,
            Group = "Timeframe 2",
            MinValue = 10,
            MaxValue = 200,
            Step = 10
        )]
        public int MAPeriod2_Slow { get; set; }

        [Output("MA2 Fast", LineColor = "Red", Thickness = 2, PlotType = PlotType.Points)]
        public IndicatorDataSeries MA2_Fast { get; set; }

        [Output("MA2 Slow", LineColor = "Red", Thickness = 2)]
        public IndicatorDataSeries MA2_Slow { get; set; }

        //* ----------------------------------- MA3 ---------------------------------- */
        [Parameter("Timeframe 3", DefaultValue = "D1", Group = "Timeframe 3")]
        public TimeFrame Timeframe3 { get; set; }

        [Parameter(
            "Fast MA Type 3",
            DefaultValue = MovingAverageType.Weighted,
            Group = "Timeframe 3"
        )]
        public MovingAverageType MAType3_Fast { get; set; }

        [Parameter(
            "Slow MA Type 3",
            DefaultValue = MovingAverageType.Weighted,
            Group = "Timeframe 3"
        )]
        public MovingAverageType MAType3_Slow { get; set; }

        [Parameter(
            "Fast MA Period 3",
            DefaultValue = 14,
            Group = "Timeframe 3",
            MinValue = 5,
            MaxValue = 50
        )]
        public int MAPeriod3_Fast { get; set; }

        [Parameter(
            "Slow MA Period 3",
            DefaultValue = 28,
            Group = "Timeframe 3",
            MinValue = 10,
            MaxValue = 200,
            Step = 10
        )]
        public int MAPeriod3_Slow { get; set; }

        [Output("MA3 Fast", LineColor = "Green", Thickness = 3, PlotType = PlotType.Points)]
        public IndicatorDataSeries MA3_Fast { get; set; }

        [Output("MA3 Slow", LineColor = "Green", Thickness = 3)]
        public IndicatorDataSeries MA3_Slow { get; set; }

        //* ----------------------------------- MA4 ---------------------------------- */
        [Parameter("Timeframe 4", DefaultValue = "W1", Group = "Timeframe 4")]
        public TimeFrame Timeframe4 { get; set; }

        [Parameter(
            "Fast MA Type 4",
            DefaultValue = MovingAverageType.Triangular,
            Group = "Timeframe 4"
        )]
        public MovingAverageType MAType4_Fast { get; set; }

        [Parameter(
            "Slow MA Type 4",
            DefaultValue = MovingAverageType.Triangular,
            Group = "Timeframe 4"
        )]
        public MovingAverageType MAType4_Slow { get; set; }

        [Parameter(
            "Fast MA Period 4",
            DefaultValue = 14,
            Group = "Timeframe 4",
            MinValue = 5,
            MaxValue = 50
        )]
        public int MAPeriod4_Fast { get; set; }

        [Parameter(
            "Slow MA Period 4",
            DefaultValue = 28,
            Group = "Timeframe 4",
            MinValue = 10,
            MaxValue = 200,
            Step = 10
        )]
        public int MAPeriod4_Slow { get; set; }

        [Output("MA4 Fast", LineColor = "Orange", Thickness = 4, PlotType = PlotType.Points)]
        public IndicatorDataSeries MA4_Fast { get; set; }

        [Output("MA4 Slow", LineColor = "Orange", Thickness = 4)]
        public IndicatorDataSeries MA4_Slow { get; set; }

        //* -------------------------------------------------------------------------- */
        public Dictionary<int, bool> AllAligned = new Dictionary<int, bool>();
        public Dictionary<int, bool> ThreeAligned = new Dictionary<int, bool>();
        public Dictionary<int, Trend> Trends = new Dictionary<int, Trend>();

        public static object[] Series(
            TimeFrame Timeframe1,
            MovingAverageType MAType1_Fast,
            MovingAverageType MAType1_Slow,
            int MAPeriod1_Fast,
            int MAPeriod1_Slow,
            TimeFrame Timeframe2,
            MovingAverageType MAType2_Fast,
            MovingAverageType MAType2_Slow,
            int MAPeriod2_Fast,
            int MAPeriod2_Slow,
            TimeFrame Timeframe3,
            MovingAverageType MAType3_Fast,
            MovingAverageType MAType3_Slow,
            int MAPeriod3_Fast,
            int MAPeriod3_Slow,
            TimeFrame Timeframe4,
            MovingAverageType MAType4_Fast,
            MovingAverageType MAType4_Slow,
            int MAPeriod4_Fast,
            int MAPeriod4_Slow
        )
        {
            return new object[]
            {
                Timeframe1,
                MAType1_Fast,
                MAType1_Slow,
                MAPeriod1_Fast,
                MAPeriod1_Slow,
                Timeframe2,
                MAType2_Fast,
                MAType2_Slow,
                MAPeriod2_Fast,
                MAPeriod2_Slow,
                Timeframe3,
                MAType3_Fast,
                MAType3_Slow,
                MAPeriod3_Fast,
                MAPeriod3_Slow,
                Timeframe4,
                MAType4_Fast,
                MAType4_Slow,
                MAPeriod4_Fast,
                MAPeriod4_Slow
            };
        }

        protected override void Initialize()
        {
#if DEBUG_NO
            if (System.Diagnostics.Debugger.IsAttached == false)
            {
                // Debugging
                var result = System.Diagnostics.Debugger.Launch();
                if (result is false)
                {
                    Print("Debugger not launched");
                }
            }
#endif
            InitializeBars();
            InitializeMovingAverages();
        }

        private void InitializeBars()
        {
            timeframes[0] = MarketData.GetBars(Timeframe1);
            timeframes[1] = MarketData.GetBars(Timeframe2);
            timeframes[2] = MarketData.GetBars(Timeframe3);
            timeframes[3] = MarketData.GetBars(Timeframe4);
        }

        private void InitializeMovingAverages()
        {
            var maTypesFast = new[] { MAType1_Fast, MAType2_Fast, MAType3_Fast, MAType4_Fast };
            var maTypesSlow = new[] { MAType1_Slow, MAType2_Slow, MAType3_Slow, MAType4_Slow };
            var maPeriodsFast = new[]
            {
                MAPeriod1_Fast,
                MAPeriod2_Fast,
                MAPeriod3_Fast,
                MAPeriod4_Fast
            };
            var maPeriodsSlow = new[]
            {
                MAPeriod1_Slow,
                MAPeriod2_Slow,
                MAPeriod3_Slow,
                MAPeriod4_Slow
            };
            var fastResults = new[] { MA1_Fast, MA2_Fast, MA3_Fast, MA4_Fast };
            var slowResults = new[] { MA1_Slow, MA2_Slow, MA3_Slow, MA4_Slow };

            for (int i = 0; i < NumTimeframes; i++)
            {
                slowMAs[i] = Indicators.MovingAverage(
                    timeframes[i].ClosePrices,
                    maPeriodsSlow[i],
                    maTypesSlow[i]
                );
                fastMAs[i] = Indicators.MovingAverage(
                    timeframes[i].ClosePrices,
                    maPeriodsFast[i],
                    maTypesFast[i]
                );
                this.slowResults[i] = slowResults[i];
                this.fastResults[i] = fastResults[i];
            }
        }

        public override void Calculate(int index)
        {
            UpdateBarOpenTimeIndices(index);
            UpdateMovingAverages(index);
            CheckAlignments(index);
        }

        private void UpdateBarOpenTimeIndices(int index)
        {
            var barOpenTime = Bars.OpenTimes[index];
            for (var i = 0; i < NumTimeframes; i++)
            {
                barOpenTimeIndices[i] = timeframes[i].OpenTimes.GetIndexByTime(barOpenTime);
                if (barOpenTimeIndices[i] < 0)
                {
                    timeframes[i].LoadMoreHistory();
                    barOpenTimeIndices[i] = timeframes[i].OpenTimes.GetIndexByTime(barOpenTime);
                }
            }
        }

        private void UpdateMovingAverages(int index)
        {
            for (var i = 0; i < NumTimeframes; i++)
            {
                if (barOpenTimeIndices[i] >= 0)
                {
                    slowResults[i][index] = slowMAs[i].Result[barOpenTimeIndices[i]];
                    fastResults[i][index] = fastMAs[i].Result[barOpenTimeIndices[i]];
                }
            }
        }

        private void CheckAlignments(int index)
        {
            var allAlignedNow = AreAllAligned();
            var threeAlignedNow = AreThreeAligned();

            if (index > 0)
            {
                if (allAlignedNow && !AllAligned[index - 1])
                {
                    Chart.DrawIcon(
                        "Arrow" + index,
                        ChartIconType.UpArrow,
                        index,
                        Bars.ClosePrices[index],
                        Color.Yellow
                    );
                }
                else if (threeAlignedNow && !ThreeAligned[index - 1])
                {
                    Chart.DrawIcon(
                        "ArrowWeak" + index,
                        ChartIconType.UpArrow,
                        index,
                        Bars.ClosePrices[index],
                        Color.LightYellow
                    );
                }
            }

            AllAligned[index] = allAlignedNow;
            ThreeAligned[index] = threeAlignedNow;
            Trends[index] = GetTrend();
        }

        private bool AreAllAligned()
        {
            for (var i = 1; i < NumTimeframes; i++)
            {
                if (
                    (
                        fastMAs[i].Result[barOpenTimeIndices[i]]
                        > slowMAs[i].Result[barOpenTimeIndices[i]]
                    )
                    != (
                        fastMAs[0].Result[barOpenTimeIndices[0]]
                        > slowMAs[0].Result[barOpenTimeIndices[0]]
                    )
                )
                {
                    return false;
                }
            }
            return true;
        }

        private bool AreThreeAligned()
        {
            for (var i = 1; i < 3; i++)
            {
                if (
                    (
                        fastMAs[i].Result[barOpenTimeIndices[i]]
                        > slowMAs[i].Result[barOpenTimeIndices[i]]
                    )
                    != (
                        fastMAs[0].Result[barOpenTimeIndices[0]]
                        > slowMAs[0].Result[barOpenTimeIndices[0]]
                    )
                )
                {
                    return false;
                }
            }
            return true;
        }

        private Trend GetTrend()
        {
            if (fastMAs[0].Result.LastValue > slowMAs[0].Result.LastValue)
            {
                return Trend.Up;
            }
            else if (fastMAs[0].Result.LastValue < slowMAs[0].Result.LastValue)
            {
                return Trend.Down;
            }
            else
            {
                return Trend.Neutral;
            }
        }

        public enum Trend
        {
            Up,
            Down,
            Neutral
        }
    }
}
