Overlapping of staticTexts
Created at 12 Jun 2024, 09:41
Overlapping of staticTexts
12 Jun 2024, 09:41
Hello friends,

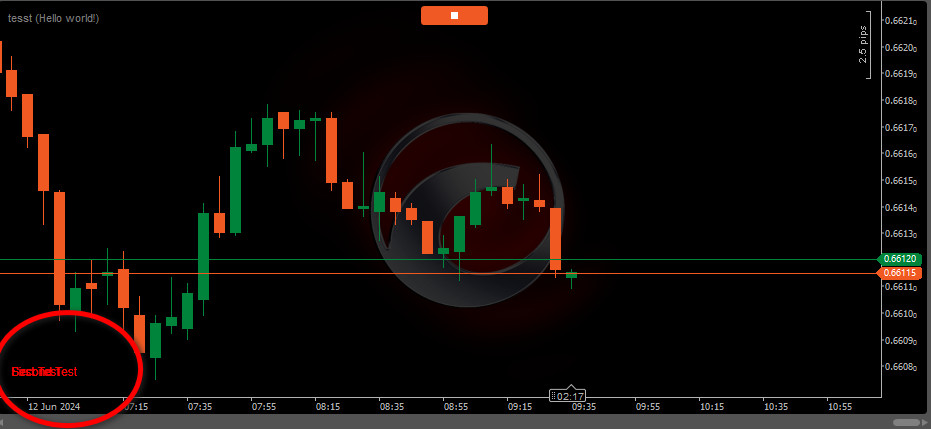

I want to print a text from different indicators on the chart with ChartStaticText, but the texts overlap.
I make sure that they are not the same.
Is there a solution?
public class Sample1 : Indicator
{
protected override void Initialize()
{
Chart.DrawStaticText("Static_Sample"+this.ToString(), "First Test", VerticalAlignment.Bottom, HorizontalAlignment.Left, Color.Red);
}
public override void Calculate(int index)
{
}
}
public class Sample2 : Indicator
{
protected override void Initialize()
{
Chart.DrawStaticText("Static_Sample"+this.ToString(), "Second Test", VerticalAlignment.Bottom, HorizontalAlignment.Left, Color.Red);
}
public override void Calculate(int index)
{
}
}
Replies
PanagiotisCharalampous
13 Jun 2024, 05:36
Hi there,
Another solution would be to create a new indicator referencing all others that would serve only the purpose of text printing. In this indicator, you can create a unified text message and print it.
Best regards,
Panagiotis
@PanagiotisCharalampous
firemyst
13 Jun 2024, 03:37
This has been like this since forever. It isn't a bug, just a use case that was never considered by the Spotware team (I'm guessing)
I've gotten around this by creating a static variable in my custom indicators they all reference when printing out messages. You'll have to manage thread-concurrency issues to make sure no two indicators are writing to it at the same time, but this can be easily overcome too by using a built in thread-safe structure like a ConcurrentDictionary or using global flags.
@firemyst
