Chart.DrawText problems, need some help
Chart.DrawText problems, need some help
23 Aug 2023, 12:14

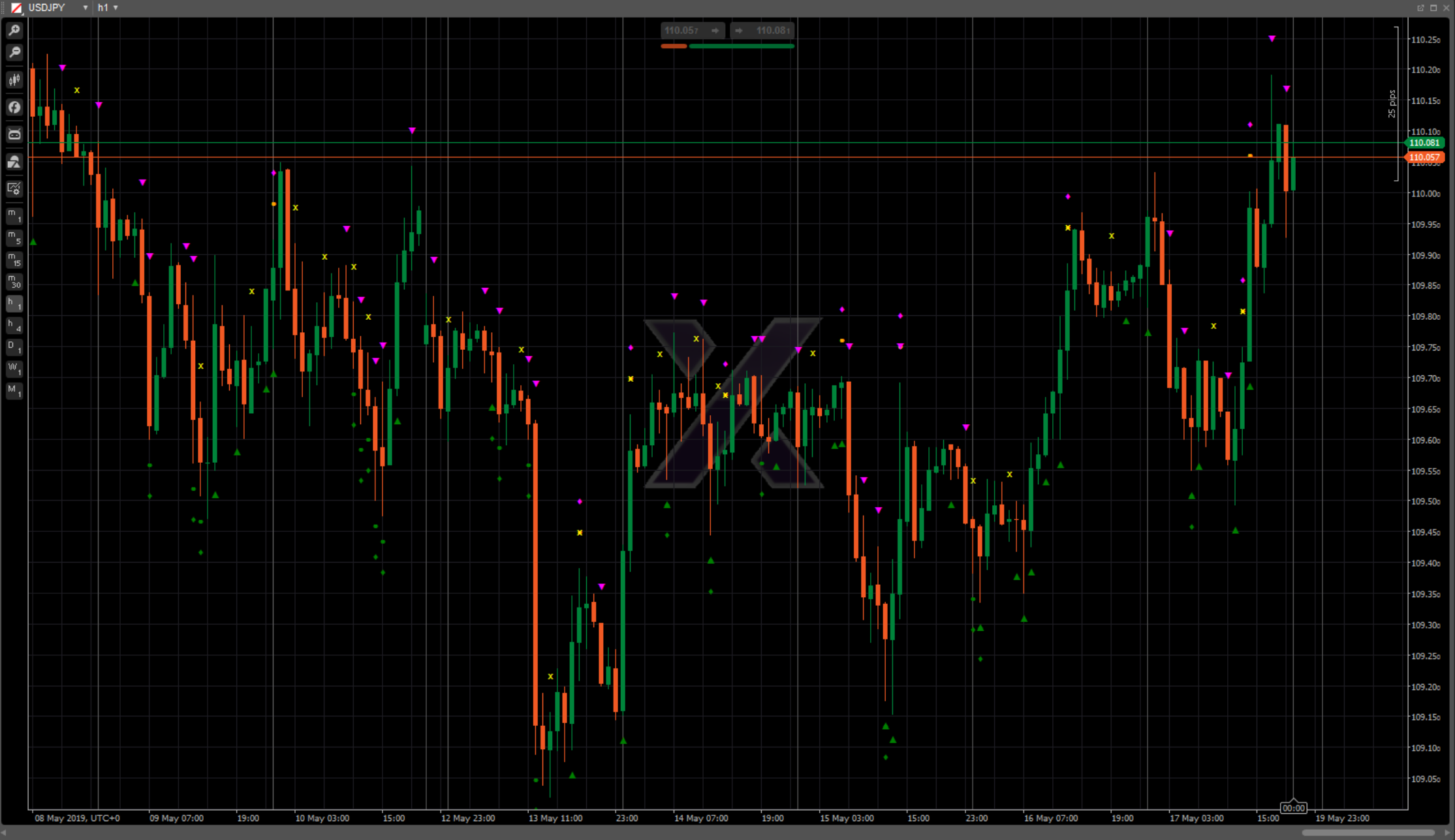

I have searched through the whole internet about how to align Chart.DrawText like the picture1 below and yet I got zero answer,
this is my code
…..
//Initialize
protected override void Initialize()
{
isFB = false;
}
//Calculating
public override void Calculate(int index)
{
// Calculate FB
bool isFBCondition = *all of the calculation………*
isFB = isFBCondition;
//FB Signal
if ( isFB )
{
string textFB = "▲";
double yFB = Bars.LowPrices[index] - Symbol.PipSize * 30;
Color colorFB = Color.Yellow;
Chart.DrawText("FB_Signal" + index, textFB, index, yFB, colorFB);
}
}
…..

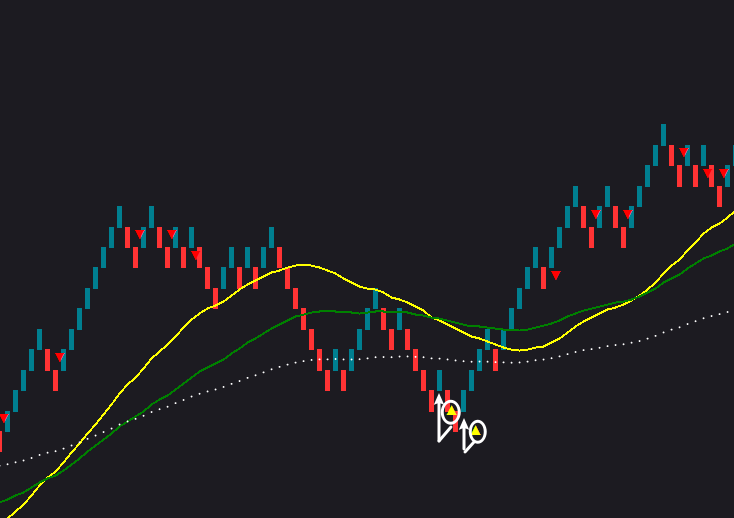

as you can see my arrow is not aligned to the center of the bar where it should be, could anyone help me to fix this?
Replies
firemyst
27 Aug 2023, 15:26
You need to do something like this:
ChartText ct = Chart.DrawText("FB_Signal" + index, textFB, index, yFB, colorFB);
ct.VerticalAlignment = VerticalAlignment.Center;
ct.HorizontalAlignment = HorizontalAlignment.Left;
Play wit the Vertical and Horizontal alignments.
@firemyst
PanagiotisChar
24 Aug 2023, 05:24 ( Updated at: 24 Aug 2023, 05:25 )
Hi there,
Better share the complete indicator code so if there is a bug, Spotware can fix it.
Aieden Technologies
Need help? Join us on Telegram
@PanagiotisChar
