multi timeframe in custom indicator

PanagiotisChar
10 Apr 2023, 08:10

Hi there,

Here you go

            var bars = MarketData.GetBars(TimeFrame.Daily);
            _adx = Indicators.AverageTrueRange(bars, 10, MovingAverageType.Exponential);

Aieden Technologies

Need help? Join us on Telegram

Need premium support? Trade with us

AlgoCreators
11 Apr 2023, 15:58

RE:

PanagiotisChar said:

Hi there,

Here you go

            var bars = MarketData.GetBars(TimeFrame.Daily);
            _adx = Indicators.AverageTrueRange(bars, 10, MovingAverageType.Exponential);

Aieden Technologies

Need help? Join us on Telegram

Need premium support? Trade with us

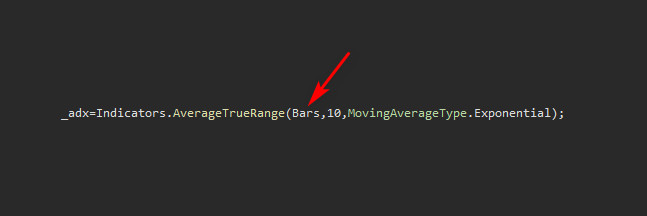

Thanks for the tip you posted but that's not what I meant!
I will explain again:
this is my custom indicator:


using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using cAlgo.API;
using cAlgo.API.Collections;
using cAlgo.API.Indicators;
using cAlgo.API.Internals;

namespace cAlgo.Indicators
{
    [Indicator(AccessRights = AccessRights.None, IsOverlay = false)]
    public class CandleSizeMoving : Indicator
    {

        [Parameter("Candle Period", DefaultValue = 3)]
        public int CandlePeriod { get; set; }


        [Parameter("Moving Period", Group = "Moving Average", DefaultValue = 200)]
        public int MAPeriod { get; set; }


        [Output("Main")]
        public IndicatorDataSeries Result { get; set; }
        [Output("small", LineColor = "Aqua")]
        public IndicatorDataSeries Moving { get; set; }
        private MovingAverage MA { get; set; }


        protected override void Initialize()
        {
            MA = Indicators.MovingAverage(Result, MAPeriod, MovingAverageType.Exponential);
        }

        public override void Calculate(int index)
        {
            double t_body = 0.0;
            for (int i = CandlePeriod; i > 0; i--)
                t_body += Math.Abs(Bars.HighPrices[index - i] - Bars.LowPrices[index - i]) / Symbol.PipSize;

            Result[index] = t_body / CandlePeriod;
            Moving[index] = MA.Result[index];
        }
    }
}

And I want my indicator to have the ability retrieve OHLCV data for multiple timeframes, like other indicators

PanagiotisChar
11 Apr 2023, 16:03

Hi there,

You need to retrieve the bars as in my example above and use them to do your calculations instead of Bars.

Aieden Technologies

Need help? Join us on Telegram

Need premium support? Trade with us

VEI5S6C4OUNT0
01 Jun 2023, 09:55

Multible Time frames ?

when I was playing with Wiliams Wild Smooth I found that by using simple math it can show what would be on other time frames

For example Use a Simple MA and times by up to the next time frame requiered

1M chart with 15M results over lay like say you want to see a Moving avarage of 21p on a 15m and show this on the 1m

Then set the SMA to 315p ( 21 x 15 = 315 )

there is an indicator that shows the other times as bars but I did not like it as it is just Highs and Lows that I can all ready see with multible charts and monitors.

firemyst
02 Jun 2023, 10:34

You can also check out the examples Spotware provided:
