fractal break pattern

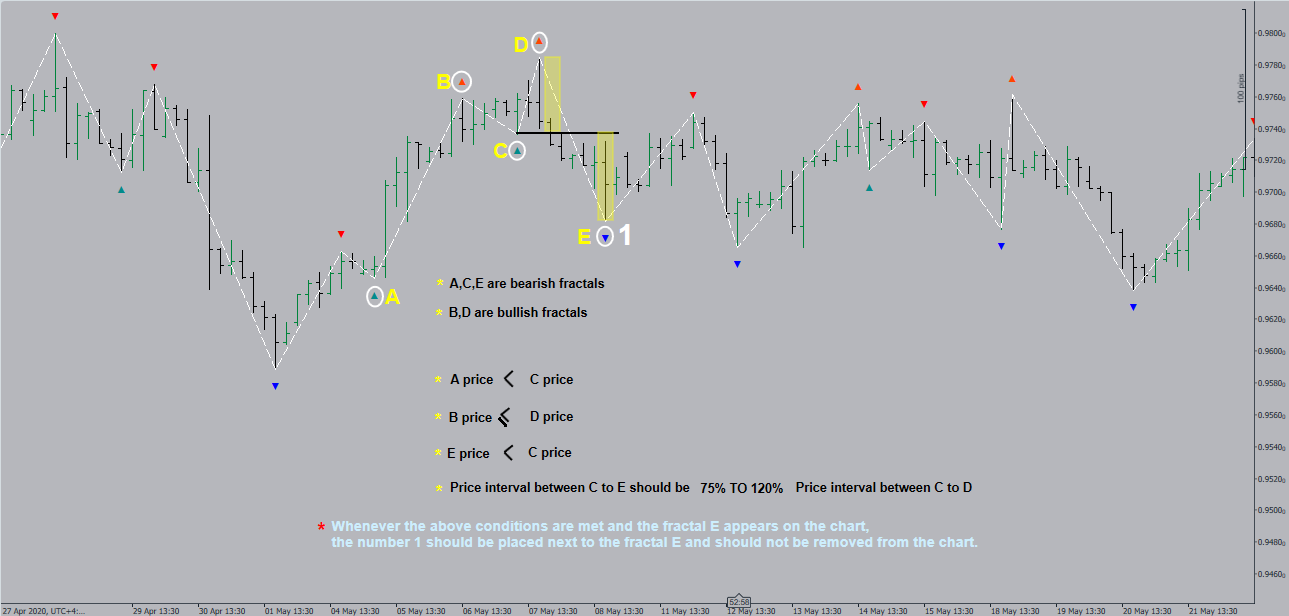

Hello . Who can help me? I have an indicator, the source code of which you will see below. I want to add the conditions I mentioned in the image below to this indicator in the form of a few lines of code.

source code is :



using System;

using cAlgo.API;

using cAlgo.Indicators;



namespace cAlgo

{

    /**

     * FullFractal - Version 1.4

     */

    [Indicator(IsOverlay = true, TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]

    public class FullFractal : Indicator

    {

        [Parameter("Period", DefaultValue = 5, MinValue = 5)]

        public int period { get; set; }



        [Parameter("Highlight bad fractals", DefaultValue = true)]

        public bool highlightBadFractals { get; set; }



        [Parameter("Draw circles", DefaultValue = true)]

        public bool drawCircles { get; set; }



        [Parameter("Draw errors", DefaultValue = true)]

        public bool drawArrows { get; set; }



        [Output("High continuation line", Color = Colors.Blue, PlotType = PlotType.Line, LineStyle = LineStyle.Dots)]

        public IndicatorDataSeries horizontalContinuationLineHigh { get; set; }



        [Output("Low continuation line", Color = Colors.Orange, PlotType = PlotType.Line, LineStyle = LineStyle.Dots)]

        public IndicatorDataSeries horizontalContinuationLineLow { get; set; }



        [Output("High-Low line", Color = Colors.White, PlotType = PlotType.Line, LineStyle = LineStyle.Lines)]

        public IndicatorDataSeries highLowLink { get; set; }



        [Parameter("Play sound on new High ...\n(i.e: C:\\Windows\\Media\\chimes.wav)", DefaultValue = "")]

        public string newHighSound { get; set; }



        [Parameter("Play sound on new Low ...\n(i.e: C:\\Windows\\Media\\chord.wav)", DefaultValue = "")]

        public string newLowSound { get; set; }



        [Parameter("Send notification to email", DefaultValue = "")]

        public string emailNewFractalNotificationTo { get; set; }





        private const String arrowUp = "▲";

        private const String arrowDown = "▼";

        private const String circle = "◯";

        private FractalService fractalService;



        protected override void Initialize()

        {

            fractalService = new FractalService(MarketSeries, period);

            fractalService.onFractal(newFractalHandler);

        }



        public override void Calculate(int index)

        {

            int effectiveIndex = index - 1;



            fractalService.processIndex(effectiveIndex);

            printHorizontal(index);

        }



        private void printHorizontal(int index)

        {

            Fractal lastfractal = fractalService.getLastFractal();

            if (lastfractal == null)

                return;

            Fractal previousFractal = fractalService.getLastFractal().getPrevious();

            if (previousFractal == null)

                return;

            Fractal highFractal = lastfractal.high ? lastfractal : previousFractal;

            Fractal lowFractal = lastfractal.low ? lastfractal : previousFractal;



            double highestHighValue = highFractal.value;

            double lowestLowValue = lowFractal.value;

            highestHighValue = adjustCurrentHigh(index, highFractal, highestHighValue, lowFractal, ref lowestLowValue);



            for (int i = highFractal.index + 1; i < index; i++)

                horizontalContinuationLineHigh[i] = highestHighValue;

            for (int i = lowFractal.index + 1; i < index; i++)

                horizontalContinuationLineLow[i] = lowestLowValue;

        }



        private double adjustCurrentHigh(int index, Fractal highFractal, double highestHighValue, Fractal lowFractal, ref double lowestLowValue)

        {

            for (int i = highFractal.index; i < index; i++)

                if (MarketSeries.High[i] > highestHighValue)

                    highestHighValue = MarketSeries.High[i];

            for (int i = lowFractal.index; i < index; i++)

                if (MarketSeries.Low[i] < lowestLowValue)

                    lowestLowValue = MarketSeries.Low[i];

            return highestHighValue;

        }





        private void newFractalHandler(FractalEvent fractalEvent)

        {

            Fractal fractal = fractalEvent.fractal.getBest();



            drawCircle(fractal);



            linkHighs(fractalEvent);

            linkLows(fractalEvent);

            linkFractals(fractalEvent);



            if (drawArrows)

                plotArrow(fractal);



            if (!IsRealTime)

                return;



            sendEmailNotification(fractal);

            playSoundNotification(fractal);

        }



        private void playSoundNotification(Fractal fractal)

        {

            if (fractal.high && newHighSound.Length > 0)

                Notifications.PlaySound(newHighSound);

            else if (fractal.low && newLowSound.Length > 0)

                Notifications.PlaySound(newLowSound);

        }



        private void sendEmailNotification(Fractal fractal)

        {

            string fractalType;

            if (fractal.getFractalType() == FractalType.HigherHigh)

                fractalType = "higher high";

            else if (fractal.getFractalType() == FractalType.HigherLow)

                fractalType = "higher low";

            else if (fractal.getFractalType() == FractalType.LowerHigh)

                fractalType = "lower high";

            else

                fractalType = "lower low";



            string notificationEmailBody = "You have a new " + fractalType + " fractal on symbol " + Symbol.Code + ".";

            if (emailNewFractalNotificationTo.Length > 0)

            {

                Print("Sending email to {0}", emailNewFractalNotificationTo);

                Notifications.SendEmail(emailNewFractalNotificationTo, emailNewFractalNotificationTo, "New " + fractalType + " fractal", notificationEmailBody);

            }

        }



        private void drawCircle(Fractal fractal)

        {

            if (drawCircles)

                ChartObjects.DrawText(getCircleLabel(fractal), circle, fractal.index, fractal.value, VerticalAlignment.Center, HorizontalAlignment.Center, Colors.Aqua);



            Fractal previous = fractal.getPreviousOfSameSide();

            if (previous != null)

            {

                foreach (Fractal badFractal in fractal.getBadFractals())

                {

                    if (drawCircles)

                        ChartObjects.RemoveObject(getCircleLabel(badFractal));

                    if (!highlightBadFractals)

                        ChartObjects.RemoveObject(getArrowLabel(badFractal));

                    if (highlightBadFractals)

                        ChartObjects.DrawText(getCircleLabel(badFractal), circle, badFractal.index, badFractal.value, VerticalAlignment.Center, HorizontalAlignment.Center, Colors.Red);



                }

            }

        }



        private static string getCircleLabel(Fractal fractal)

        {

            return "circle-" + (fractal.high ? "H" : "L") + "-" + fractal.index;

        }



        private void linkHighs(FractalEvent fractalEvent)

        {

            Fractal fractal = fractalEvent.fractal.getBest();

            Fractal previous = fractal.getPreviousOfSameSide();

            if (fractal.high && previous != null)

            {

                double highest = Math.Max(fractal.value, previous.value);

                for (int i = previous.index + 1; i < fractal.index; i++)

                    horizontalContinuationLineHigh[i] = highest;



                for (int i = fractal.index; i < fractalEvent.index; i++)

                    horizontalContinuationLineHigh[i] = fractal.value;

            }

        }



        private void linkFractals(FractalEvent fractalEvent)

        {

            Fractal fractal = fractalEvent.fractal.getBest();

            Fractal previous = fractal.getPrevious();

            if (previous != null)

            {

                for (int i = previous.index + 1; i < fractal.index; i++)

                    highLowLink[i] = Double.NaN;



                highLowLink[previous.index] = previous.value;

                highLowLink[fractal.index] = fractal.value;

            }

        }



        private void linkLows(FractalEvent fractalEvent)

        {

            Fractal fractal = fractalEvent.fractal.getBest();

            Fractal previous = fractal.getPreviousOfSameSide();

            if (fractal.low && previous != null)

            {

                double lowest = Math.Min(fractal.value, previous.value);

                for (int i = previous.index + 1; i < fractal.index; i++)

                    horizontalContinuationLineLow[i] = lowest;



                for (int i = fractal.index; i < fractalEvent.index; i++)

                    horizontalContinuationLineLow[i] = fractal.value;

            }

        }



        private void plotArrow(Fractal fractal)

        {

            String arrow = fractal.isHigher() ? arrowUp : arrowDown;

            Colors color = getArrowColor(fractal);

            ChartObjects.DrawText(getArrowLabel(fractal), arrow, fractal.index, getTextPosition(fractal, 0.9), VerticalAlignment.Center, HorizontalAlignment.Center, color);

        }



        private static string getArrowLabel(Fractal fractal)

        {

            return "arrow-" + (fractal.high ? "high" : "low") + "-" + fractal.index;

        }



        private double getTextPosition(Fractal fractal, double offsetMultiplier = 2)

        {

            double peakValue = fractal.high ? MarketSeries.High[fractal.index] : MarketSeries.Low[fractal.index];

            double distanceToBar = Symbol.PipSize * ScaleHelper.getScale(TimeFrame) * offsetMultiplier;

            double yPos = peakValue + distanceToBar * (fractal.high ? 1 : -1);

            return yPos;

        }



        private static Colors getArrowColor(Fractal fractal)

        {

            switch (fractal.getFractalType())

            {

                case FractalType.HigherHigh:

                    return Colors.OrangeRed;

                case FractalType.LowerHigh:

                    return Colors.Red;

                case FractalType.HigherLow:

                    return Colors.DarkCyan;

                case FractalType.LowerLow:

                    return Colors.Blue;

            }



            return Colors.White;

        }

    }

}
