Create an allert for the Ichimoku kinku hyo indicator
12 May 2022, 17:46

hi . Who can help me?

I would like to add a code to the Ichimoku Kinko Hyo Indicator that gives SOUND & GMAIL ALLERT in all time frame , under the following conditions:
1- Bullish cross in which Tenkansen Creates high but Kijunsen loses high.
2.  bearish cross in which Tenkensen  Creates Low but Kijunsen loses low.

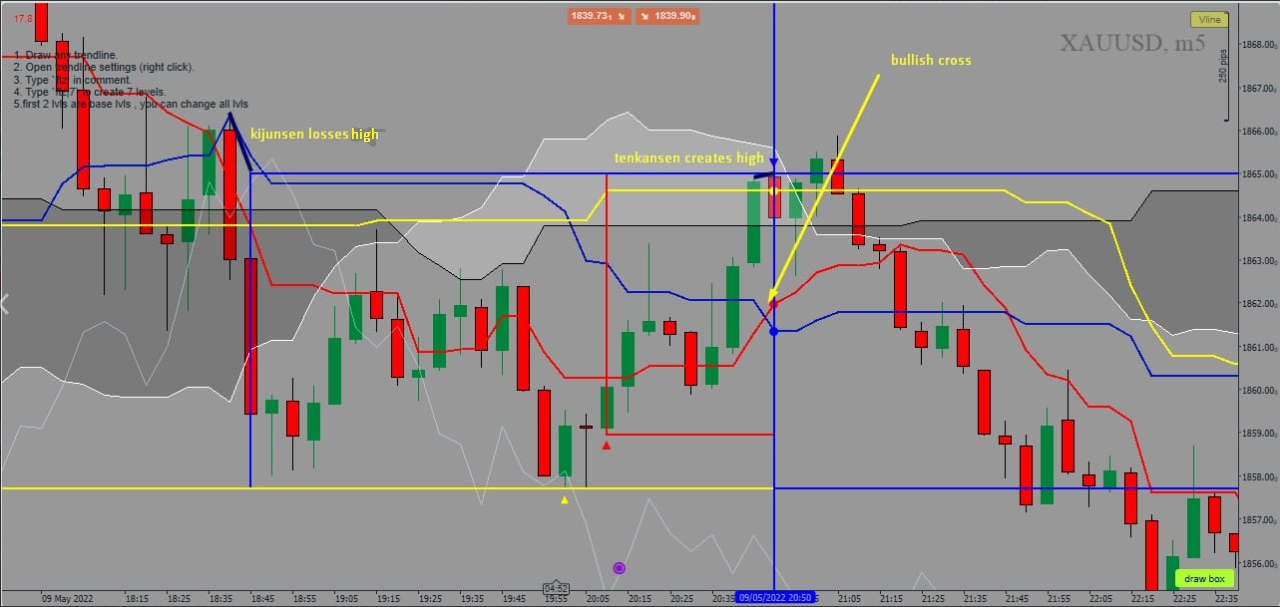

*bullish cross :

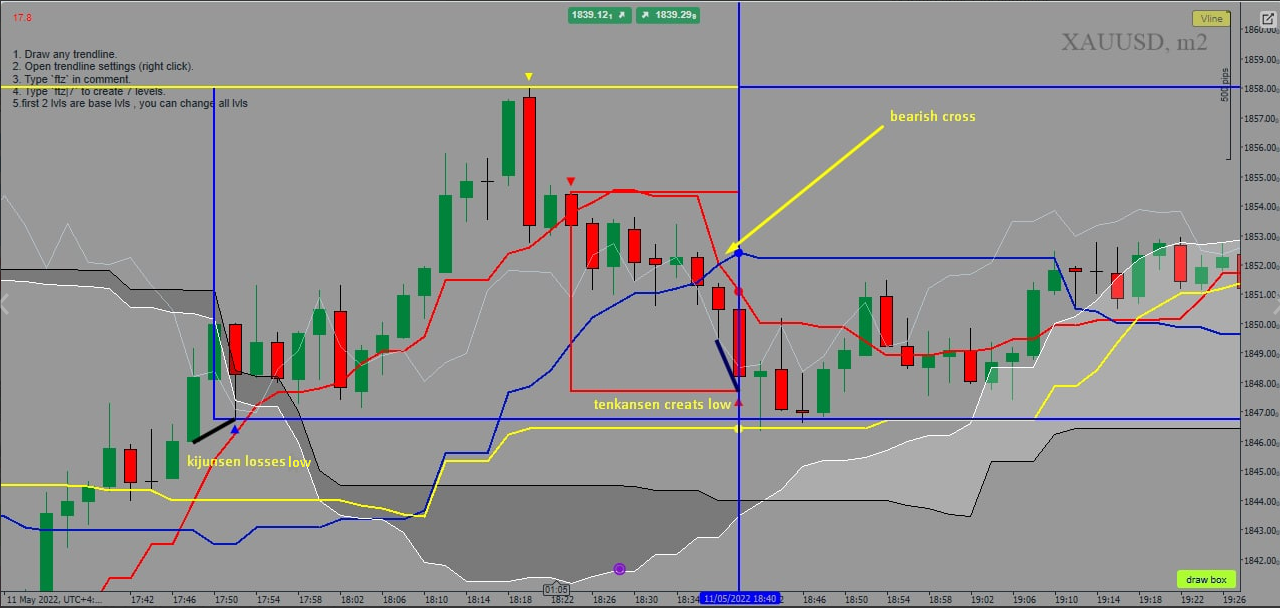

 *bearish cross :





The Ichimoku indicator code is below:



using System;
using cAlgo.API;
using cAlgo.API.Indicators;

namespace cAlgo.Indicators

{
    [Indicator(IsOverlay = true, AccessRights = AccessRights.None)]
    public class IchimokuKinkoHyo : Indicator

    {
        [Parameter(DefaultValue = 9)]
        public int periodFast { get; set; }

        [Parameter(DefaultValue = 26)]
        public int periodMedium { get; set; }

        [Parameter(DefaultValue = 52)]
        public int periodSlow { get; set; }

        [Parameter(DefaultValue = 26)]
        public int DisplacementChikou { get; set; }

        [Parameter(DefaultValue = 26)]
        public int DisplacementCloud { get; set; }

        [Output("TenkanSen", Color = Colors.Red)]
        public IndicatorDataSeries TenkanSen { get; set; }

        [Output("Kijunsen", Color = Colors.Blue)]
        public IndicatorDataSeries KijunSen { get; set; }

        [Output("ChikouSpan", Color = Colors.DarkViolet)]
        public IndicatorDataSeries ChikouSpan { get; set; }

        [Output("SenkouSpanB", Color = Colors.Red, LineStyle = LineStyle.Lines)]
        public IndicatorDataSeries SenkouSpanB { get; set; }

        [Output("SenkouSpanA", Color = Colors.Green, LineStyle = LineStyle.Lines)]
        public IndicatorDataSeries SenkouSpanA { get; set; }

        private double maxfast, minfast, maxmedium, minmedium, maxslow, minslow;

        public override void Calculate(int index)

        {
            if ((index < periodFast) || (index < periodSlow)) { return; }

            maxfast = MarketSeries.High[index];

            minfast = MarketSeries.Low[index];

            maxmedium = MarketSeries.High[index];

            minmedium = MarketSeries.Low[index];

            maxslow = MarketSeries.High[index];

            minslow = MarketSeries.Low[index];

            for (int i = 0; i < periodFast; i++)

            {
                if (maxfast < MarketSeries.High[index - i]) { maxfast = MarketSeries.High[index - i]; }

                if (minfast > MarketSeries.Low[index - i]) { minfast = MarketSeries.Low[index - i]; }
            }

            for (int i = 0; i < periodMedium; i++)

            {
                if (maxmedium < MarketSeries.High[index - i]) { maxmedium = MarketSeries.High[index - i]; }

                if (minmedium > MarketSeries.Low[index - i]) { minmedium = MarketSeries.Low[index - i]; }
            }

            for (int i = 0; i < periodSlow; i++)

            {
                if (maxslow < MarketSeries.High[index - i]) { maxslow = MarketSeries.High[index - i]; }

                if (minslow > MarketSeries.Low[index - i]) { minslow = MarketSeries.Low[index - i]; }
            }

            TenkanSen[index] = (maxfast + minfast) / 2;

            KijunSen[index] = (maxmedium + minmedium) / 2;

            ChikouSpan[index - DisplacementChikou] = MarketSeries.Close[index];

            SenkouSpanA[index + DisplacementCloud] = (TenkanSen[index] + KijunSen[index]) / 2;

            SenkouSpanB[index + DisplacementCloud] = (maxslow + minslow) / 2;
        }
    }
}



@safaeianmohsen
Replies

amusleh
13 May 2022, 10:32

Hi,

Try this:

using System;
using cAlgo.API;
using cAlgo.API.Indicators;

namespace cAlgo.Indicators

{
    [Indicator(IsOverlay = true, AccessRights = AccessRights.None)]
    public class IchimokuKinkoHyo : Indicator
    {
        private int _lastAlertBar;

        [Parameter(DefaultValue = 9)]
        public int periodFast { get; set; }

        [Parameter(DefaultValue = 26)]
        public int periodMedium { get; set; }

        [Parameter(DefaultValue = 52)]
        public int periodSlow { get; set; }

        [Parameter(DefaultValue = 26)]
        public int DisplacementChikou { get; set; }

        [Parameter(DefaultValue = 26)]
        public int DisplacementCloud { get; set; }

        [Parameter("Enable", DefaultValue = true, Group = "Alert")]
        public bool IsAlertEnabled { get; set; }

        [Parameter("Sound File Path", Group = "Alert")]
        public string SoundFilePath { get; set; }

        [Parameter("From Email", Group = "Alert")]
        public string FromEmail { get; set; }

        [Parameter("To Email", Group = "Alert")]
        public string ToEmail { get; set; }

        [Output("TenkanSen", Color = Colors.Red)]
        public IndicatorDataSeries TenkanSen { get; set; }

        [Output("Kijunsen", Color = Colors.Blue)]
        public IndicatorDataSeries KijunSen { get; set; }

        [Output("ChikouSpan", Color = Colors.DarkViolet)]
        public IndicatorDataSeries ChikouSpan { get; set; }

        [Output("SenkouSpanB", Color = Colors.Red, LineStyle = LineStyle.Lines)]
        public IndicatorDataSeries SenkouSpanB { get; set; }

        [Output("SenkouSpanA", Color = Colors.Green, LineStyle = LineStyle.Lines)]
        public IndicatorDataSeries SenkouSpanA { get; set; }

        private double maxfast, minfast, maxmedium, minmedium, maxslow, minslow;

        public override void Calculate(int index)

        {
            if ((index < periodFast) || (index < periodSlow)) { return; }

            maxfast = MarketSeries.High[index];

            minfast = MarketSeries.Low[index];

            maxmedium = MarketSeries.High[index];

            minmedium = MarketSeries.Low[index];

            maxslow = MarketSeries.High[index];

            minslow = MarketSeries.Low[index];

            for (int i = 0; i < periodFast; i++)

            {
                if (maxfast < MarketSeries.High[index - i]) { maxfast = MarketSeries.High[index - i]; }

                if (minfast > MarketSeries.Low[index - i]) { minfast = MarketSeries.Low[index - i]; }
            }

            for (int i = 0; i < periodMedium; i++)

            {
                if (maxmedium < MarketSeries.High[index - i]) { maxmedium = MarketSeries.High[index - i]; }

                if (minmedium > MarketSeries.Low[index - i]) { minmedium = MarketSeries.Low[index - i]; }
            }

            for (int i = 0; i < periodSlow; i++)

            {
                if (maxslow < MarketSeries.High[index - i]) { maxslow = MarketSeries.High[index - i]; }

                if (minslow > MarketSeries.Low[index - i]) { minslow = MarketSeries.Low[index - i]; }
            }

            TenkanSen[index] = (maxfast + minfast) / 2;

            KijunSen[index] = (maxmedium + minmedium) / 2;

            ChikouSpan[index - DisplacementChikou] = MarketSeries.Close[index];

            SenkouSpanA[index + DisplacementCloud] = (TenkanSen[index] + KijunSen[index]) / 2;

            SenkouSpanB[index + DisplacementCloud] = (maxslow + minslow) / 2;

            if (IsLastBar && IsAlertEnabled && _lastAlertBar != index)
            {
                _lastAlertBar = index;

                if (TenkanSen.HasCrossedAbove(KijunSen, 0))
                {
                    Notifications.PlaySound(SoundFilePath);
                    Notifications.SendEmail(FromEmail, ToEmail, "Ichimoku kinku hyo Alert | Bullish", "TenkanSen crossed above KijunSen");
                }
                else if (TenkanSen.HasCrossedBelow(KijunSen, 0))
                {
                    Notifications.PlaySound(SoundFilePath);
                    Notifications.SendEmail(FromEmail, ToEmail, "Ichimoku kinku hyo Alert | Bearish", "TenkanSen crossed below KijunSen");
                }
            }
        }
    }
}

For email notification to work you have to first configure your cTrader email notification settings.

@amusleh

safaeianmohsen
18 Jun 2022, 08:04 ( Updated at: 18 Jun 2022, 08:06 )

RE: no allert

hi dear ahmad . I ran the code and it was active on the chart for a long time. Unfortunately, no sound allert was received at the target points. What is the problem? Do I have to make certain settings in C Trader to receive the sound alarm?

Hi,

Try this:

using System;
using cAlgo.API;
using cAlgo.API.Indicators;

namespace cAlgo.Indicators

{
    [Indicator(IsOverlay = true, AccessRights = AccessRights.None)]
    public class IchimokuKinkoHyo : Indicator
    {
        private int _lastAlertBar;

        [Parameter(DefaultValue = 9)]
        public int periodFast { get; set; }

        [Parameter(DefaultValue = 26)]
        public int periodMedium { get; set; }

        [Parameter(DefaultValue = 52)]
        public int periodSlow { get; set; }

        [Parameter(DefaultValue = 26)]
        public int DisplacementChikou { get; set; }

        [Parameter(DefaultValue = 26)]
        public int DisplacementCloud { get; set; }

        [Parameter("Enable", DefaultValue = true, Group = "Alert")]
        public bool IsAlertEnabled { get; set; }

        [Parameter("Sound File Path", Group = "Alert")]
        public string SoundFilePath { get; set; }

        [Parameter("From Email", Group = "Alert")]
        public string FromEmail { get; set; }

        [Parameter("To Email", Group = "Alert")]
        public string ToEmail { get; set; }

        [Output("TenkanSen", Color = Colors.Red)]
        public IndicatorDataSeries TenkanSen { get; set; }

        [Output("Kijunsen", Color = Colors.Blue)]
        public IndicatorDataSeries KijunSen { get; set; }

        [Output("ChikouSpan", Color = Colors.DarkViolet)]
        public IndicatorDataSeries ChikouSpan { get; set; }

        [Output("SenkouSpanB", Color = Colors.Red, LineStyle = LineStyle.Lines)]
        public IndicatorDataSeries SenkouSpanB { get; set; }

        [Output("SenkouSpanA", Color = Colors.Green, LineStyle = LineStyle.Lines)]
        public IndicatorDataSeries SenkouSpanA { get; set; }

        private double maxfast, minfast, maxmedium, minmedium, maxslow, minslow;

        public override void Calculate(int index)

        {
            if ((index < periodFast) || (index < periodSlow)) { return; }

            maxfast = MarketSeries.High[index];

            minfast = MarketSeries.Low[index];

            maxmedium = MarketSeries.High[index];

            minmedium = MarketSeries.Low[index];

            maxslow = MarketSeries.High[index];

            minslow = MarketSeries.Low[index];

            for (int i = 0; i < periodFast; i++)

            {
                if (maxfast < MarketSeries.High[index - i]) { maxfast = MarketSeries.High[index - i]; }

                if (minfast > MarketSeries.Low[index - i]) { minfast = MarketSeries.Low[index - i]; }
            }

            for (int i = 0; i < periodMedium; i++)

            {
                if (maxmedium < MarketSeries.High[index - i]) { maxmedium = MarketSeries.High[index - i]; }

                if (minmedium > MarketSeries.Low[index - i]) { minmedium = MarketSeries.Low[index - i]; }
            }

            for (int i = 0; i < periodSlow; i++)

            {
                if (maxslow < MarketSeries.High[index - i]) { maxslow = MarketSeries.High[index - i]; }

                if (minslow > MarketSeries.Low[index - i]) { minslow = MarketSeries.Low[index - i]; }
            }

            TenkanSen[index] = (maxfast + minfast) / 2;

            KijunSen[index] = (maxmedium + minmedium) / 2;

            ChikouSpan[index - DisplacementChikou] = MarketSeries.Close[index];

            SenkouSpanA[index + DisplacementCloud] = (TenkanSen[index] + KijunSen[index]) / 2;

            SenkouSpanB[index + DisplacementCloud] = (maxslow + minslow) / 2;

            if (IsLastBar && IsAlertEnabled && _lastAlertBar != index)
            {
                _lastAlertBar = index;

                if (TenkanSen.HasCrossedAbove(KijunSen, 0))
                {
                    Notifications.PlaySound(SoundFilePath);
                    Notifications.SendEmail(FromEmail, ToEmail, "Ichimoku kinku hyo Alert | Bullish", "TenkanSen crossed above KijunSen");
                }
                else if (TenkanSen.HasCrossedBelow(KijunSen, 0))
                {
                    Notifications.PlaySound(SoundFilePath);
                    Notifications.SendEmail(FromEmail, ToEmail, "Ichimoku kinku hyo Alert | Bearish", "TenkanSen crossed below KijunSen");
                }
            }
        }
    }
}

For email notification to work you have to first configure your cTrader email notification settings.



@safaeianmohsen

amusleh
20 Jun 2022, 09:36

Hi,

I just tested it on Visual Back test mode, and it plays the alert sound, you have to set the Sound File Path parameter to the path of a .WAV sound file and then it will play it if two lines cross each other.

@amusleh
