stochastic multitime

Created at 12 Aug 2021, 09:07

Joined 17.06.2021

stochastic multitime
12 Aug 2021, 09:07

i create stochastic mtf but i have a problem with that. the line is not that exact thing that i want. iuse below code and this make line number 1 picture. i wnat like be the secong picture.

using System;
using cAlgo.API;
using cAlgo.API.Internals;
using cAlgo.API.Indicators;
using cAlgo.Indicators;

namespace cAlgo
{
    [Indicator(IsOverlay = false, TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
    public class AWMACDMTF : Indicator
    {
        private StochasticOscillator _stoch;

        private Bars _baseTimeFrameBars;
        // you could change default Value to Minute,Minute15,Hour2 and ...
        [Parameter("Base Timeframe", DefaultValue = "Minute15")]
        public TimeFrame BaseTimeFrame { get; set; }

        [Parameter("K%", DefaultValue = 5)]
        public int kPeriod { get; set; }

        [Parameter("K slowing", DefaultValue = 3)]
        public int kslowing { get; set; }

        [Parameter("D%", DefaultValue = 3)]
        public int dPeriod { get; set; }


        [Output("K%,", LineColor = "Red", LineStyle = LineStyle.Solid, Thickness = 2)]
        public IndicatorDataSeries k_Line { get; set; }

        [Output("D%,", LineColor = "Blue", LineStyle = LineStyle.Solid, Thickness = 2)]
        public IndicatorDataSeries d_Line { get; set; }



        protected override void Initialize()
        {
            _baseTimeFrameBars = MarketData.GetBars(BaseTimeFrame);

//_baseTimeFrameBars.ClosePrices

            _stoch = Indicators.StochasticOscillator(Bars, kPeriod, kslowing, dPeriod, MovingAverageType.Simple);
        }

        public override void Calculate(int index)
        {
            var baseSeriesIndex = _baseTimeFrameBars.OpenTimes.GetIndexByTime(Bars.OpenTimes[index]);
            k_Line[index] = _stoch.PercentK[baseSeriesIndex];
            d_Line[index] = _stoch.PercentD[baseSeriesIndex];
        }


    }
}

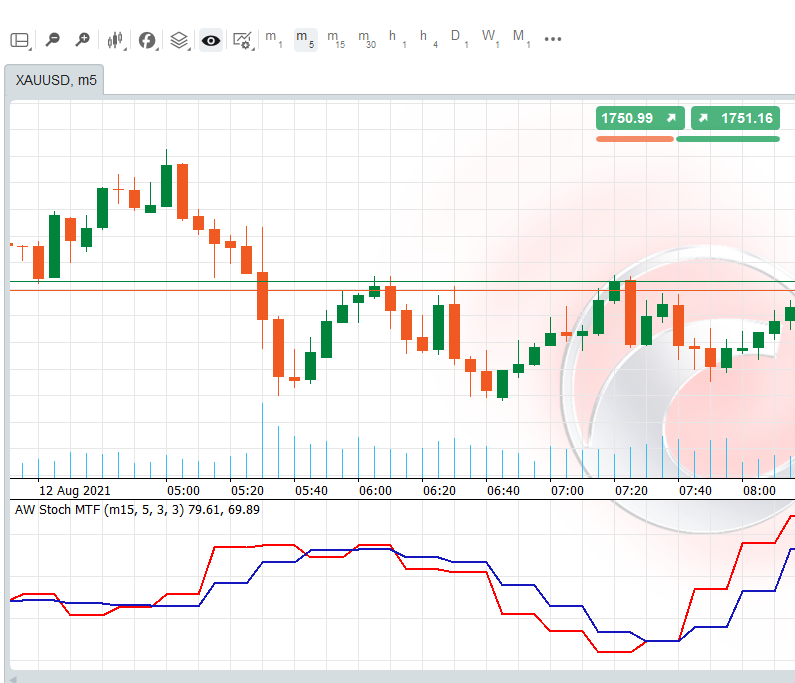

my indicator

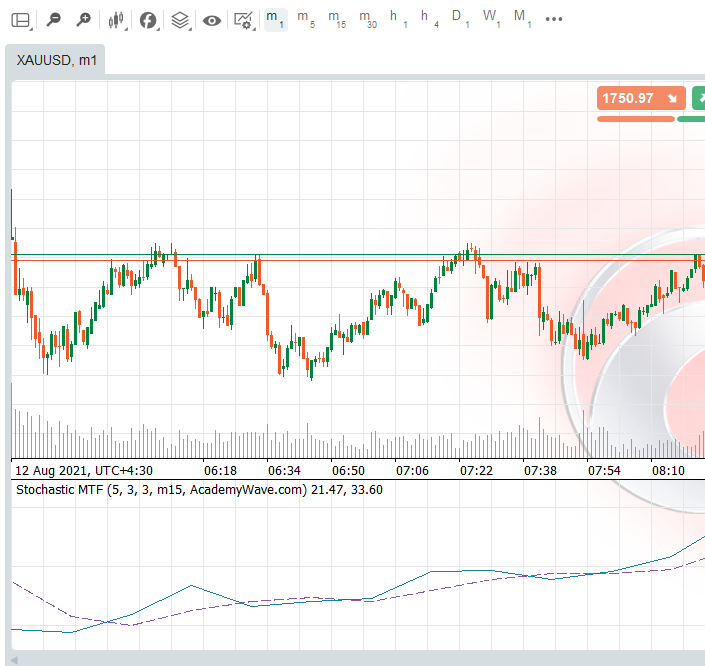

i want to be like below picture.

@IRCtrader

Replies

... Deleted by UFO ...

amusleh
12 Aug 2021, 20:21

Hi,

Try this:

using System;
using cAlgo.API;
using cAlgo.API.Internals;
using cAlgo.API.Indicators;
using cAlgo.Indicators;

namespace cAlgo
{
    [Indicator(IsOverlay = false, TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
    public class AWMACDMTF : Indicator
    {
        private StochasticOscillator _stoch;

        private Bars _baseTimeFrameBars;

        // you could change default Value to Minute,Minute15,Hour2 and ...
        [Parameter("Base Timeframe", DefaultValue = "Minute15")]
        public TimeFrame BaseTimeFrame { get; set; }

        [Parameter("K%", DefaultValue = 5)]
        public int kPeriod { get; set; }

        [Parameter("K slowing", DefaultValue = 3)]
        public int kslowing { get; set; }

        [Parameter("D%", DefaultValue = 3)]
        public int dPeriod { get; set; }

        [Output("K%,", LineColor = "Red", LineStyle = LineStyle.Solid, Thickness = 2)]
        public IndicatorDataSeries k_Line { get; set; }

        [Output("D%,", LineColor = "Blue", LineStyle = LineStyle.Solid, Thickness = 2)]
        public IndicatorDataSeries d_Line { get; set; }

        protected override void Initialize()
        {
            _baseTimeFrameBars = MarketData.GetBars(BaseTimeFrame);

            _stoch = Indicators.StochasticOscillator(_baseTimeFrameBars, kPeriod, kslowing, dPeriod, MovingAverageType.Simple);
        }

        public override void Calculate(int index)
        {
            var baseSeriesIndex = _baseTimeFrameBars.OpenTimes.GetIndexByTime(Bars.OpenTimes[index]);
            k_Line[index] = _stoch.PercentK[baseSeriesIndex];
            d_Line[index] = _stoch.PercentD[baseSeriesIndex];
        }
    }
}

@amusleh

IRCtrader
12 Aug 2021, 22:04 ( Updated at: 21 Dec 2023, 09:22 )

RE:

amusleh said:

Hi,

Try this:

using System;
using cAlgo.API;
using cAlgo.API.Internals;
using cAlgo.API.Indicators;
using cAlgo.Indicators;

namespace cAlgo
{
    [Indicator(IsOverlay = false, TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
    public class AWMACDMTF : Indicator
    {
        private StochasticOscillator _stoch;

        private Bars _baseTimeFrameBars;

        // you could change default Value to Minute,Minute15,Hour2 and ...
        [Parameter("Base Timeframe", DefaultValue = "Minute15")]
        public TimeFrame BaseTimeFrame { get; set; }

        [Parameter("K%", DefaultValue = 5)]
        public int kPeriod { get; set; }

        [Parameter("K slowing", DefaultValue = 3)]
        public int kslowing { get; set; }

        [Parameter("D%", DefaultValue = 3)]
        public int dPeriod { get; set; }

        [Output("K%,", LineColor = "Red", LineStyle = LineStyle.Solid, Thickness = 2)]
        public IndicatorDataSeries k_Line { get; set; }

        [Output("D%,", LineColor = "Blue", LineStyle = LineStyle.Solid, Thickness = 2)]
        public IndicatorDataSeries d_Line { get; set; }

        protected override void Initialize()
        {
            _baseTimeFrameBars = MarketData.GetBars(BaseTimeFrame);

            _stoch = Indicators.StochasticOscillator(_baseTimeFrameBars, kPeriod, kslowing, dPeriod, MovingAverageType.Simple);
        }

        public override void Calculate(int index)
        {
            var baseSeriesIndex = _baseTimeFrameBars.OpenTimes.GetIndexByTime(Bars.OpenTimes[index]);
            k_Line[index] = _stoch.PercentK[baseSeriesIndex];
            d_Line[index] = _stoch.PercentD[baseSeriesIndex];
        }
    }
}

your code is like my code. i want indicotr be like the second picture that i placed in first post.

@IRCtrader
