is it a bug with plottype
is it a bug with plottype
28 Jul 2021, 14:15

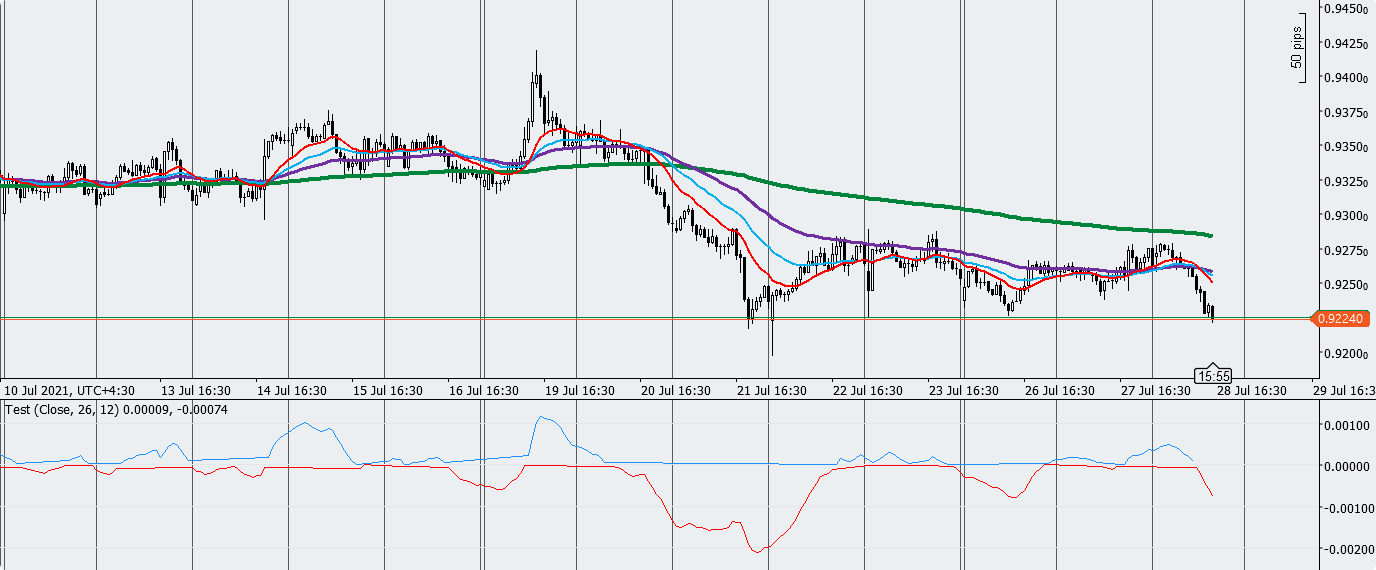

in this below code when i change plottype to histogram is ok but when i change it in plottype line it'w wrong and make 2 line .
i try with plottyp. point and it works. but i dont know why i have two line when i use plottype.line
in this code i try to have histogram line with 2 color. i need histgram line not histogram.
using System;
using cAlgo.API;
using cAlgo.API.Internals;
using cAlgo.API.Indicators;
using cAlgo.Indicators;
namespace cAlgo
{
[Indicator(IsOverlay = false, TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
public class MACDHistogram : Indicator
{
public MacdHistogram MacdHistogram;
[Parameter()]
public DataSeries Source { get; set; }
[Parameter("Long Cycle", DefaultValue = 26)]
public int LongCycle { get; set; }
[Parameter("Short Cycle", DefaultValue = 12)]
public int ShortCycle { get; set; }
[Output("Histogram Up", PlotType = PlotType.Line, Color = Colors.DodgerBlue)]
public IndicatorDataSeries HistogramPositive { get; set; }
[Output("Histogram Down", PlotType = PlotType.Line, Color = Colors.Red)]
public IndicatorDataSeries HistogramNegative { get; set; }
protected override void Initialize()
{
MacdHistogram = Indicators.MacdHistogram(Source, LongCycle, ShortCycle, 9);
}
public override void Calculate(int index)
{
if (MacdHistogram.Histogram[index] > 0)
{
HistogramPositive[index] = MacdHistogram.Histogram[index];
}
else if (MacdHistogram.Histogram[index] < 0)
{
HistogramNegative[index] = MacdHistogram.Histogram[index];
}
}
}
}
Replies
IRCtrader
28 Jul 2021, 14:49
( Updated at: 28 Jul 2021, 15:59 )
RE:
amusleh said:
Hi,
Your indicator has two outputs, and it should display two lines, not one, it's not a bug.
Even if you don't provide a value for the line it will connect the line by using previous and next values on the output series.
To solve this use DiscontinuousLine or Histogram PlotType:
using System; using cAlgo.API; using cAlgo.API.Internals; using cAlgo.API.Indicators; using cAlgo.Indicators; namespace cAlgo { [Indicator(IsOverlay = false, TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)] public class MACDHistogram : Indicator { public MacdHistogram MacdHistogram; [Parameter()] public DataSeries Source { get; set; } [Parameter("Long Cycle", DefaultValue = 26)] public int LongCycle { get; set; } [Parameter("Short Cycle", DefaultValue = 12)] public int ShortCycle { get; set; } [Output("Histogram Up", PlotType = PlotType.DiscontinuousLine, Color = Colors.DodgerBlue)] public IndicatorDataSeries HistogramPositive { get; set; } [Output("Histogram Down", PlotType = PlotType.DiscontinuousLine, Color = Colors.Red)] public IndicatorDataSeries HistogramNegative { get; set; } protected override void Initialize() { MacdHistogram = Indicators.MacdHistogram(Source, LongCycle, ShortCycle, 9); } public override void Calculate(int index) { HistogramPositive[index] = double.NaN; HistogramNegative[index] = double.NaN; if (MacdHistogram.Histogram[index] > 0) { HistogramPositive[index] = MacdHistogram.Histogram[index]; } else if (MacdHistogram.Histogram[index] < 0) { HistogramNegative[index] = MacdHistogram.Histogram[index]; } } } }
for my goal i have to use line. because my orginal indicator have multiple macd line and i need to see theri cross, so if output should be line i could see better that crosses. is it possible to have one line with 2 output? in metatrader we have this.
is it possible we have 1 line and set 2 color with if for that ???
i can't understand why we have 1 histogram or 1 point line or 1 dicuntinue but we have 2 line.
@IRCtrader
IRCtrader
29 Jul 2021, 10:42
RE:
amusleh said:
Hi,
You can have one line and two outputs, that's exactly what my posted code does.
i mean 1 output line with two color by condition.
could you please explain me why in plottype.point or dicontinueline or histogram, it's fine but plottype.line we have 2 line.
i couldn't underatnd it.
@IRCtrader
amusleh
29 Jul 2021, 11:02
RE: RE:
khoshroomahdi said:
amusleh said:
Hi,
You can have one line and two outputs, that's exactly what my posted code does.
i mean 1 output line with two color by condition.
could you please explain me why in plottype.point or dicontinueline or histogram, it's fine but plottype.line we have 2 line.
i couldn't underatnd it.
Hi,
You can't have one output with two-color, the solution is to use two outputs and show only one based on some condition like I did on my code.
The PlotType.Line is continuous, it will always be shown even if you set some values in between to NAN.
@amusleh
IRCtrader
02 Aug 2021, 14:25
( Updated at: 02 Aug 2021, 14:26 )
finally i solve it
using cAlgo.API;
using cAlgo.API.Indicators;
namespace cAlgo
{
[Levels(0)]
[Indicator(IsOverlay = false, AccessRights = AccessRights.None)]
public class MACDLine : Indicator
{
public MacdHistogram MacdHistogram;
[Parameter()]
public DataSeries Source { get; set; }
[Parameter("Long Cycle", DefaultValue = 26)]
public int LongCycle { get; set; }
[Parameter("Short Cycle", DefaultValue = 12)]
public int ShortCycle { get; set; }
[Parameter("Signal Periods", DefaultValue = 9)]
public int Periods { get; set; }
[Output("Macd Line Up", PlotType = PlotType.DiscontinuousLine, LineColor = "Green", Thickness = 2)]
public IndicatorDataSeries MacdLineUp { get; set; }
[Output("Macd Line Dn", PlotType = PlotType.DiscontinuousLine, LineColor = "Red", Thickness = 2)]
public IndicatorDataSeries MacdLineDn { get; set; }
bool Mode;
protected override void Initialize()
{
MacdHistogram = Indicators.MacdHistogram(Source, LongCycle, ShortCycle, Periods);
}
public override void Calculate(int index)
{
if (MacdHistogram.Histogram[index] >= MacdHistogram.Signal[index])
{
MacdLineUp[index] = MacdHistogram.Histogram[index];
if (Mode == true)
{
MacdLineUp[index - 1] = MacdHistogram.Histogram[index - 1];
Mode = false;
}
}
else
{
MacdLineDn[index] = MacdHistogram.Histogram[index];
if (Mode == false)
{
MacdLineDn[index - 1] = MacdHistogram.Histogram[index - 1];
Mode = true;
}
}
}
}
}
@IRCtrader
amusleh
28 Jul 2021, 14:41
Hi,
Your indicator has two outputs, and it should display two lines, not one, it's not a bug.
Even if you don't provide a value for the line it will connect the line by using previous and next values on the output series.
To solve this use DiscontinuousLine or Histogram PlotType:
@amusleh
