Could some help whit a simple SMA?

jeex
05 Jan 2014, 20:50 ( Updated at: 21 Dec 2023, 09:20 )

Something like this?

using System;
using cAlgo.API;
using cAlgo.API.Internals;
using cAlgo.API.Indicators;

namespace cAlgo.Indicators
{
    [Indicator(IsOverlay = true, TimeZone = TimeZones.UTC)]
    public class SMAchannel : Indicator
    {
        [Parameter("Periods", DefaultValue = 20, MinValue = 1, MaxValue = 500)]
        public int _Periods { get; set; }

        [Parameter("Distance Top (pips)", DefaultValue = 20, MinValue = 1, MaxValue = 1000)]
        public int _dTop { get; set; }

        [Parameter("Distance Bottom (pips)", DefaultValue = 20, MinValue = 1, MaxValue = 1000)]
        public int _dBottom { get; set; }

        [Output("SMA", Color = Colors.Purple, PlotType = PlotType.Line, Thickness = 1)]
        public IndicatorDataSeries SMA { get; set; }

        [Output("dTop", Color = Colors.DodgerBlue, PlotType = PlotType.Line, Thickness = 1)]
        public IndicatorDataSeries dTop { get; set; }

        [Output("dBottom", Color = Colors.Tomato, PlotType = PlotType.Line, Thickness = 1)]
        public IndicatorDataSeries dBottom { get; set; }

        private SimpleMovingAverage _sma;

        protected override void Initialize()
        {
            _sma = Indicators.SimpleMovingAverage(MarketSeries.Close, _Periods);
        }

        public override void Calculate(int index)
        {
            SMA[index] = _sma.Result[index];
            dTop[index] = _sma.Result[index] + pip2dif(_dTop);

            dBottom[index] = _sma.Result[index] - pip2dif(_dBottom);
        }

        private double pip2dif(int pip)
        {
            return pip * Symbol.PipSize;
        }
    }
}

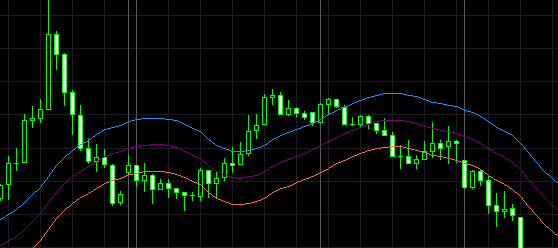

You set the distance in pips. See example below.

Old Account
05 Jan 2014, 22:22

Thank you !
