Could any one tell me how to add or see the s3 and r3 (UltimatePivotPoints2)
Created at 13 Dec 2013, 19:41
AR
Could any one tell me how to add or see the s3 and r3 (UltimatePivotPoints2)
13 Dec 2013, 19:41
I can't see the s3 and r3, and i like to add the middle points. I'll appreciate the help Tank you very much in advance.
Replies
armando_archundia
18 Dec 2013, 04:27
RE: RE:
No, i use the indicator in 60 min chart
@armando_archundia
armando_archundia
19 Dec 2013, 03:24
( Updated at: 21 Dec 2023, 09:20 )
RE:
Yes you are right. I'm going to check it. What middle points?
Between each support and resistance (p+s1)2 (s1+s2)2 with each support and resistance
,
@armando_archundia
StormeNet
19 Dec 2013, 11:56

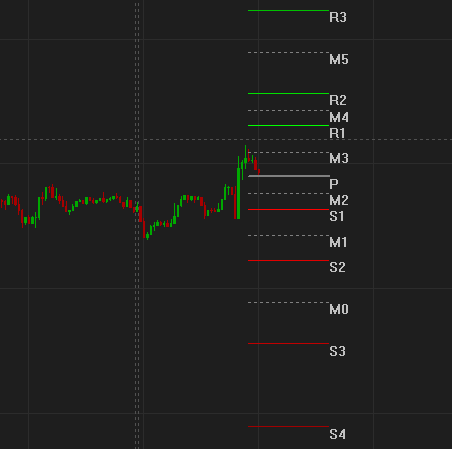

I've adjusted the UltimatePivotPoints indicator to include the middle lines and S3 and R3.
// -------------------------------------------------------------------------------
//
//
// This is an idicator to display daily, weekly and monthly pivot points according to the 5 points pivot system
// This indicator was developed by Hichem MHAMED : mr.hichem@gmail.com
// Please contact for feedback or feature requests.
// -------------------------------------------------------------------------------
using System;
using cAlgo.API;
using cAlgo.API.Indicators;
namespace cAlgo.Indicators
{
[Indicator(IsOverlay = true, AutoRescale = false)]
public class UltimatePivotPoints : Indicator
{
[Output("Daily Pivot", Color = Colors.Yellow)]
public IndicatorDataSeries p { get; set; }
[Output("Daily R1", Color = Colors.Green)]
public IndicatorDataSeries r1 { get; set; }
[Output("Daily R2", Color = Colors.Green)]
public IndicatorDataSeries r2 { get; set; }
[Output("Daily R3", Color = Colors.Green)]
public IndicatorDataSeries r3 { get; set; }
[Output("Daily S1", Color = Colors.Red)]
public IndicatorDataSeries s1 { get; set; }
[Output("Daily S2", Color = Colors.Red)]
public IndicatorDataSeries s2 { get; set; }
[Output("Daily S3", Color = Colors.Red)]
public IndicatorDataSeries s3 { get; set; }
[Output("Daily M0", Color = Colors.Orange, LineStyle = LineStyle.Lines)]
public IndicatorDataSeries m0 { get; set; }
[Output("Daily M1", Color = Colors.Orange, LineStyle = LineStyle.Lines)]
public IndicatorDataSeries m1 { get; set; }
[Output("Daily M2", Color = Colors.Orange, LineStyle = LineStyle.Lines)]
public IndicatorDataSeries m2 { get; set; }
[Output("Daily M3", Color = Colors.GreenYellow, LineStyle = LineStyle.Lines)]
public IndicatorDataSeries m3 { get; set; }
[Output("Daily M4", Color = Colors.GreenYellow, LineStyle = LineStyle.Lines)]
public IndicatorDataSeries m4 { get; set; }
[Output("Daily M5", Color = Colors.GreenYellow, LineStyle = LineStyle.Lines)]
public IndicatorDataSeries m5 { get; set; }
[Output("Weekly Pivot", Color = Colors.AliceBlue)]
public IndicatorDataSeries wp { get; set; }
[Output("Weekly R1", Color = Colors.Brown)]
public IndicatorDataSeries wr1 { get; set; }
[Output("Weekly R2", Color = Colors.Brown)]
public IndicatorDataSeries wr2 { get; set; }
[Output("Weekly R3", Color = Colors.Brown)]
public IndicatorDataSeries wr3 { get; set; }
[Output("Weekly S1", Color = Colors.Purple)]
public IndicatorDataSeries ws1 { get; set; }
[Output("Weekly S2", Color = Colors.Purple)]
public IndicatorDataSeries ws2 { get; set; }
[Output("Weekly S3", Color = Colors.Purple)]
public IndicatorDataSeries ws3 { get; set; }
[Output("Monthly P", Color = Colors.Pink)]
public IndicatorDataSeries mp { get; set; }
[Output("Monthly R1", Color = Colors.Orange)]
public IndicatorDataSeries mr1 { get; set; }
[Output("Monthly R2", Color = Colors.Orange)]
public IndicatorDataSeries mr2 { get; set; }
[Output("Monthly R3", Color = Colors.Orange)]
public IndicatorDataSeries mr3 { get; set; }
[Output("Monthly S1", Color = Colors.Turquoise)]
public IndicatorDataSeries ms1 { get; set; }
[Output("Monthly S2", Color = Colors.Turquoise)]
public IndicatorDataSeries ms2 { get; set; }
[Output("Monthly S3", Color = Colors.Turquoise)]
public IndicatorDataSeries ms3 { get; set; }
[Parameter("Show daily pivots", DefaultValue = true)]
public bool ShowDailyPivots { get; set; }
[Parameter("Show weekly pivots", DefaultValue = false)]
public bool ShowWeeklyPivots { get; set; }
[Parameter("Show monthly pivots", DefaultValue = false)]
public bool ShowMonthlyPivots { get; set; }
private double dailyLow = double.MaxValue;
private double dailyHigh = double.MinValue;
private double dailyClose;
private double weeklyLow = double.MaxValue;
private double weeklyHigh = double.MinValue;
private double weeklyClose;
private double monthlyLow = double.MaxValue;
private double monthlyHigh = double.MinValue;
private double monthlyClose;
private int nameCounter = 0;
private string currentTimeFrameName = "";
//public event EventHandler<EventArgs<int>> CalcFinished = delegate {} ;
protected override void Initialize()
{
// Initialize and create nested indicators
}
public override void Calculate(int index)
{
string timeFrame = GetTimeFrameName();
if (timeFrame != "0" && timeFrame != currentTimeFrameName)
currentTimeFrameName = timeFrame;
bool dailyCondition = ShowDailyPivots && currentTimeFrameName != "D1" && currentTimeFrameName != "W1" && currentTimeFrameName != "M1";
bool weeklyCondition = ShowWeeklyPivots && currentTimeFrameName != "W1" && currentTimeFrameName != "M1";
bool monthlyCondition = ShowMonthlyPivots && currentTimeFrameName != "M1";
//Print(currentTimeFrameName + ":" +dailyCondition);
if (dailyCondition)
calculateDailyPivots(index);
if (weeklyCondition)
calculateWeeklyPivots(index);
if (monthlyCondition)
calculateMonthlyPivots(index);
}
private void calculateMonthlyPivots(int index)
{
int currentDay = MarketSeries.OpenTime[index].Day;
int previousDay = MarketSeries.OpenTime[index - 1].Day;
if (currentDay != previousDay && currentDay == 1)
{
monthlyClose = MarketSeries.Close[index - 1];
mp[index] = (monthlyHigh + monthlyLow + monthlyClose) / 3;
mr1[index] = 2 * mp[index] - monthlyLow;
mr2[index] = mp[index] + monthlyHigh - monthlyLow;
ms1[index] = 2 * mp[index] - monthlyHigh;
ms2[index] = mp[index] - monthlyHigh + monthlyLow;
monthlyLow = double.MaxValue;
monthlyHigh = double.MinValue;
}
else
{
if (monthlyLow > MarketSeries.Low[index])
monthlyLow = MarketSeries.Low[index];
if (monthlyHigh < MarketSeries.High[index])
monthlyHigh = MarketSeries.High[index];
mp[index] = mp[index - 1];
mr1[index] = mr1[index - 1];
ms1[index] = ms1[index - 1];
mr2[index] = mr2[index - 1];
ms2[index] = ms2[index - 1];
mr3[index] = mr3[index - 1];
ms3[index] = ms3[index - 1];
}
}
private void calculateWeeklyPivots(int index)
{
DayOfWeek currentDay = MarketSeries.OpenTime[index].DayOfWeek;
DayOfWeek previousDay = MarketSeries.OpenTime[index - 1].DayOfWeek;
if (currentDay != previousDay && previousDay == DayOfWeek.Friday)
{
weeklyClose = MarketSeries.Close[index - 1];
wp[index] = (weeklyHigh + weeklyLow + weeklyClose) / 3;
wr1[index] = 2 * wp[index] - weeklyLow;
wr2[index] = wp[index] + weeklyHigh - weeklyLow;
ws1[index] = 2 * wp[index] - weeklyHigh;
ws2[index] = wp[index] - weeklyHigh + weeklyLow;
weeklyLow = double.MaxValue;
weeklyHigh = double.MinValue;
}
else
{
if (weeklyLow > MarketSeries.Low[index])
weeklyLow = MarketSeries.Low[index];
if (weeklyHigh < MarketSeries.High[index])
weeklyHigh = MarketSeries.High[index];
wp[index] = wp[index - 1];
wr1[index] = wr1[index - 1];
ws1[index] = ws1[index - 1];
wr2[index] = wr2[index - 1];
ws2[index] = ws2[index - 1];
wr3[index] = wr3[index - 1];
ws3[index] = ws3[index - 1];
}
}
protected void calculateDailyPivots(int index)
{
DayOfWeek currentDay = MarketSeries.OpenTime[index].DayOfWeek;
DayOfWeek previousDay = MarketSeries.OpenTime[index - 1].DayOfWeek;
bool cond1 = currentDay == previousDay || previousDay == DayOfWeek.Sunday;
if (cond1)
{
if (dailyLow > MarketSeries.Low[index])
dailyLow = MarketSeries.Low[index];
if (dailyHigh < MarketSeries.High[index])
dailyHigh = MarketSeries.High[index];
p[index] = p[index - 1];
r1[index] = r1[index - 1];
s1[index] = s1[index - 1];
r2[index] = r2[index - 1];
s2[index] = s2[index - 1];
r3[index] = r3[index - 1];
s3[index] = s3[index - 1];
}
else
{
dailyClose = MarketSeries.Close[index - 1];
p[index] = (dailyHigh + dailyLow + dailyClose) / 3;
r1[index] = 2 * p[index] - dailyLow;
s1[index] = 2 * p[index] - dailyHigh;
r2[index] = p[index] + dailyHigh - dailyLow;
s2[index] = p[index] - dailyHigh + dailyLow;
r3[index] = r1[index] + (dailyHigh - dailyLow);
s3[index] = s1[index] - (dailyHigh - dailyLow);
dailyLow = double.MaxValue;
dailyHigh = double.MinValue;
}
m0[index] = (s3[index] + s2[index]) / 2.0;
m1[index] = (s2[index] + s1[index]) / 2.0;
m2[index] = (s1[index] + p[index]) / 2.0;
m3[index] = (p[index] + r1[index]) / 2.0;
m4[index] = (r1[index] + r2[index]) / 2.0;
m5[index] = (r2[index] + r3[index]) / 2.0;
}
/// <summary>
/// Get the time span between two consecutive bars OpenTime
/// </summary>
private TimeSpan GetTimeFrame()
{
if (MarketSeries.Close.Count > 0)
{
int currentIndex = MarketSeries.Close.Count - 1;
DateTime currentOpenTime = MarketSeries.OpenTime[currentIndex];
DateTime previousOpenTime = MarketSeries.OpenTime[currentIndex - 1];
TimeSpan timeFrame = currentOpenTime - previousOpenTime;
if (currentOpenTime.DayOfWeek == DayOfWeek.Monday && previousOpenTime.DayOfWeek != DayOfWeek.Monday)
{
currentOpenTime = previousOpenTime;
previousOpenTime = MarketSeries.OpenTime[currentIndex - 2];
timeFrame = currentOpenTime - previousOpenTime;
}
return timeFrame;
}
// if bars are not available
return TimeSpan.Zero;
}
/// <summary>
/// Get the name representation of the timeframe used
/// </summary>
/// <param name="timeFrame">Time span between two consecutive bars OpenTime</param>
/// <returns>The name representation of the TimeFrame</returns>
private string GetTimeFrameName()
{
TimeSpan timeFrame = GetTimeFrame();
int totalMin = (int)timeFrame.TotalMinutes;
string timeFrameName;
if (totalMin > 10080)
timeFrameName = "M1";
else
{
switch (totalMin)
{
case 1:
timeFrameName = "m1";
break;
case 2:
timeFrameName = "m2";
break;
case 3:
timeFrameName = "m3";
break;
case 4:
timeFrameName = "m4";
break;
case 5:
timeFrameName = "m5";
break;
case 10:
timeFrameName = "m10";
break;
case 15:
timeFrameName = "m15";
break;
case 30:
timeFrameName = "m30";
break;
case 60:
timeFrameName = "h1";
break;
case 240:
timeFrameName = "h4";
break;
case 720:
timeFrameName = "h12";
break;
case 1440:
timeFrameName = "D1";
break;
case 10080:
timeFrameName = "W1";
break;
default:
timeFrameName = "0";
break;
}
}
return timeFrameName;
}
}
}
@StormeNet
armando_archundia
22 Dec 2013, 00:35
RE:
You are amazing, i'll appreciate your help, but Could we take of the history pivots? :) or make it a little less invasive, the last configuration was beautiful. Thank you very much.
@armando_archundia
Spotware
23 Dec 2013, 09:42
RE:
StormeNet said:
I've adjusted the UltimatePivotPoints indicator to include the middle lines and S3 and R3.
/// /// Get the time span between two consecutive bars OpenTime /// private TimeSpan GetTimeFrame() /// /// Get the name representation of the timeframe used /// ///Time span between two consecutive bars OpenTime /// The name representation of the TimeFrame private string GetTimeFrameName()
Note that you no longer need to use methods such as the above because the API has the Timeframe class.
@Spotware
adaled
17 Dec 2013, 09:43
RE:
armando_archundia said:
This only works for less than H12 timeframe. Is that the reason?
@adaled
