Hi All, I need help from someone to plot the below mentioned indicators to combine in one single indicator window. I would appreciate your kind help.

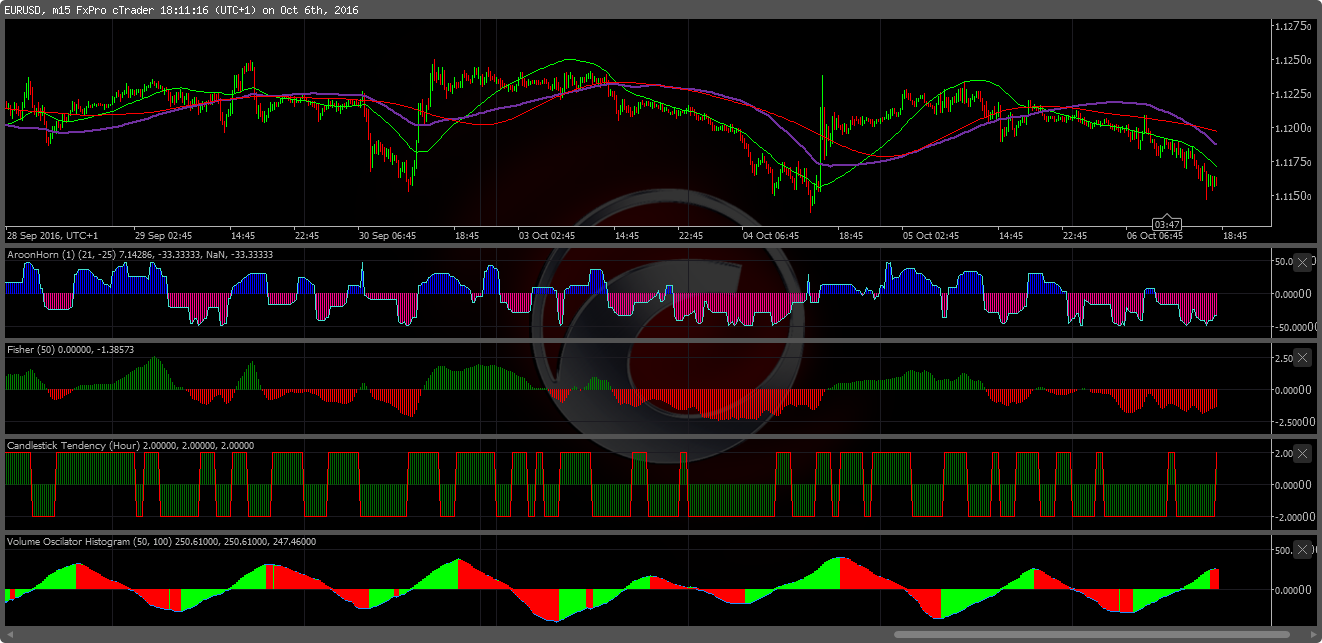

These are the four indicators namely:- Aroonhorn, Fisher Histogram, Candlesticks Tendency and Volume Oscillator Histogram. Also to overlay TSMA - 100 & 200 and also TMA - 50. I want the variable indicator specification window, so that I can change the specs as per the required accuracy.
Is it possible to overly all these indicators be over the price chart if required.
Thanks in advance
using System;
using cAlgo.API;
using cAlgo.API.Indicators;
namespace cAlgo.Indicators
{
[Indicator(IsOverlay = false, AccessRights = AccessRights.None)]
public class AroonHorn : Indicator
{
[Parameter(DefaultValue = 10)]
public int Period { get; set; }
[Parameter(DefaultValue = 25)]
public int Filter { get; set; }
[Output("AroonOSCup", Color = Colors.Blue, IsHistogram = true)]
public IndicatorDataSeries aroonoscup { get; set; }
[Output("AroonOSCdown", Color = Colors.Red, IsHistogram = true)]
public IndicatorDataSeries aroonoscdown { get; set; }
[Output("AroonOSCGray", Color = Colors.Gray, IsHistogram = true)]
public IndicatorDataSeries aroonoscgray { get; set; }
[Output("AroonOSC", Color = Colors.Turquoise)]
public IndicatorDataSeries aroonosc { get; set; }
private Aroon aroonhorn;
protected override void Initialize()
{
aroonhorn = Indicators.Aroon(Period);
}
public override void Calculate(int index)
{
double commander = 10 * (aroonhorn.Up[index] - aroonhorn.Down[index]) / Period;
if ((commander >= 0) && (commander > Filter))
{
aroonoscup[index] = commander;
}
if ((commander < 0) && (commander < (-1) * Filter))
{
aroonoscdown[index] = commander;
}
if ((commander >= (-1) * Filter) && (commander <= Filter))
{
aroonoscgray[index] = commander;
}
aroonosc[index] = commander;
}
}
}
using System;
using cAlgo.API;
namespace cAlgo.Indicators
{
[Indicator("Fisher")]
public class Fisher : Indicator
{
private IndicatorDataSeries _value1;
private IndicatorDataSeries _buffer0;
private IndicatorDataSeries _fisher1;
[Parameter("Period", DefaultValue = 10)]
public int Period { get; set; }
[Output("Buffer1", PlotType = PlotType.Histogram, Color = Colors.Green)]
public IndicatorDataSeries Buffer1 { get; set; }
[Output("Buffer2", PlotType = PlotType.Histogram, Color = Colors.Red)]
public IndicatorDataSeries Buffer2 { get; set; }
protected override void Initialize()
{
_fisher1 = CreateDataSeries();
_value1 = CreateDataSeries();
_buffer0 = CreateDataSeries();
}
public override void Calculate(int index)
{
if (index < Period)
{
_value1[index] = 0;
_fisher1[index] = 0;
return;
}
double maxH = MarketSeries.High.Maximum(Period);
double minL = MarketSeries.Low.Minimum(Period);
double price = (MarketSeries.High[index] + MarketSeries.Low[index]) / 2;
double value = 0.33 * 2 * ((price - minL) / (maxH - minL) - 0.5) + 0.67 * _value1[index - 1];
value = Math.Min(Math.Max(value, -0.999), 0.999);
_buffer0[index] = 0.5 * Math.Log((1 + value) / (1 - value)) + 0.5 * _fisher1[index - 1];
_value1[index] = value;
_fisher1[index] = _buffer0[index];
bool up = _buffer0[index] > 0;
if (!up)
{
Buffer2[index] = _buffer0[index];
Buffer1[index] = 0.0;
}
else
{
Buffer1[index] = _buffer0[index];
Buffer2[index] = 0.0;
}
}
}
}
using System;
using cAlgo.API;
using cAlgo.API.Internals;
using cAlgo.API.Indicators;
using cAlgo.Indicators;
namespace cAlgo
{
[Indicator(IsOverlay = true, TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
public class CandlestickTendency : Indicator
{
[Parameter()]
public TimeFrame HighOrderTimeFrame { get; set; }
[Output("Line", PlotType = PlotType.Line, Color = Colors.Green)]
public IndicatorDataSeries Line { get; set; }
[Output("Histogram", PlotType = PlotType.Histogram, Color = Colors.DarkGreen)]
public IndicatorDataSeries Histogram { get; set; }
[Output("High Order Line", PlotType = PlotType.Line, Color = Colors.Red)]
public IndicatorDataSeries HighOrderLine { get; set; }
int index1, index2;
MarketSeries series2;
double value1, value2;
protected override void Initialize()
{
value1 = value2 = 0;
series2 = MarketData.GetSeries(HighOrderTimeFrame);
}
public bool trend1IsRising
{
get { return (MarketSeries.Close[index1] > MarketSeries.Open[index1 - 1]); }
}
public bool trend1IsFalling
{
get { return (MarketSeries.Close[index1] < MarketSeries.Open[index1 - 1]); }
}
public bool trend2IsRising
{
get { return (series2.Close[index2] > series2.Open[index2 - 1]); }
}
public bool trend2IsFalling
{
get { return (series2.Close[index2] < series2.Open[index2 - 1]); }
}
public override void Calculate(int index)
{
index1 = index;
index2 = series2.OpenTime.GetIndexByExactTime(MarketSeries.OpenTime[index1]);
if (trend1IsFalling)
value1 = -1;
if (trend1IsRising)
value1 = 1;
if (trend2IsFalling)
value2 = -2;
if (trend2IsRising)
value2 = 2;
Line[index] = value2;
Histogram[index] = value2;
HighOrderLine[index] = value2;
}
}
}
using System;
using cAlgo.API;
using cAlgo.API.Internals;
using cAlgo.API.Indicators;
using cAlgo.Indicators;
namespace cAlgo
{
[Indicator(IsOverlay = false, TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
public class VolumeOscilatorHistogram : Indicator
{
private VolumeOscillator _volumeOscillator;
private double currentVolume;
private double preVolume;
private double pre2Volume;
[Parameter("Short Term", DefaultValue = 5)]
public int ShortTerm { get; set; }
[Parameter("Long Term", DefaultValue = 30)]
public int LongTerm { get; set; }
[Output("Volume Oscilator", Color = Colors.DodgerBlue, Thickness = 2)]
public IndicatorDataSeries Result { get; set; }
[Output("Plus", Color = Colors.DodgerBlue, PlotType = PlotType.Histogram, Thickness = 5)]
public IndicatorDataSeries Plus { get; set; }
[Output("Minus", Color = Colors.Gray, PlotType = PlotType.Histogram, Thickness = 5)]
public IndicatorDataSeries Minus { get; set; }
protected override void Initialize()
{
_volumeOscillator = Indicators.VolumeOscillator(ShortTerm, LongTerm);
}
public override void Calculate(int index)
{
// Display Result of Indicator
Result[index] = _volumeOscillator.Result[index];
currentVolume = _volumeOscillator.Result[index];
preVolume = _volumeOscillator.Result[index - 1];
pre2Volume = _volumeOscillator.Result[index - 2];
if (currentVolume >= preVolume)
{
Plus[index] = currentVolume;
}
else
{
Minus[index] = currentVolume;
}
// Normalization of histogram painting
if (preVolume >= pre2Volume)
{
Plus[index - 1] = preVolume;
}
else
{
Minus[index - 1] = preVolume;
}
}
}
}
Please Note: Also to overlay on it TSMA - 100 and 200 periods and TMA - 50
The code can be found in the indicator library.
