Deal Map

PanagiotisCharalampous
28 Jul 2024, 07:19

Hi there,

No it does not. It will be added in a future release.

Best regards,

Panagiotis

levd20
01 Sep 2024, 15:15 ( Updated at: 02 Sep 2024, 05:28 )

RE: Deal Map

Hi, feel free to use this indicator.

best regards
levd20

using cAlgo.API;
using cAlgo.API.Indicators;
using cAlgo.API.Internals;

namespace cAlgo.Indicators
{
    [Indicator(IsOverlay = true, AccessRights = AccessRights.None)]
    public class paddysDealMap : Indicator
    {

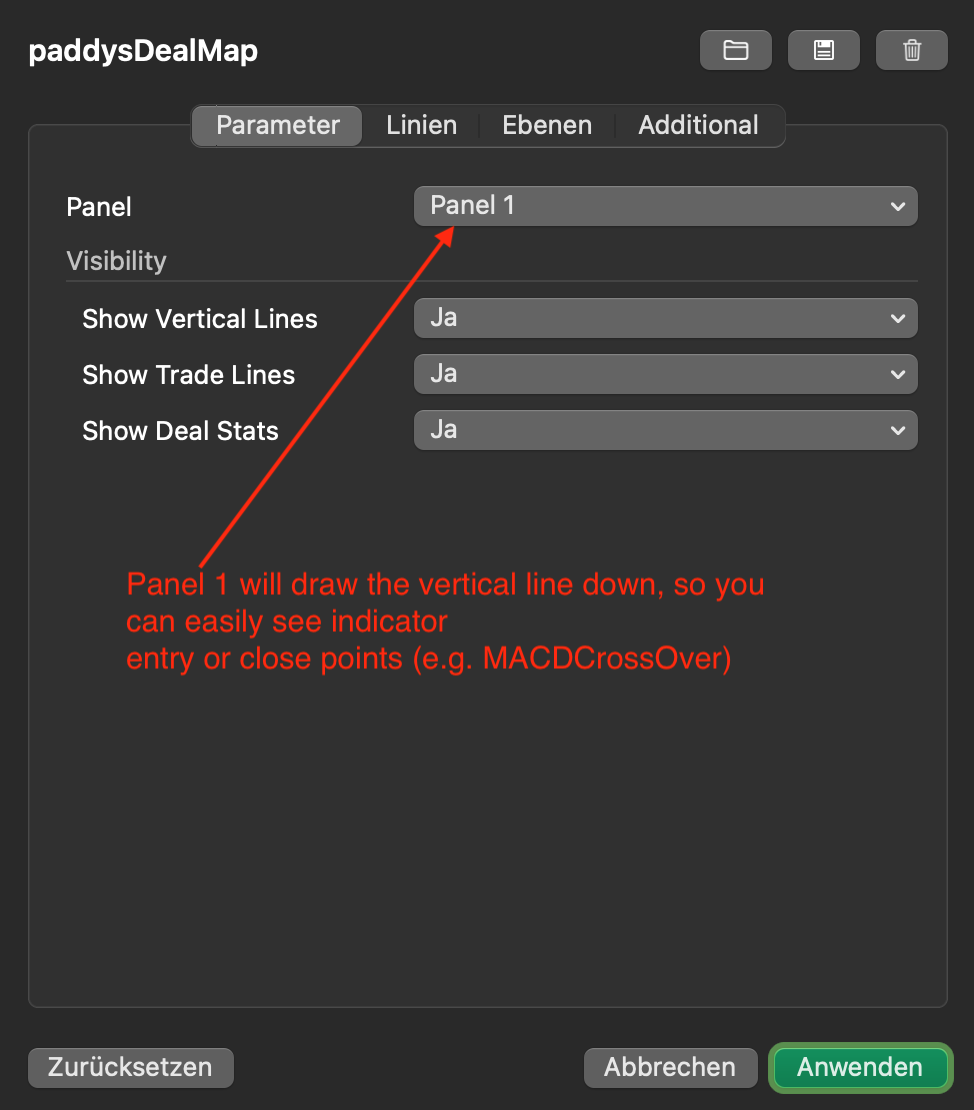

        #region Parameter

        [Parameter("Show Vertical Lines", Group = "Visibility", DefaultValue = true)]
        public bool showVerticalLines { get; set; }

        [Parameter("Show Trade Lines", Group = "Visibility", DefaultValue = true)]
        public bool showTradeLines { get; set; }

        [Parameter("Show Deal Stats", Group = "Visibility", DefaultValue = true)]
        public bool showDealStats { get; set; }

        #endregion

        protected override void Initialize()
        {
            Chart.RemoveAllObjects();
            DrawVerticalLines();
            DrawDealMap();
            DrawDealStats();
        }

        #region own Methods

        private void DrawVerticalLines()
        {
            foreach (var Trade in History)
            {
                if(showVerticalLines && Trade.TradeType == TradeType.Buy)   // green Line, when it's a Long-Order
                {
                    Chart.DrawVerticalLine(
                        "Open_" + Trade.PositionId,
                        Trade.EntryTime,
                        Color.Green
                    );
                }

                if(showVerticalLines && Trade.TradeType == TradeType.Sell)  // red Line, when it's a Short-Order
                {
                    Chart.DrawVerticalLine(
                        "Open_" + Trade.PositionId,
                        Trade.EntryTime,
                        Color.Red
                    );
                }
            }
        }

        private void DrawDealMap()
        {
            foreach (var Trade in History)
            {
                if(showTradeLines && Trade.NetProfit>0)                     // When Trade was profitable -> green dealMapLine
                    {
                        var TrendLine = Chart.DrawTrendLine(
                            "TradelLine " + Trade.PositionId,               // unique Name of the TrendLine
                            Trade.EntryTime,                                // X1 OpenTime
                            Trade.EntryPrice,                               // Y1 OpenPrice
                            Trade.ClosingTime,                              // X2 ClosingTime
                            Trade.ClosingPrice,                             // Y2 ClosingPrice
                            Color.LightGreen,                               // Color
                            3,                                              // Line Thickness
                            LineStyle.Solid                                 // Line Style
                        );
                    }

                    if(showTradeLines && Trade.NetProfit<0)                 // When Trade was profitable -> green dealMapLine
                    {
                        var TrendLine = Chart.DrawTrendLine(
                            "TradelLine " + Trade.PositionId,               // unique Name of the TrendLine
                            Trade.EntryTime,                                // X1 OpenTime
                            Trade.EntryPrice,                               // Y1 OpenPrice
                            Trade.ClosingTime,                              // X2 ClosingTime
                            Trade.ClosingPrice,                             // Y2 ClosingPrice
                            Color.Magenta,                                  // Color
                            3,                                              // Line Thickness
                            LineStyle.Solid                                 // Line Style
                        );
                    }
            }
        }

        private void DrawDealStats()
        {
            foreach (var Trade in History)
            {
                string sign = Trade.NetProfit > 0 ? "+" : "";
                string dealStats = $"{sign}{Trade.NetProfit / Account.Balance:0.00%}\n"+Trade.NetProfit.ToString("F2")+" €";

                if(showDealStats && Trade.NetProfit > 0)
                {
                    Chart.DrawText(
                        "DealNetProfit" + Trade.PositionId,
                        dealStats,
                        Trade.ClosingTime,
                        Trade.ClosingPrice,
                        Color.LightGreen
                    );
                }

                if(showDealStats && Trade.NetProfit < 0)
                {
                    Chart.DrawText(
                        "DealNetProfit" + Trade.PositionId,
                        dealStats,
                        Trade.ClosingTime,
                        Trade.ClosingPrice,
                        Color.Magenta
                    );
                }
            }
        }

        #endregion own Methods

        public override void Calculate(int index) { }

    }
}
