C# solution with multiple bots / indicators, a.k.a. monorepo...

josef.van.niekerk
28 Aug 2023, 21:41

I tried updating my Indicator attributes to use the Name attribute like this:

[Indicator(Name = "FooIndicator", AccessRights = AccessRights.FullAccess)]

however, this doesn't work, and Name is marked as obsolete.

josef.van.niekerk
28 Aug 2023, 22:36 ( Updated at: 29 Aug 2023, 04:56 )

I know it's weird replying to myself, but I'm adding bits and pieces I'm finding out as I'm going.

So this documentation page mentions the use of parameters like AlgoName which I tried to change in my project's .csproj file. I can see the effect of AlgoPublish, however, changing AlgoName also has no effect.

Then I came across this forum thread, I tried placing my projects in separate folders within my solution. But when building, my files are still being output as MyFooBarSolution.algo.

I am using the cTrader.Automate package version 1.0.8

Please help?!

josef.van.niekerk
30 Aug 2023, 08:39 ( Updated at: 21 Dec 2023, 09:23 )

I'm still stuck with this problem, I need some assistance. My .algo files are still generated with the incorrect name, using the solution name, rather than the project name. I have created a small GitHub repo here, to demonstrate the issue. Check it out using git, and open with JetBrains Rider or Visual Studio.

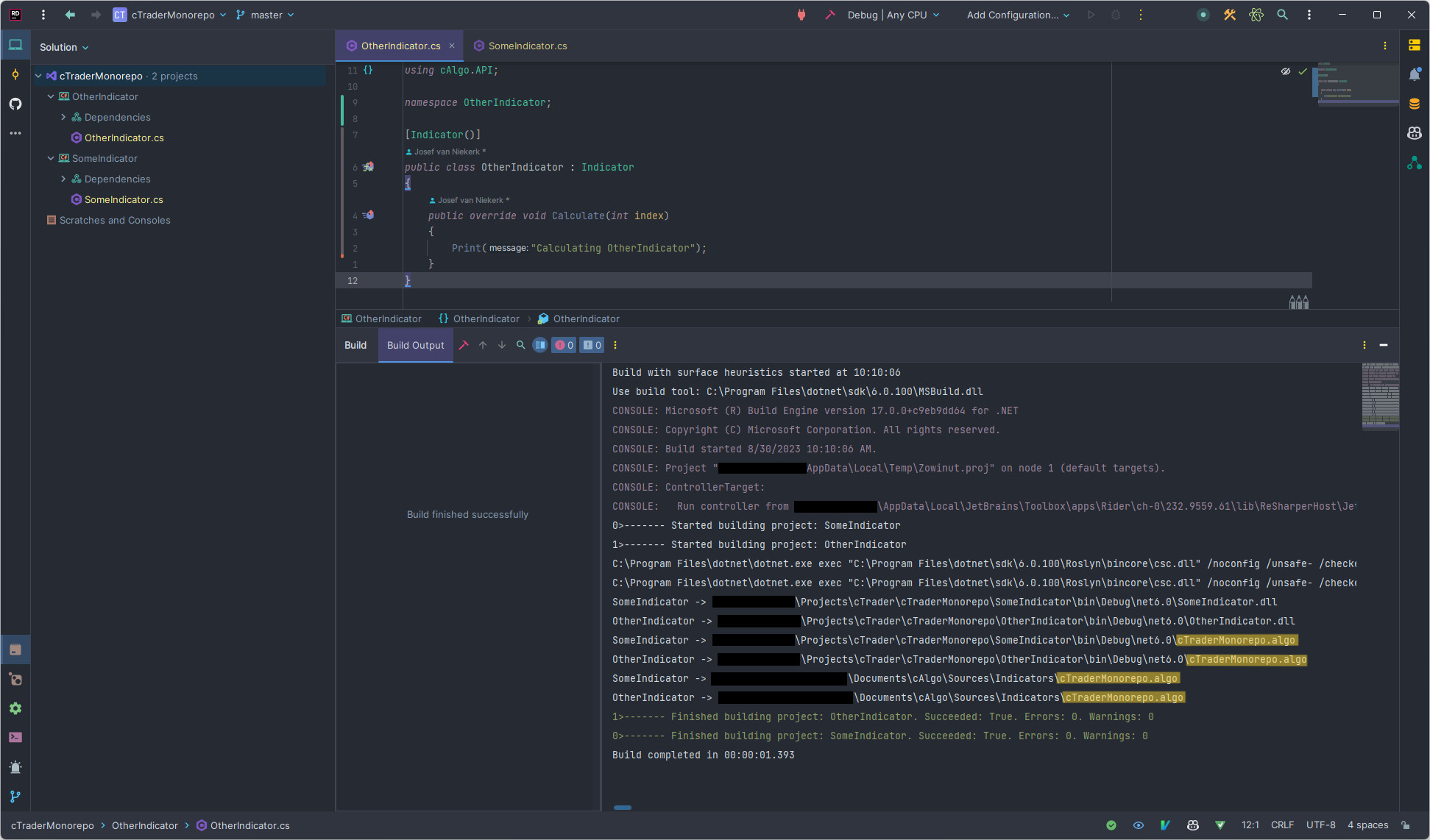

The GitHub repo contains a small solution, cTraderMonorepo with two indicator projects, SomeIndicator and OtherIndicator. However, when building, as per the screenshot, we can see that in both instances, the output for both projects produce a cTraderMonorepo.algo file, however, I would have expected SomeIndicator.algo and OtherIndicator.algo. The result is, that when building the project, you only end up with one cTraderMonorepo.algo file, I guess the one that gets output last wins.

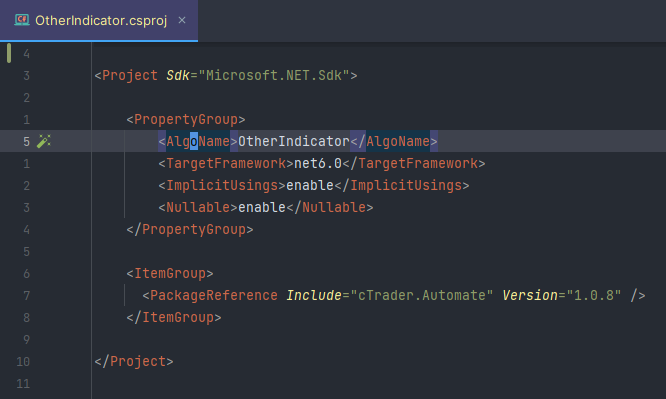

Another thing I tried was to edit the .csproj files, by adding <AlgoName>OtherIndicator</AlgoName> to the PropertyGroup block. This has no effect at all on the output. According to the  documentation at https://help.ctrader.com/ctrader-automate/compiling/#parameters I'm guessing you should be able to specify the output name for the .algo file using AlgoName.

Maybe @Spotware can help?

josef.van.niekerk
30 Aug 2023, 09:04 ( Updated at: 31 Aug 2023, 05:06 )

Furthermore, I tried disabling publishing by setting <AlgoPublish>false</AlgoPublish> in the .csproj file, and adding a post build command On build success using the following command:

xcopy /Y "$(TargetDir)cTraderMonorepo.algo" “%USERPROFILE%\OneDrive\Documents\cAlgo\Sources\Indicators\$(ProjectName).algo”

which doesn't work, it seems the above is trying to run, before the .algo file is output to the filesystem.

josef.van.niekerk
30 Aug 2023, 19:26 ( Updated at: 31 Aug 2023, 05:06 )

I have found a workaround, not ideal. By adding the following target to .csproj:

<Target Name="PostBuild" AfterTargets="_BundleAlgo">
  <PropertyGroup>
    <AlgoCopyDestination>%USERPROFILE%\OneDrive\Documents\cAlgo\Sources\Indicators\$(ProjectName).algo</AlgoCopyDestination>
  </PropertyGroup>
  <Exec Command="copy &quot;$(TargetDir)$(SolutionName).algo&quot; &quot;$(AlgoCopyDestination)&quot;"/>
</Target>

and setting <AlgoPublish>false</AlgoPublish>, I'm at least now getting the .algo files where I want them, and with the correct project names.

I should be as easy as updating <AlgoName> instead, but as I mentioned previously, that doesn't work.

Spotware
31 Aug 2023, 06:02

Dear Josef,

The described behavior is by design. Indicators and cBots get their name from the solution name.

Best Regards,

cTrader Team

josef.van.niekerk
31 Aug 2023, 07:28 ( Updated at: 31 Aug 2023, 14:29 )

RE: C# solution with multiple bots / indicators, a.k.a. monorepo...

I find this rather counterproductive. It's not uncommon for .NET solutions to contain multiple projects.

The cTrader documentation at https://help.ctrader.com/ctrader-automate/compiling/#parameters also states clearly that AlgoName is defaulted to $(MSBuildProjectName), it does not say solution name, this documentation is rather misleading. The fact that it's even in the docs implies that it should be overrideable.

I would suggest, AlgoName should work as expected, allowing overriding of the output name. I think I'm not the first one that thinks this way, see the following post: https://ctrader.com/forum/calgo-support/39981#post-99655

Nonetheless, I've found a workaround by setting AlgoPublish to false, and manually setting up a target to copy the algo with the name I want.

Spotware said:

Dear Josef,

The described behavior is by design. Indicators and cBots get their name from the solution name.

Best Regards,

cTrader Team

devman
05 Sep 2023, 07:46 ( Updated at: 06 Sep 2023, 05:16 )

RE: RE: C# solution with multiple bots / indicators, a.k.a. monorepo...

josef.van.niekerk said:

I find this rather counterproductive. It's not uncommon for .NET solutions to contain multiple projects.

…

Try this solution:

<Project Sdk="Microsoft.NET.Sdk">

    <PropertyGroup>
        <TargetFramework>net6.0</TargetFramework>
        <ImplicitUsings>enable</ImplicitUsings>
        <Nullable>enable</Nullable>
        <AlgoPublish>false</AlgoPublish>
    </PropertyGroup>

    <ItemGroup>
      <PackageReference Include="cTrader.Automate" Version="1.0.8" />
    </ItemGroup>

    <Target Name="CopyAlgo"
            Condition="'$(AlgoOut)' != ''"
            DependsOnTargets="Build;$(_CoreAlgoBuildTargets)">
        <ItemGroup>
            <_AlgoFile Include="$(_AlgoFilePath)" />
        </ItemGroup>

        <Copy SourceFiles="@(_AlgoFile)"
              DestinationFolder="$(AlgoOut)"
              OverwriteReadOnlyFiles="True"
              Retries="10"
              RetryDelayMilliseconds="100" />

        <Message Importance="High"
                 Text="$(MSBuildProjectName) -> $(AlgoOut)\$(_AlgoFileName)" />
    </Target>

</Project>

Run this command:

dotnet build -p:AlgoOut=your\path -t:CopyAlgo

Of course, you can use the full power of MSBuild and create separate .targets file. Like this:

<!-- FILE: src/copyalgo.target -->
<Project xmlns="http://schemas.microsoft.com/developer/msbuild/2003">
    <Target Name="CopyAlgo"
            Condition="'$(AlgoOut)' != ''"
            DependsOnTargets="Build;$(_CoreAlgoBuildTargets)">
        <ItemGroup>
            <_AlgoFile Include="$(_AlgoFilePath)" />
        </ItemGroup>

        <Copy SourceFiles="@(_AlgoFile)"
              DestinationFolder="$(AlgoOut)"
              OverwriteReadOnlyFiles="True"
              Retries="10"
              RetryDelayMilliseconds="100" />

        <Message Importance="High"
                 Text="$(MSBuildProjectName) -> $(AlgoOut)\$(_AlgoFileName)" />
    </Target>
</Project>

Import this file in your projects, or use Directory.Build.props to generalize this customization.

<Project>
  ...
  <Import Project="..\..\src\copyalgo.targets" />
  ...
</Project>

josef.van.niekerk
06 Sep 2023, 20:56 ( Updated at: 07 Sep 2023, 05:44 )

RE: RE: RE: C# solution with multiple bots / indicators, a.k.a. monorepo...

devman said:

josef.van.niekerk said:

I find this rather counterproductive. It's not uncommon for .NET solutions to contain multiple projects.

…

Try this solution:

<Project Sdk="Microsoft.NET.Sdk">

    <PropertyGroup>
        <TargetFramework>net6.0</TargetFramework>
        <ImplicitUsings>enable</ImplicitUsings>
        <Nullable>enable</Nullable>
        <AlgoPublish>false</AlgoPublish>
    </PropertyGroup>

    <ItemGroup>
      <PackageReference Include="cTrader.Automate" Version="1.0.8" />
    </ItemGroup>

    <Target Name="CopyAlgo"
            Condition="'$(AlgoOut)' != ''"
            DependsOnTargets="Build;$(_CoreAlgoBuildTargets)">
        <ItemGroup>
            <_AlgoFile Include="$(_AlgoFilePath)" />
        </ItemGroup>

        <Copy SourceFiles="@(_AlgoFile)"
              DestinationFolder="$(AlgoOut)"
              OverwriteReadOnlyFiles="True"
              Retries="10"
              RetryDelayMilliseconds="100" />

        <Message Importance="High"
                 Text="$(MSBuildProjectName) -> $(AlgoOut)\$(_AlgoFileName)" />
    </Target>

</Project>

Run this command:

dotnet build -p:AlgoOut=your\path -t:CopyAlgo



Of course, you can use the full power of MSBuild and create separate .targets file. Like this:

<!-- FILE: src/copyalgo.target -->
<Project xmlns="http://schemas.microsoft.com/developer/msbuild/2003">
    <Target Name="CopyAlgo"
            Condition="'$(AlgoOut)' != ''"
            DependsOnTargets="Build;$(_CoreAlgoBuildTargets)">
        <ItemGroup>
            <_AlgoFile Include="$(_AlgoFilePath)" />
        </ItemGroup>

        <Copy SourceFiles="@(_AlgoFile)"
              DestinationFolder="$(AlgoOut)"
              OverwriteReadOnlyFiles="True"
              Retries="10"
              RetryDelayMilliseconds="100" />

        <Message Importance="High"
                 Text="$(MSBuildProjectName) -> $(AlgoOut)\$(_AlgoFileName)" />
    </Target>
</Project>

Import this file in your projects, or use Directory.Build.props to generalize this customization.

<Project>
  ...
  <Import Project="..\..\src\copyalgo.targets" />
  ...
</Project>

Thanks for taking the time to reply devman. I'll definitely take a look into this. As I mentioned, I have a workaround that works okay for me now, but looking at your code, there's definitely some bits and pieces here that I can learn from and use in my own setup.
