What are Discontinuous Lines in cTrader.
What are Discontinuous Lines in cTrader.
19 May 2022, 15:56
hi,
Cannot figure out why these lines are not discontinuous.Or do i have a wrong understanding of discontinuous
using System;
using cAlgo.API;
using cAlgo.API.Internals;
using cAlgo.API.Indicators;
using cAlgo.Indicators;
namespace cAlgo
{
[Indicator(IsOverlay = true, TimeZone = TimeZones.UTC, AccessRights = AccessRights.None)]
public class TestDiscontinue : Indicator
{
[Output("Main1", PlotType = PlotType.DiscontinuousLine)]
public IndicatorDataSeries Result1 { get; set; }
[Output("Main2", PlotType = PlotType.DiscontinuousLine)]
public IndicatorDataSeries Result2 { get; set; }
int Switch = 1;
int PrevIndex = -1;
protected override void Initialize()
{
}
public override void Calculate(int index)
{
if(PrevIndex==index) return;
if(
((double)index)/3 == index/3 ||
((double)index)/4 == index/4
)
Switch *= -1;
if(Switch>0)
Result1[index] = Bars[index].High;
else
Result2[index] = Bars[index].High;
Print(index + "\t"+ Result1[index],"\t",Result2[index]);
PrevIndex=index;
}
}
}
Any Idea?
Replies
genappsforex
21 May 2022, 09:24
( Updated at: 23 May 2022, 12:21 )
RE: Discontinuous outputs
amusleh said:
Hi,
The lines are discontinuous:
Discontinuous outputs can have empty or NAN values, and those NAN values will not be displayed on the chart.
Well that was my understanding also.
So Why does my little progam above NOT generate discontinuous Lines?
@genappsforex
firemyst
22 May 2022, 13:36
RE: RE: Discontinuous outputs
genappsforex said:
amusleh said:
Hi,
The lines are discontinuous:
Discontinuous outputs can have empty or NAN values, and those NAN values will not be displayed on the chart.
Well that was my understanding also.
So Why does not my little progam above generate discontinuous Lines?
Because both
((double)index)/3 == index/3
is false and
((double)index)/4 == index/4
is false.
So it always has a value in Result1 and not Result2 because Switch is always > 0:
if(Switch>0) Result1[index] = Bars[index].High;
@firemyst
genappsforex
23 May 2022, 12:19
RE: RE: RE: Discontinuous outputs
firemyst said:
Because both
((double)index)/3 == index/3
is false and((double)index)/4 == index/4
is false.
So it always has a value in Result1 and not Result2 because Switch is always > 0:if(Switch>0) Result1[index] = Bars[index].High;
Sorry to tell you but you're wrong.
Just run the indicator code i've posted and see for yourself.
@genappsforex
firemyst
23 May 2022, 12:42
( Updated at: 24 May 2022, 03:36 )
RE: RE: RE: RE: Discontinuous outputs
genappsforex said:
firemyst said:
Because both
((double)index)/3 == index/3
is false and((double)index)/4 == index/4
is false.
So it always has a value in Result1 and not Result2 because Switch is always > 0:if(Switch>0) Result1[index] = Bars[index].High;Sorry to tell you but you're wrong.
Just run the indicator code i've posted and see for yourself.
Perhaps you have some Windows or .Net updates that haven't taken affect yet in cTrader? Reboot?
@firemyst
genappsforex
23 May 2022, 17:41
RE: RE: RE: RE: RE: Discontinuous outputs
@firemyst
My Last message to you about this!
Print statement
Print(
"index = " + index +" => " +
(((double)index)/3).ToString("F1") +" =?= "+
(index/3).ToString("F1") +" || " +
(((double)index)/4).ToString("F1") +" =?= "+
(index/4).ToString("F1") + " => " +
(((double)index)/3 == index/3 || ((double)index)/4 == index/4)
);
Output:
23/05/2022 14:38:33.156 | index = 0 => 0.0 =?= 0.0 || 0.0 =?= 0.0 => True
23/05/2022 14:38:33.156 | index = 1 => 0.3 =?= 0.0 || 0.3 =?= 0.0 => False
23/05/2022 14:38:33.156 | index = 2 => 0.7 =?= 0.0 || 0.5 =?= 0.0 => False
23/05/2022 14:38:33.156 | index = 3 => 1.0 =?= 1.0 || 0.8 =?= 0.0 => True
23/05/2022 14:38:33.156 | index = 4 => 1.3 =?= 1.0 || 1.0 =?= 1.0 => True
23/05/2022 14:38:33.156 | index = 5 => 1.7 =?= 1.0 || 1.3 =?= 1.0 => False
23/05/2022 14:38:33.156 | index = 6 => 2.0 =?= 2.0 || 1.5 =?= 1.0 => True
23/05/2022 14:38:33.156 | index = 7 => 2.3 =?= 2.0 || 1.8 =?= 1.0 => False
23/05/2022 14:38:33.156 | index = 8 => 2.7 =?= 2.0 || 2.0 =?= 2.0 => True
23/05/2022 14:38:33.156 | index = 9 => 3.0 =?= 3.0 || 2.3 =?= 2.0 => True
So please next time do not answer without beign 100% sure when you're rebuttled. but try the provided indicator code first. If you did you'd seen you were wrong!
@genappsforex
genappsforex
23 May 2022, 17:47
problem solved bij reinstalling cTrader
amusleh said:
Hi,
The lines are discontinuous:
After closing all copies of cTrader and reinstalling cTrader it It now gives the discontinuous lines as it should.
@genappsforex
amusleh
24 May 2022, 10:14
RE: problem solved bij reinstalling cTrader
genappsforex said:
amusleh said:
Hi,
The lines are discontinuous:
After closing all copies of cTrader and reinstalling cTrader it It now gives the discontinuous lines as it should.
Hi,

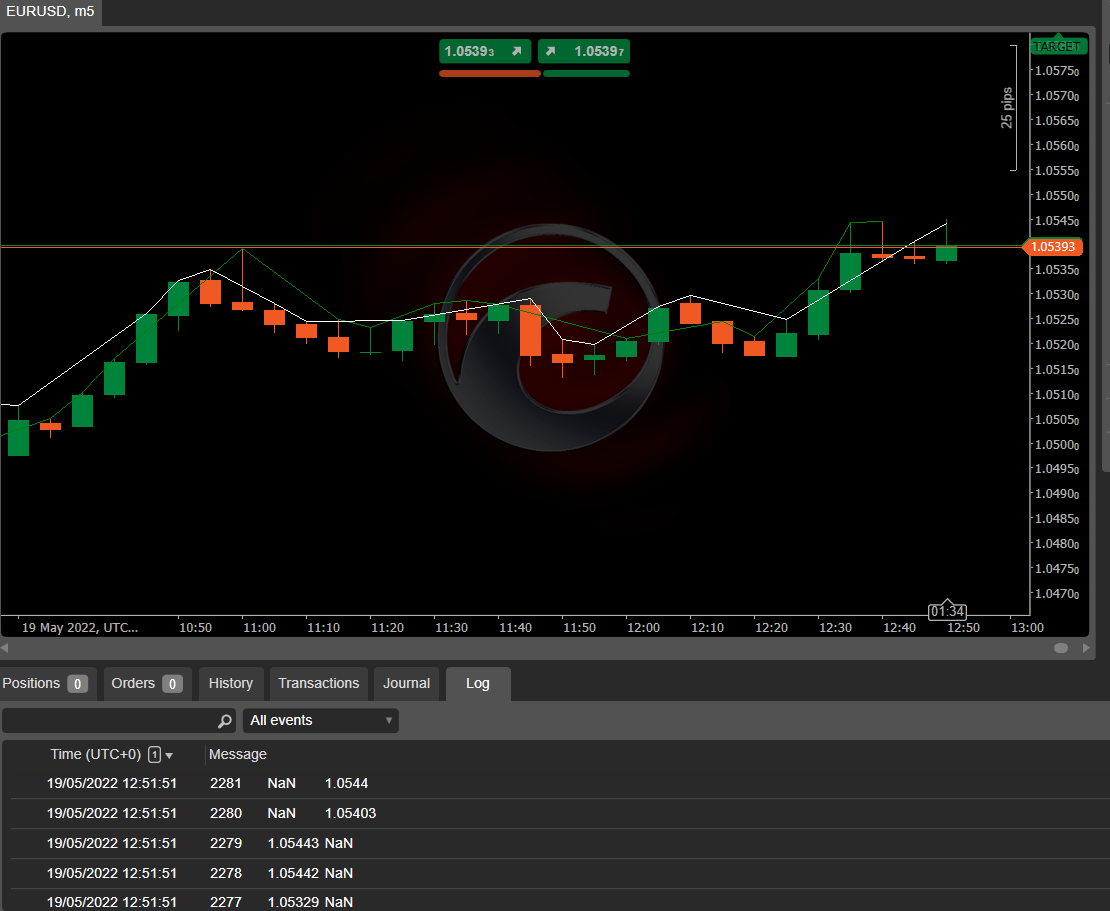

The image I posted is from your own indicator and as you can see it was working fine on my system.
@amusleh
amusleh
20 May 2022, 10:20 ( Updated at: 21 Dec 2023, 09:22 )
Hi,
The lines are discontinuous:
Discontinuous outputs can have empty or NAN values, and those NAN values will not be displayed on the chart.
@amusleh
