Board with information for all running cbots

PanagiotisCharalampous
16 Mar 2021, 15:21

Hi WienAT,

II believe it would be possible to built a "monitoring" cBot that would gather all this information and display it to you.

Best Regards,

Panagiotis

Join us on Telegram

WienAT
17 Mar 2021, 04:24

RE:

PanagiotisCharalampous said:

Hi WienAT,

II believe it would be possible to built a "monitoring" cBot that would gather all this information and display it to you.

Best Regards,

Panagiotis

Join us on Telegram

Tnx PanagiotisCharalampous!

I found solution :)

Do you know how can I add some background color on text written with DrawStaticText?

PanagiotisCharalampous
17 Mar 2021, 08:37

Hi WienAT,

It is not possible. You can use a TextBox instead.

Best Regards,

Panagiotis

Join us on Telegram

WienAT
17 Mar 2021, 11:54 ( Updated at: 21 Dec 2023, 09:22 )

RE:

PanagiotisCharalampous said:

Hi WienAT,

It is not possible. You can use a TextBox instead.

Best Regards,

Panagiotis

Join us on Telegram

tnx. works fine.

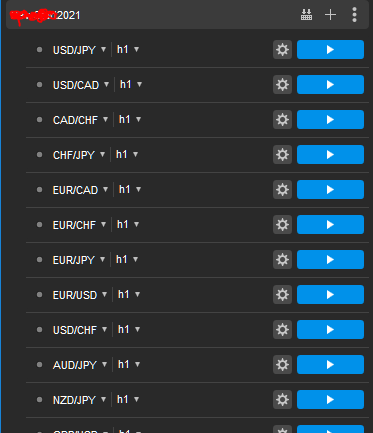

Do you have any idea how can i fix space between text .. if you see picture below I marked it with blue color - in that part you see that | is not on the same level in new line ... on the eyes it doesnt looks good :)

Is there any option how can i fix this?

PanagiotisCharalampous
17 Mar 2021, 12:11

Hi WienAT,

In this case you might need to consider a more complicated layout, like a grid with text blocks.

Best Regards,

Panagiotis

Join us on Telegram

WienAT
17 Mar 2021, 14:19 ( Updated at: 21 Dec 2023, 09:22 )

RE:

ok i will try that.

I am using textblock  like following:

private void PositionsTrack(PositionClosedEventArgs args)
{

  var position = args.Position;
  AccomulatedGrossProfit += position.GrossProfit;

 if (AccomulatedGrossProfit > 0)
            {
                var text = new TextBlock
                {
                    BackgroundColor = Color.Green,
                    ForegroundColor = Color.White,
                    Text = "....",
                    Padding = "8 4",
                    VerticalAlignment = VerticalAlignment.Bottom,
                    HorizontalAlignment = HorizontalAlignment.Left,
                    Margin = 5
                };
                Chart.RemoveControl(text);
                Chart.AddControl(text);
            }
            else
            {
                var text = new TextBlock
                {
                    BackgroundColor = Color.Red,
                    ForegroundColor = Color.White,
                    Text = "...",
                    Padding = "8 4",
                    VerticalAlignment = VerticalAlignment.Bottom,
                    HorizontalAlignment = HorizontalAlignment.Left,
                    Margin = 5
                };
                Chart.RemoveControl(text);
                Chart.AddControl(text);
            }

}

I am not sure why previous texblock is not removed? You can see red textblock in background - I am doing something wrong? After some time doing like that my cTrader suite is frozen :/ Probably too much TextBlock - how to keep it always as one?

PanagiotisCharalampous
17 Mar 2021, 15:50

Hi WienAT,

Because you do not remove it anywhere. You only remove the newly created text block, which has not been added yet.

Best Regards,

Panagiotis

Join us on Telegram

WienAT
17 Mar 2021, 17:08

if i put "Chart.RemoveControl(text)" before definition of textblock, then visual studio shows me some errors ... something like text is not known...

Can you pls adice how i can find already created TextBlock and how i should delete it

WienAT
18 Mar 2021, 01:21

I think my problem was that I used above code in PositionClosedEventArgs. This was run very often and probably caused multiple layers of TextBlock.

Anyhow, now I am using textblock in combination with grid.

I created grid and textblock which runs ONLY once OnStart- What i need to do that value of "SymbolWinRatio[2]" is updated in TextBlock in "SymbolWinRatio3" and consequently we will see also updated value in GRID  - value should be updated after values is changed in "PositionsTrack"

             protected override void OnStart()
             {
              Positions.Closed += PositionsTrack;


               var SymbolWinRation3 = new TextBlock
                {
                    BackgroundColor = Color.Green,
                    Text = "Symbol WinRatio " + SymbolWinRatio[2] + " % "
                };


              // Creating GRID (rows, columns)
                var grid = new Grid(40, 40)
                {
                   // BackgroundColor = Color.LightGray,
                    ShowGridLines = false
                };

                grid.Columns[0].SetWidthInStars(6);

                grid.AddChild(SymbolWinRation3, 28, 1);

                Chart.AddControl(grid);
              }


         private void PositionsTrack(PositionClosedEventArgs args)
         {
        SymbolWinRatio[i] = Math.Round(WinnerTrades[i] / (WinnerTrades[i] + LosserTrades[i]) * 100, 0);
         }

what i need to do that some values in grid will be automatically changed  - i update values automatically in PositionClosedEventArgs.

amusleh
18 Mar 2021, 10:54

RE:

WienAT said:

I think my problem was that I used above code in PositionClosedEventArgs. This was run very often and probably caused multiple layers of TextBlock.

Anyhow, now I am using textblock in combination with grid.

I created grid and textblock which runs ONLY once OnStart- What i need to do that value of "SymbolWinRatio[2]" is updated in TextBlock in "SymbolWinRatio3" and consequently we will see also updated value in GRID  - value should be updated after values is changed in "PositionsTrack"

             protected override void OnStart()
             {
              Positions.Closed += PositionsTrack;


               var SymbolWinRation3 = new TextBlock
                {
                    BackgroundColor = Color.Green,
                    Text = "Symbol WinRatio " + SymbolWinRatio[2] + " % "
                };


              // Creating GRID (rows, columns)
                var grid = new Grid(40, 40)
                {
                   // BackgroundColor = Color.LightGray,
                    ShowGridLines = false
                };

                grid.Columns[0].SetWidthInStars(6);

                grid.AddChild(SymbolWinRation3, 28, 1);

                Chart.AddControl(grid);
              }


         private void PositionsTrack(PositionClosedEventArgs args)
         {
        SymbolWinRatio[i] = Math.Round(WinnerTrades[i] / (WinnerTrades[i] + LosserTrades[i]) * 100, 0);
         }







what i need to do that some values in grid will be automatically changed  - i update values automatically in PositionClosedEventArgs.

Hi,

You have to move your text block declaration out of OnStart method, so you will be able to access it from other methods:

        private TextBlock _symbolWinRation3;

        protected override void OnStart()
        {
              Positions.Closed += PositionsTrack;


               _symbolWinRation3 = new TextBlock
                {
                    BackgroundColor = Color.Green,
                    Text = "Symbol WinRatio " + SymbolWinRatio[2] + " % "
                };


              // Creating GRID (rows, columns)
                var grid = new Grid(40, 40)
                {
                   // BackgroundColor = Color.LightGray,
                    ShowGridLines = false
                };

                grid.Columns[0].SetWidthInStars(6);

                grid.AddChild(SymbolWinRation3, 28, 1);

                Chart.AddControl(grid);
         }


         private void PositionsTrack(PositionClosedEventArgs args)
         {
            SymbolWinRatio[i] = Math.Round(WinnerTrades[i] / (WinnerTrades[i] + LosserTrades[i]) * 100, 0);

            _symbolWinRation3.Text = "Symbol WinRatio " + SymbolWinRatio[3] + " % ";
         }
